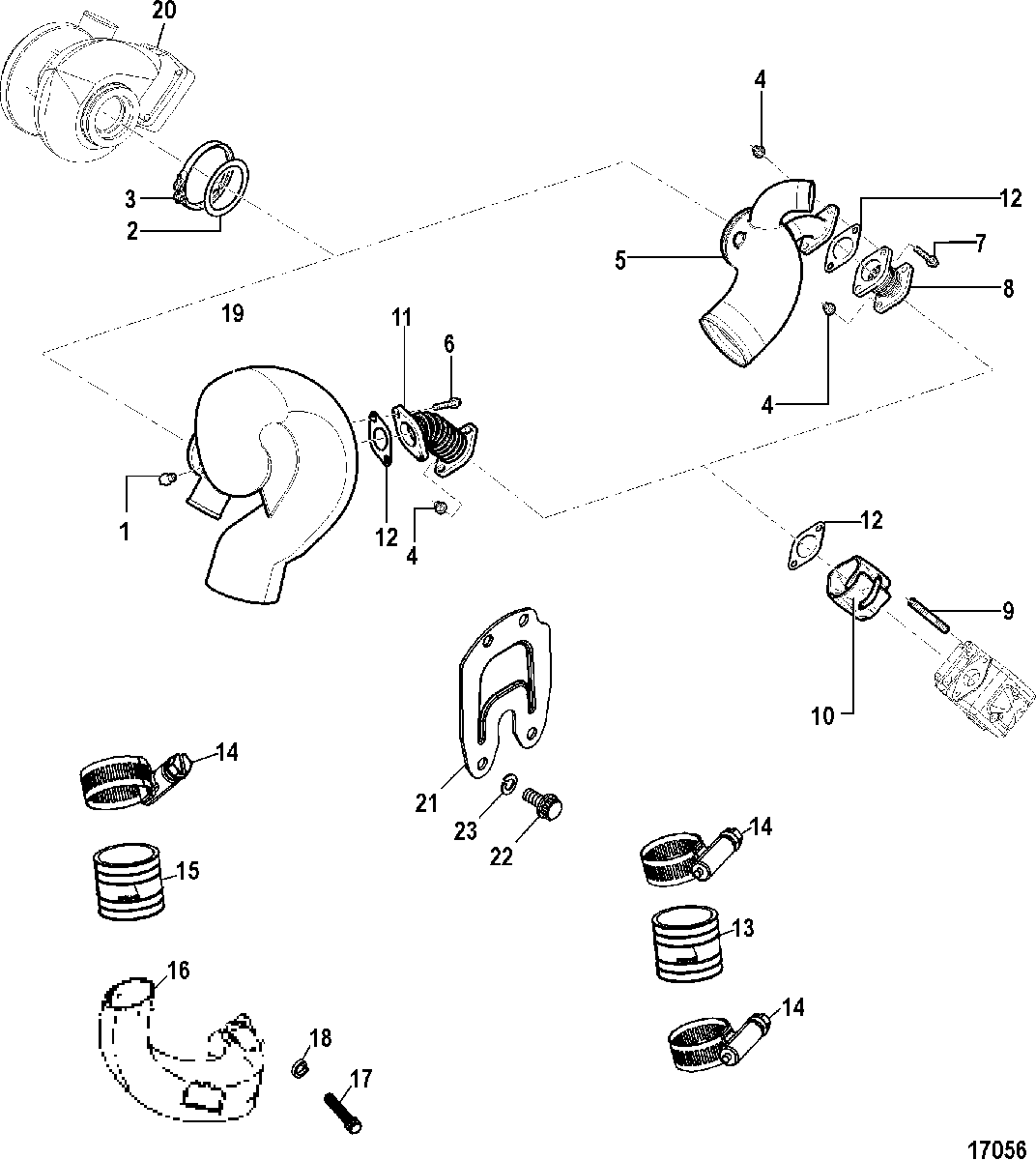

Turbocharger and Exhaust Elbow для Mercruiser - CMD 4.2 EI 270 88060001 THRU 88070000

  • №
    Артикул
    Название
  • 1
    896332097 PLUG
    PLUG
  • 2
    27-817089 GASKET
    GASKET
  • 3
    54-864148A01 CLAMP, Exhaust
    CLAMP, Exhaust
  • 4
    11-854037 NUT, (M8)
    NUT, (M8)
  • 5
    8M0086902 ELBOW, 65 Degree
    (INBOARD)
    ELBOW, 65 Degree
    (INBOARD)
  • 5
    803609001 ELBOW, 33 Degree
    (INBOARD)
    ELBOW, 33 Degree
    (INBOARD)
  • 6
    10-898101555 SCREW
    (INBOARD)
    SCREW
    (INBOARD)
  • 7
    10-898101556 SCREW
    (STERNDRIVE)
    SCREW
    (STERNDRIVE)
  • 8
    879172157 FLEX TUBE
    (INBOARD)
    FLEX TUBE
    (INBOARD)
  • 9
    16-898101517 STUD, (M8 x 20)
    STUD, (M8 x 20)
  • 10
    855483 BLANKET
    (INBOARD)
    BLANKET
    (INBOARD)
  • 10
    855483 BLANKET
    (STERNDRIVE)
    BLANKET
    (STERNDRIVE)
  • 11
    898101448 TUBE, Flex
    (STERNDRIVE)
    TUBE, Flex
    (STERNDRIVE)
  • 12
    27-879721 GASKET
    GASKET
  • 13
    32-860602 TUBE, Exhaust
    (INBOARD)
    TUBE, Exhaust
    (INBOARD)
  • 14
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 15
    32-44348001 TUBE, Exhaust, Rubber
    (STERNDRIVE)
    TUBE, Exhaust, Rubber
    (STERNDRIVE)
  • 16
    805013T1 PIPE, Exhaust
    (STERNDRIVE)
    PIPE, Exhaust
    (STERNDRIVE)
  • 17
    10-8M0113174 SCREW, (.375-16 x 1.25)
    (STERNDRIVE)
    SCREW, (.375-16 x 1.25)
    (STERNDRIVE)
  • 18
    13-41471 LOCKWASHER, (.375)
    (STERNDRIVE)
    LOCKWASHER, (.375)
    (STERNDRIVE)
  • 19
    805265A1 ELBOW
    (STERNDRIVE)
    ELBOW
    (STERNDRIVE)
  • 20
    8M0098619 TURBOCHARGER
    TURBOCHARGER
  • 21
    861776A2 PLATE KIT
    PLATE KIT
  • 22
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 23
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
