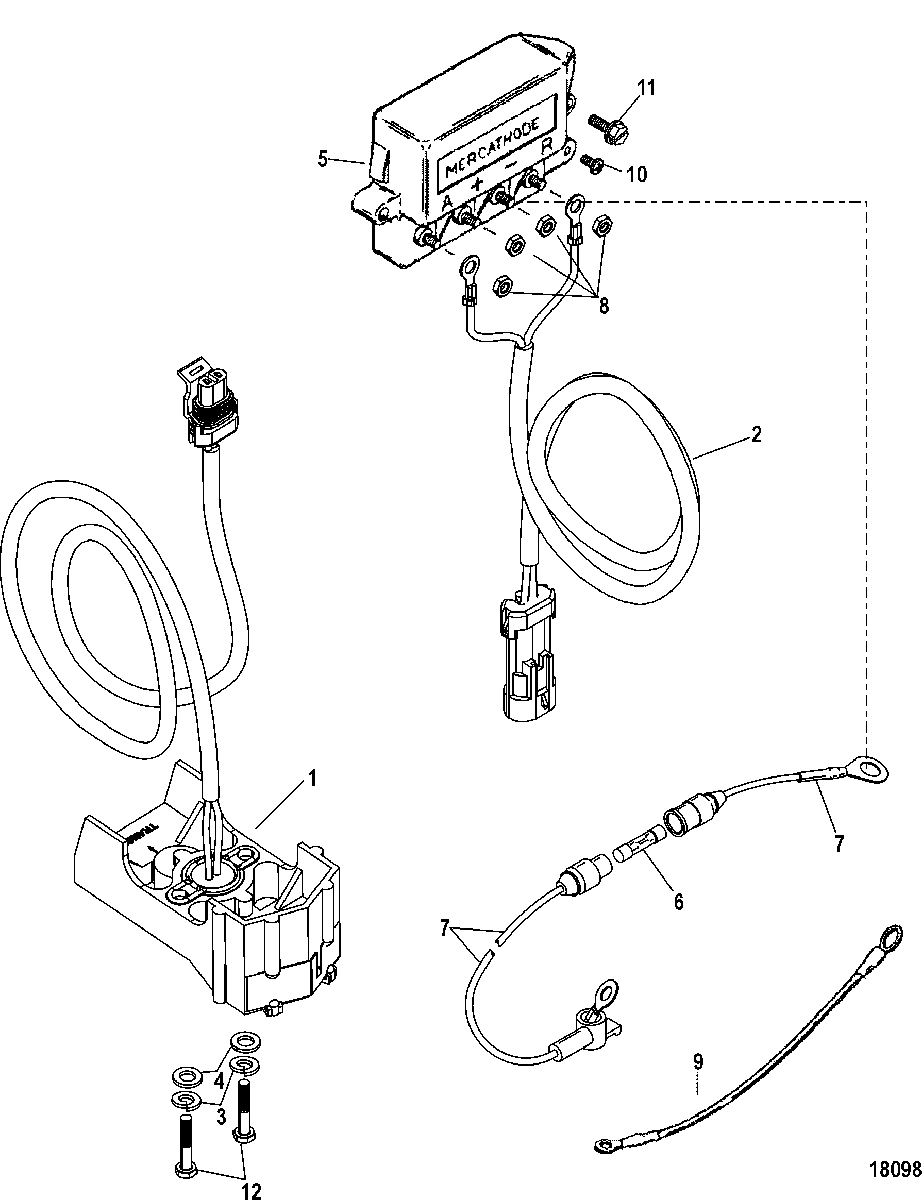

Mercathode Components для Mercruiser - CMD 4.2 EI 270 88060001 THRU 88070000

  • №
    Артикул
    Название
  • 1
    8M0085692 ELECTRODE ASSEMBLY
    (With Quick Connectors)
    ELECTRODE ASSEMBLY
    (With Quick Connectors)
  • 2
    84-865181T01 HARNESS ASSEMBLY, Mercathode
    HARNESS ASSEMBLY, Mercathode
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 5
    42600A09 MERCATHODE ASSEMBLY
    MERCATHODE ASSEMBLY
  • 6
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 7
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
  • 7
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    CABLE ASSEMBLY, (5.00 Inches) Red
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    84-88543A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 10
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 11
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 12
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
