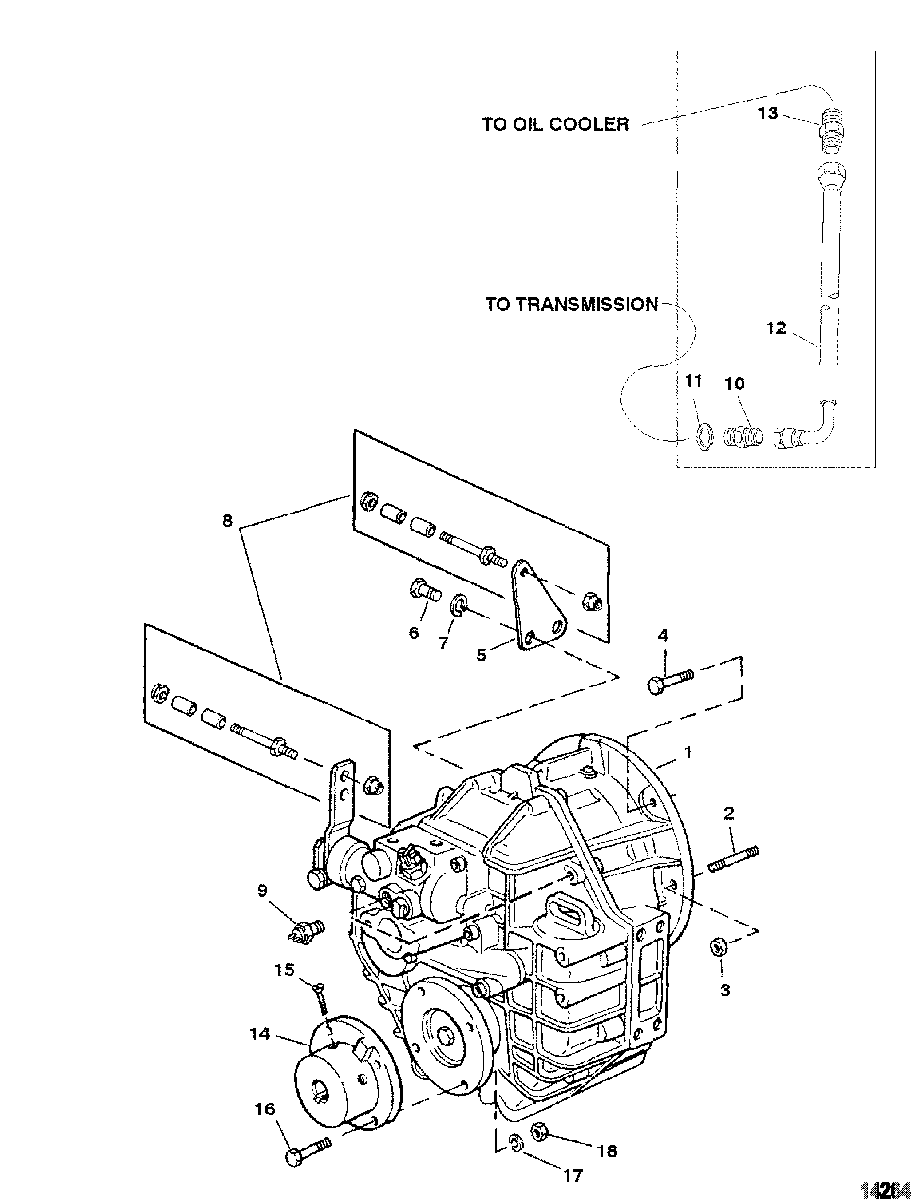

Transmission And Related Parts(Inboard) для Mercruiser - CMD 2.8 ES 165 88005001 THRU 88005167

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION, (1.5:1 Ratio)
    (Down Angle)
    TRANSMISSION, (1.5:1 Ratio)
    (Down Angle)
  • 1
    863744T3 TRANSMISSION, (2.0:1 Ratio)
    (Down Angle)
    TRANSMISSION, (2.0:1 Ratio)
    (Down Angle)
  • 1
    863744T4 TRANSMISSION, (2.50:1 Ratio)
    (Down Angle)
    TRANSMISSION, (2.50:1 Ratio)
    (Down Angle)
  • 1
    863745T2 TRANSMISSION, (1.5:1 Ratio)
    (V-Drive)
    TRANSMISSION, (1.5:1 Ratio)
    (V-Drive)
  • 1
    863745T3 TRANSMISSION, (2.0:1 Ratio)
    (V-Drive)
    TRANSMISSION, (2.0:1 Ratio)
    (V-Drive)
  • 1
    863745T4 TRANSMISSION, (2.5:1 Ratio)
    (V-Drive)
    TRANSMISSION, (2.5:1 Ratio)
    (V-Drive)
  • 2
    16-910002 STUD
    STUD
  • 3
    NLA No Longer Available, Nut
    (Refer To Note 1)
    No Longer Available, Nut
    (Refer To Note 1)
  • 4
    NLA No Longer Available, Screw
    (Refer To Note 1)
    No Longer Available, Screw
    (Refer To Note 1)
  • 5
    806238 BRACKET
    BRACKET
  • 6
    10-809919969 SCREW
    SCREW
  • 7
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 8
    16-97477A3 STUD KIT
    STUD KIT
  • 9
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 10
    22-855517 ELBOW, Transmission
    ELBOW, Transmission
  • 11
    12-855516 WASHER
    WASHER
  • 12
    32-855518 HOSE, Oil (85 cm)
    HOSE, Oil (85 cm)
  • 12
    32-855519 HOSE, Oil (93 cm)
    HOSE, Oil (93 cm)
  • 13
    22-803174 ELBOW, Transimssion Oil Cooler
    ELBOW, Transimssion Oil Cooler
  • 14
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 14
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 14
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 14
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 14
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 15
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 15
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 16
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 17
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 18
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • -
    877523 VALVE
    VALVE
