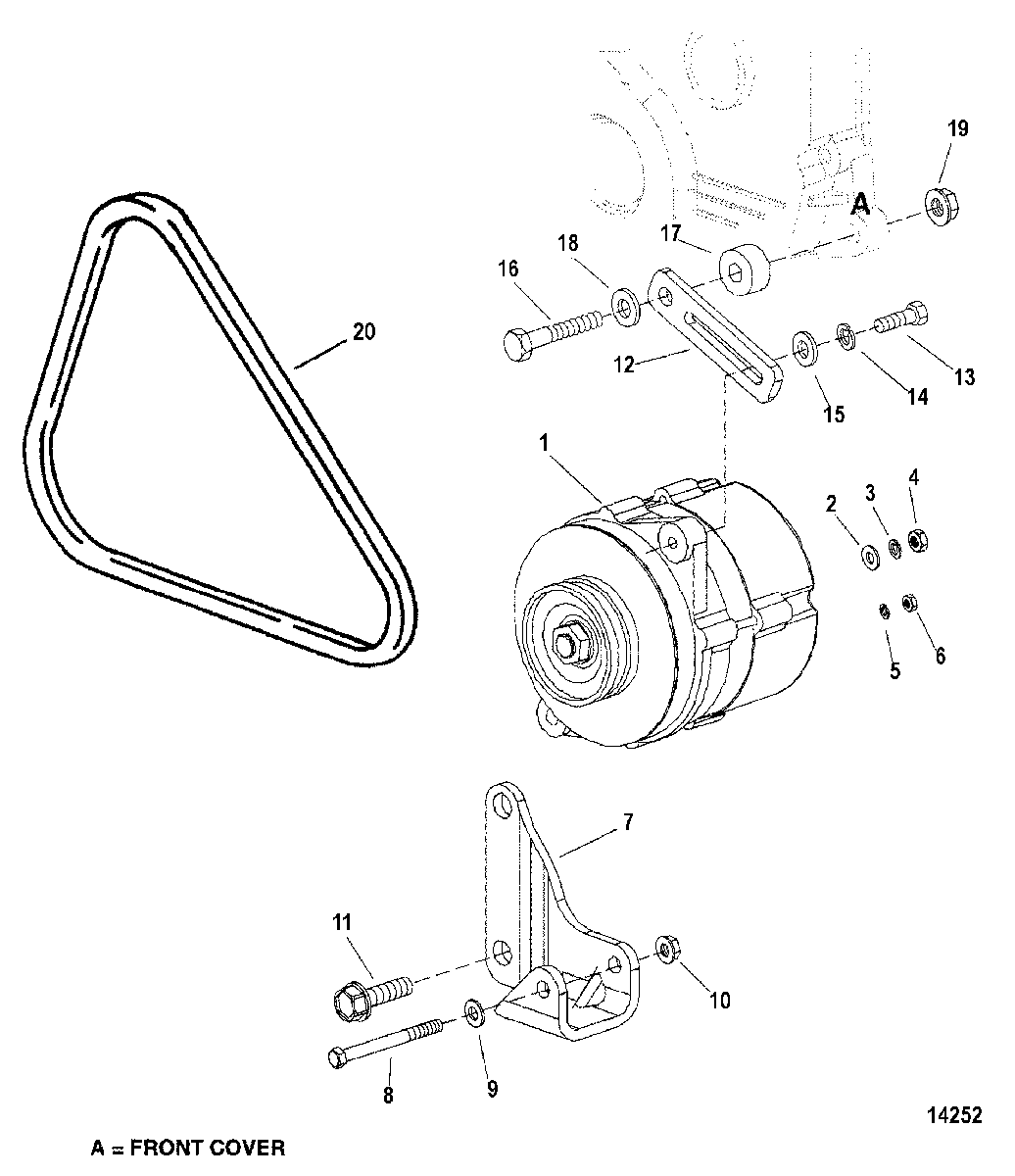

Alternator And Mounting Hardware для Mercruiser - CMD 2.8 ES 165 88005001 THRU 88005167

  • №
    Артикул
    Название
  • 1
    805884T ALTERNATOR
    ALTERNATOR
  • 2
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 4
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 5
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 6
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 7
    806979T BRACKET, Alternator
    BRACKET, Alternator
  • 8
    10-68299 SCREW, (M8)
    SCREW, (M8)
  • 9
    13-811460 LOCKWASHER
    LOCKWASHER
  • 10
    11-854184 NUT, (M8)
    NUT, (M8)
  • 11
    10-879148012 SCREW, (M14 x 25)
    SCREW, (M14 x 25)
  • 12
    806980T BRACE
    BRACE
  • 13
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 14
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 15
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 16
    10-4000382 SCREW, (M10 x 60)
    SCREW, (M10 x 60)
  • 17
    23-807030 SPACER
    SPACER
  • 18
    12-879194232 WASHER
    WASHER
  • 19
    11-4013610 NUT, (M10) Stainless Steel
    NUT, (M10) Stainless Steel
  • 20
    57-64032Q1 V BELT
    V BELT
