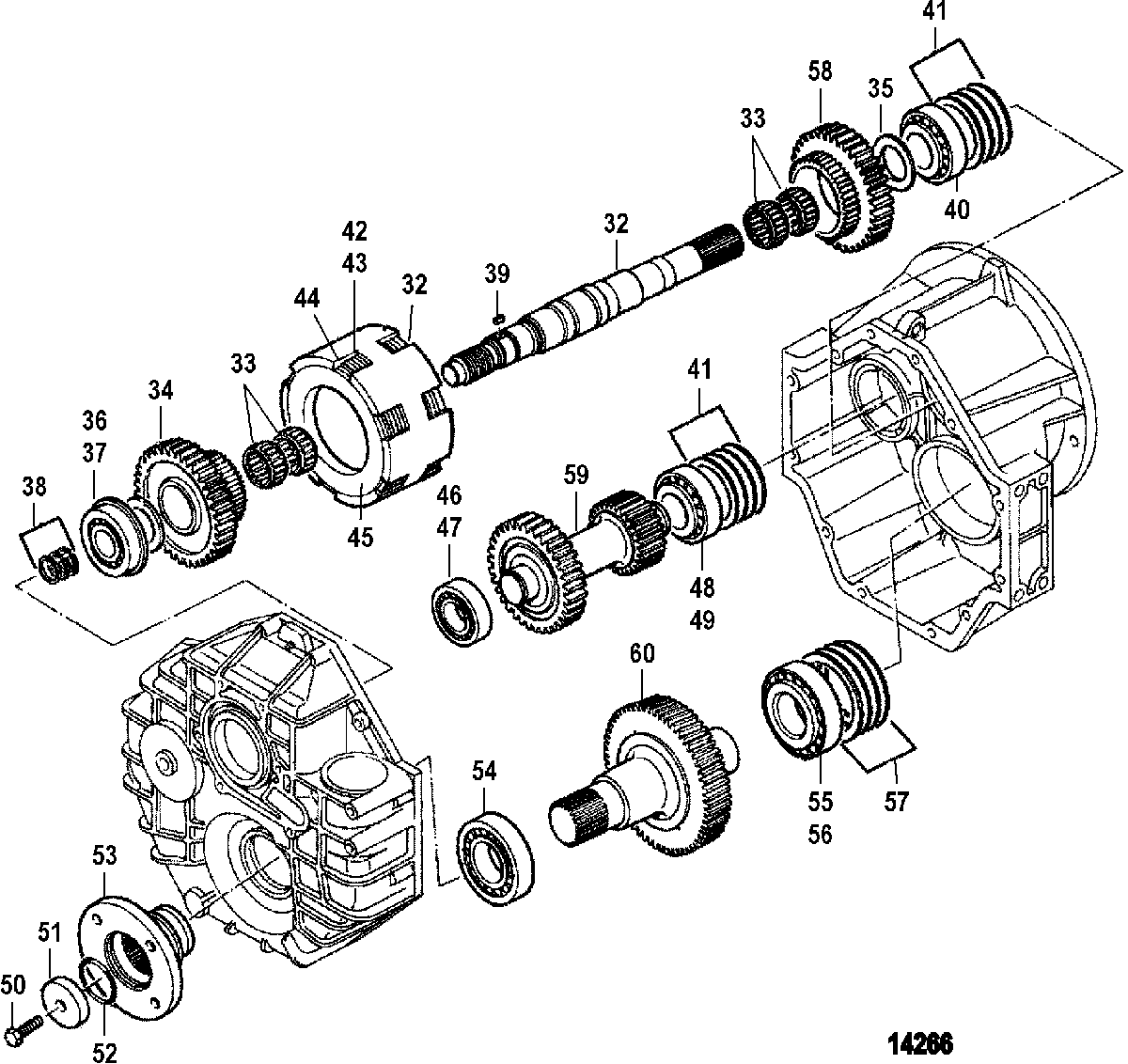

Transmission(Down Angle) (Inboard) для Mercruiser - CMD 2.8 EI 165 88005001 THRU 88005167

  • №
    Артикул
    Название
  • -
    863744T2 TRANSMISSION, (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio)
  • -
    863744T3 TRANSMISSION, (2.0:1 Ratio)
    TRANSMISSION, (2.0:1 Ratio)
  • -
    863744T4 TRANSMISSION, (2.50:1 Ratio)
    TRANSMISSION, (2.50:1 Ratio)
  • 32
    NLA No Longer Available, Shaft, Input
    (Refer To Note 1)
    No Longer Available, Shaft, Input
    (Refer To Note 1)
  • 33
    NLA No Longer Available, Bearing Roller
    (Refer To Note 1)
    No Longer Available, Bearing Roller
    (Refer To Note 1)
  • 34
    NLA No Longer Available, Gear
    (Refer To Note 1)
    No Longer Available, Gear
    (Refer To Note 1)
  • 35
    NLA No Longer Available, Washer
    (Refer To Note 1)
    No Longer Available, Washer
    (Refer To Note 1)
  • 36
    31-852066 BEARING, Tapered Roller, Inner
    BEARING, Tapered Roller, Inner
  • 37
    28-853066 KEY, Outer
    KEY, Outer
  • 38
    53-813312 RING, Snap
    RING, Snap
  • 39
    NLA No Longer Available, Key
    (Refer To Note 1)
    No Longer Available, Key
    (Refer To Note 1)
  • 40
    30-813314 BEARING, Ball
    BEARING, Ball
  • 41
    NLA No Longer Available, Shim
    (.10mm)
    No Longer Available, Shim
    (.10mm)
  • 41
    15-813316 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 41
    15-813317 SHIM, (.20 mm)
    SHIM, (.20 mm)
  • 41
    15-813318 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 42
    813319 DISC, Clutch, Inner
    DISC, Clutch, Inner
  • 43
    813320 DISC, Clutch, Outer
    DISC, Clutch, Outer
  • 44
    53-813321 RING, Snap
    RING, Snap
  • 45
    NLA No Longer Available, Pressure Disc
    (Refer To Note 1)
    No Longer Available, Pressure Disc
    (Refer To Note 1)
  • 46
    NLA No Longer Available, Bearing, Tapered Roller, Inner
    (Refer To Note 1)
    No Longer Available, Bearing, Tapered Roller, Inner
    (Refer To Note 1)
  • 47
    NLA No Longer Available, Bearing, Tapered Roller, Outer
    (Refer To Note 1)
    No Longer Available, Bearing, Tapered Roller, Outer
    (Refer To Note 1)
  • 48
    NLA No Longer Available, Bearing, Tapered Roller, Inner
    (Refer To Note 1)
    No Longer Available, Bearing, Tapered Roller, Inner
    (Refer To Note 1)
  • 49
    NLA No Longer Available, Bearing, Tapered Roller, Outer
    (Refer To Note 1)
    No Longer Available, Bearing, Tapered Roller, Outer
    (Refer To Note 1)
  • 50
    NLA No Longer Available, Screw
    (Refer To Note 1)
    No Longer Available, Screw
    (Refer To Note 1)
  • 51
    NLA No Longer Available, Spacer
    (Refer To Note 1)
    No Longer Available, Spacer
    (Refer To Note 1)
  • 52
    NLA No Longer Available, O-Ring
    (Refer To Note 1)
    No Longer Available, O-Ring
    (Refer To Note 1)
  • 53
    NLA No Longer Available, Flange Output
    No Longer Available, Flange Output
  • 54
    NLA No Longer Available, Bearing Tapered Roller
    (Refer To Note 1)
    No Longer Available, Bearing Tapered Roller
    (Refer To Note 1)
  • 55
    NLA No Longer Available, Bearing Tapered Roller, Inner
    (Refer To Note 1)
    No Longer Available, Bearing Tapered Roller, Inner
    (Refer To Note 1)
  • 56
    NLA No Longer Available, Bearing Tapered Roller, Outer
    (Refer To Note 1)
    No Longer Available, Bearing Tapered Roller, Outer
    (Refer To Note 1)
  • 57
    15-813334 SHIM, (.10 mm)
    SHIM, (.10 mm)
  • 57
    15-813335 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 57
    15-813336 SHIM, (.30 mm)
    SHIM, (.30 mm)
  • 57
    15-813337 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 58
    NLA No Longer Available, Gear (1.5:1)
    (Refer To Note 1)
    No Longer Available, Gear (1.5:1)
    (Refer To Note 1)
  • 59
    NLA No Longer Available, Shaft Intermediate(1.5:1)
    (Refer To Note 1)
    No Longer Available, Shaft Intermediate(1.5:1)
    (Refer To Note 1)
  • 60
    NLA No Longer Available (1.5:1)
    (Refer To Note 1)
    No Longer Available (1.5:1)
    (Refer To Note 1)
  • 58
    NLA No Longer Available, Gear (2.0:1)
    (Refer To Note 1)
    No Longer Available, Gear (2.0:1)
    (Refer To Note 1)
  • 59
    NLA No Longer Available, Shaft Intermediate (2.0:1)
    (Refer To Note 1)
    No Longer Available, Shaft Intermediate (2.0:1)
    (Refer To Note 1)
  • 60
    NLA No Longer Available, Shaft Output (2.0:1)
    (Refer To Note 1)
    No Longer Available, Shaft Output (2.0:1)
    (Refer To Note 1)
  • 58
    NLA No Longer Available, Gear (2.5:1)
    (Refer To Note 1)
    No Longer Available, Gear (2.5:1)
    (Refer To Note 1)
  • 59
    NLA No Longer Available, Shaft Intermediate (2.5:1)
    (Refer To Note 1)
    No Longer Available, Shaft Intermediate (2.5:1)
    (Refer To Note 1)
  • 60
    NLA No Longer Available, Shaft Output 2.5:1)
    (Refer To Note 1)
    No Longer Available, Shaft Output 2.5:1)
    (Refer To Note 1)
