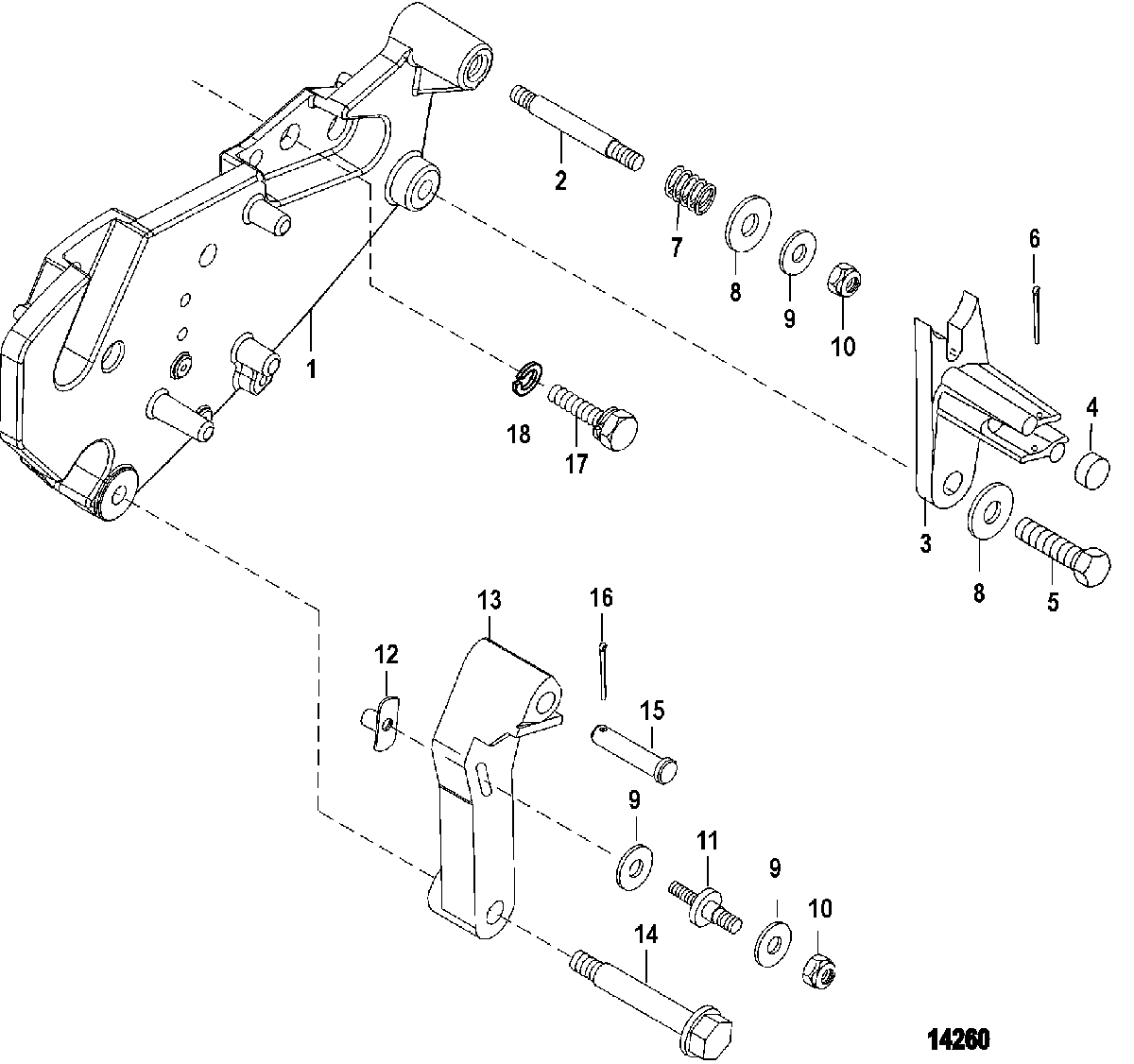

Shift Bracket для Mercruiser - CMD 2.8 EI 165 88005001 THRU 88005167

  • №
    Артикул
    Название
  • 1
    807962A15 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 2
    16-865154A02 STUD, (.250-20/.250-28 x 2.120)
    STUD, (.250-20/.250-28 x 2.120)
  • 3
    865434A02 RETAINER
    RETAINER
  • 4
    23-98828 SPACER
    SPACER
  • 5
    10-53167T SCREW, (.312-18 x .880)
    SCREW, (.312-18 x .880)
  • 6
    18-328571 COTTER PIN
    COTTER PIN
  • 7
    24-98880 SPRING
    SPRING
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 10
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 11
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 12
    11-63341 TEE NUT
    TEE NUT
  • 13
    863911A12 LEVER
    LEVER
  • 14
    10-865148 SCREW, (.312-18 x 1.843)
    SCREW, (.312-18 x 1.843)
  • 15
    17-68402 PIN, (.250 x 1.13)
    PIN, (.250 x 1.13)
  • 16
    18-210711 COTTER PIN
    COTTER PIN
  • 17
    10-898101555 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 18
    13-811460 LOCKWASHER
    LOCKWASHER
