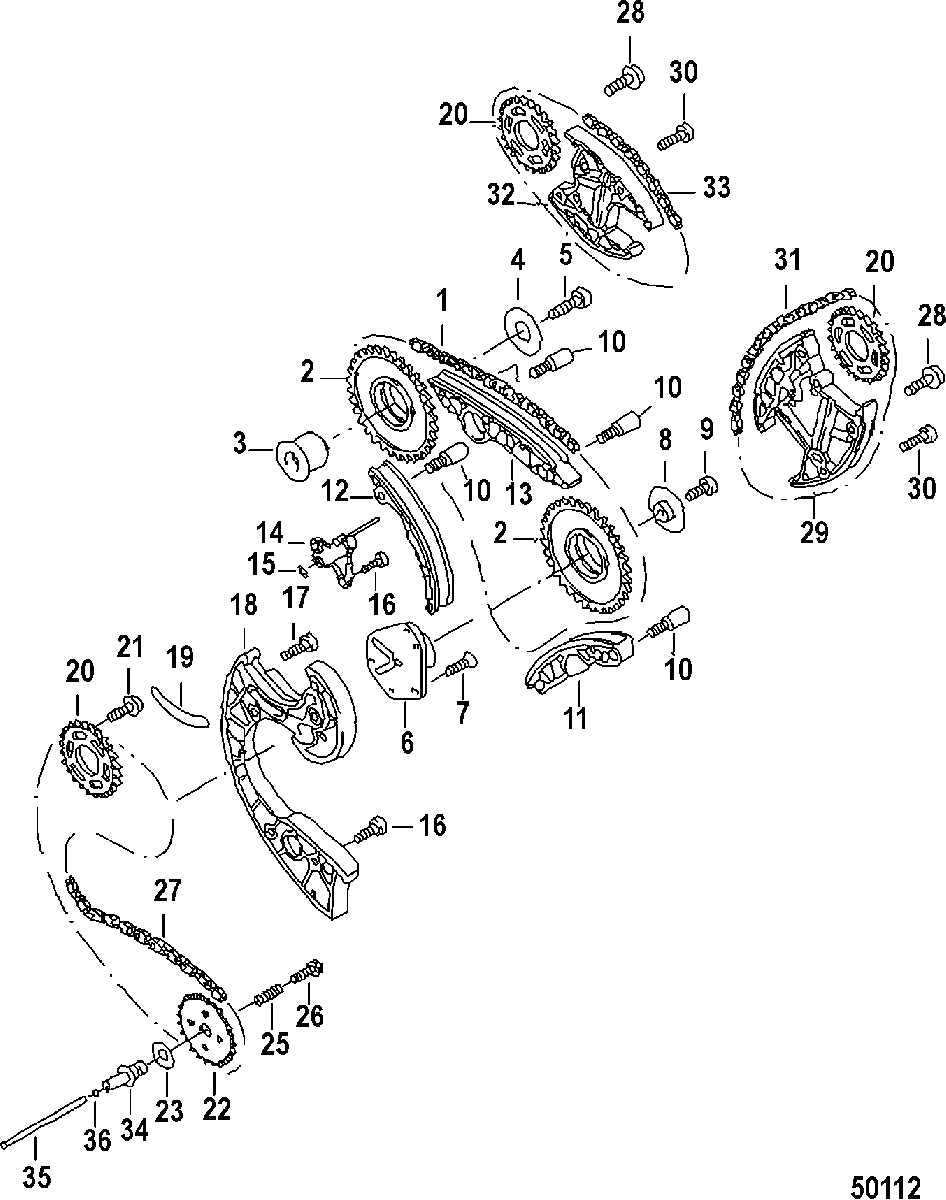

TIMING CHAIN AND SLIDE RAIL для Mercruiser - 3.0L TDI 230 IB ALL & Up
-
№АртикулНазвание
-
18M0066610 TIMING CHAIN, Center UpperTIMING CHAIN, Center Upper
-
243-8M0066594 GEAR , 19 ToothGEAR , 19 Tooth
-
38M0066461 PIN, BearingPIN, Bearing
-
423-8M0068568 THRUST WASHERTHRUST WASHER
-
510-8M0068369 SCREW , M10x40SCREW , M10x40
-
68M0066460 PIN, Bearing, LeftPIN, Bearing, Left
-
78M0068512 SCREW , M6x19SCREW , M6x19
-
823-8M0067482 THRUST WASHER, Center UpperTHRUST WASHER, Center Upper
-
98M0089369 SCREW, (M6x16)SCREW, (M6x16)
-
1010-8M0068569 SCREW , M6x35SCREW , M6x35
-
118M0066622 GUIDEGUIDE
-
128M0067487 GUIDE, Center UpperGUIDE, Center Upper
-
138M0066621 GUIDEGUIDE
-
148M0066620 TENSIONER CHAINTENSIONER CHAIN
-
1526-8M0068448 SEAL , 5x1.5SEAL , 5x1.5
-
1610-8M0068223 SCREW , M6x20SCREW , M6x20
-
1710-8M0068342 SCREW , M6x35SCREW , M6x35
-
188M0066625 TENSIONER CHAINTENSIONER CHAIN
-
1927-8M0055824 GASKET, Center LowerGASKET, Center Lower
-
2043-8M0066453 GEAR , 25 ToothGEAR , 25 Tooth
-
2110-8M0068233 SCREW , M6x30SCREW , M6x30
-
2243-8M0067490 GEAR , 25 ToothGEAR , 25 Tooth
-
2323-8M0066190 THRUST WASHERTHRUST WASHER
-
2524-8M0066623 SPRING, PressureSPRING, Pressure
-
2610-8M0068501 SCREW , M10x20SCREW , M10x20
-
278M0067245 TIMING CHAIN, Center LowerTIMING CHAIN, Center Lower
-
2810-8M0068543 SCREW , M8x12SCREW , M8x12
-
298M0066608 TENSIONER CHAIN, LeftTENSIONER CHAIN, Left
-
3010-8M0068233 SCREW , M6x30SCREW , M6x30
-
318M0066612 TIMING CHAINTIMING CHAIN
-
328M0066459 TENSIONER CHAIN, RightTENSIONER CHAIN, Right
-
338M0066611 TIMING CHAIN, RightTIMING CHAIN, Right
-
348M0066616 PROPSHAFTPROPSHAFT
-
358M0066633 PROPSHAFTPROPSHAFT
-
368M0068380 RING , SecuringRING , Securing
