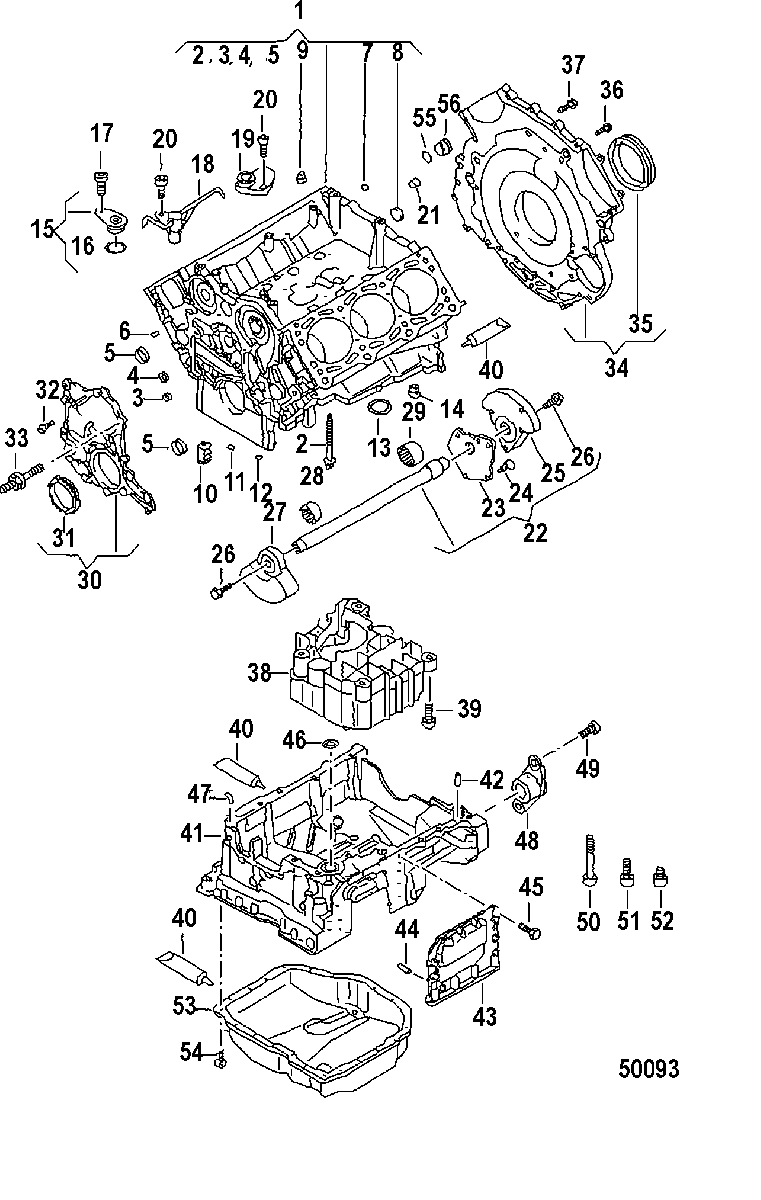

CYLINDER BLOCK, w/ Balance Shaft and Oil Sump для Mercruiser - 3.0L TDI 230 IB ALL & Up
-
№АртикулНазвание
-
186-8M0066527 CRANKCASECRANKCASE
-
210-8M0066528 SCREW , M11x112SCREW , M11x112
-
38M0089364 PLUGPLUG
-
419-8M0068105 PLUG, 18PLUG, 18
-
519-8M0068107 PLUG, 28PLUG, 28
-
68M0068370 PIN, 6x16PIN, 6x16
-
719-8M0068557 PLUG, 8PLUG, 8
-
819-8M0058178 PLUGPLUG
-
9NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
1027-8M0066411 GASKETGASKET
-
1126-8M0068415 SEAL , 7x2SEAL , 7x2
-
1226-8M0068418 SEAL , 11x2.5SEAL , 11x2.5
-
1325-8M0068141 O-RING, 18x22O-RING, 18x22
-
1422-8M0068169 PLUG , M18x1.50PLUG , M18x1.50
-
158M0066648 COVER PLATECOVER PLATE
-
1626-8M0068523 SEAL , 19.6x3SEAL , 19.6x3
-
1710-8M0068239 SCREW, M6x10SCREW, M6x10
-
188M0066535 OIL SPRAY JETOIL SPRAY JET
-
1921-8M0066568 CHECK VALVECHECK VALVE
-
2010-8M0068548 SCREW , M6x6x12SCREW , M6x6x12
-
218M0066410 SLEEVESLEEVE
-
228M0066543 BALANCE SHAFTBALANCE SHAFT
-
238M0066555 CAP, PlateCAP, Plate
-
248M0089370 SCREW, M6x25SCREW, M6x25
-
258M0066545 WEIGHT BALANCERWEIGHT BALANCER
-
2610-8M0068501 SCREW , M10x20SCREW , M10x20
-
278M0066546 WEIGHT BALANCERWEIGHT BALANCER
-
2831-8M0066569 BEARING, NEEDLE, 25mmBEARING, NEEDLE, 25mm
-
2931-8M0066570 BEARING, NEEDLE, 22mmBEARING, NEEDLE, 22mm
-
308M0067258 FLANGE, FrontFLANGE, Front
-
3126-8M0067474 SEAL, OilSEAL, Oil
-
3210-8M0068223 SCREW , M6x20SCREW , M6x20
-
3310-8M0068522 SCREW , M6x22/M6x12SCREW , M6x22/M6x12
-
348M0066537 FLANGE, RearFLANGE, Rear
-
3526-8M0067475 SEAL, OilSEAL, Oil
-
3610-8M0068234 SCREW , M6x30SCREW , M6x30
-
3710-8M0068255 SCREW , M8x32SCREW , M8x32
-
388M0088011 BAFFLE, OIL PANBAFFLE, OIL PAN
-
3910-8M0068310 SCREW , M6x25SCREW , M6x25
-
4092-8M0099608 SEALANT, 80 mlSEALANT, 80 ml
-
418M0067259 PANPAN
-
4217-8M0066404 PIN, SPRING, 6.2x22PIN, SPRING, 6.2x22
-
438M0067261 COVER PLATECOVER PLATE
-
448M0068370 PIN, 6x16PIN, 6x16
-
4510-8M0068223 SCREW , M6x20SCREW , M6x20
-
4627-8M0066563 SEALSEAL
-
4727-8M0066564 SEALSEAL
-
488M0066617 CARRIER PLATECARRIER PLATE
-
4910-8M0068486 SCREWSCREW
-
5010-8M0068223 SCREW , M6x20SCREW , M6x20
-
518M0068497 SCREW , M7x20SCREW , M7x20
-
5210-8M0068527 SCREW , M7x105x39SCREW , M7x105x39
-
538M0100291 PANPAN
-
5410-8M0068252 SCREW , M6x32SCREW , M6x32
-
5526-8M0066277 SEAL , 15x2.5SEAL , 15x2.5
-
5622-8M0066538 PLUGPLUG
-
-8M0067473 SENSORSENSOR
-
-10-8M0068245 SCREW , M6x18SCREW , M6x18
