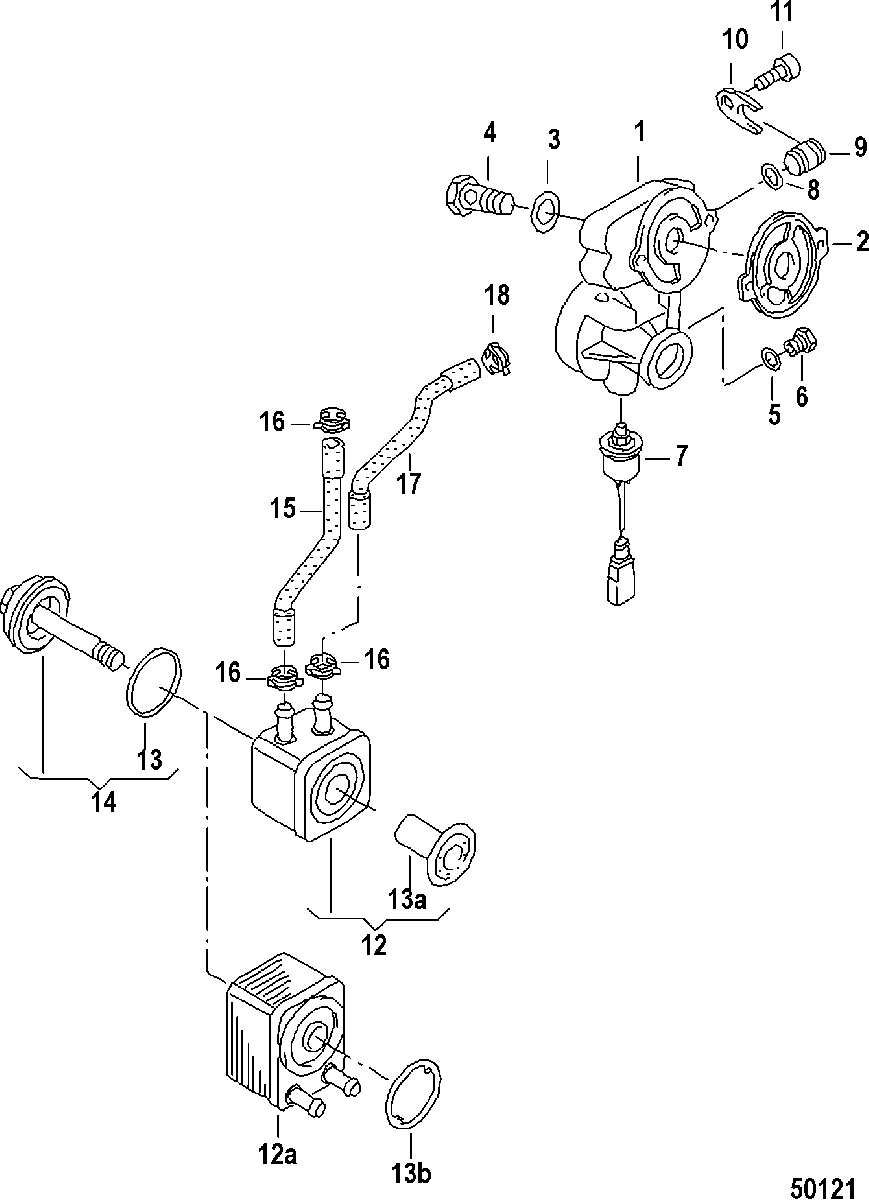

OIL COOLER для Mercruiser - 2.5L SDI 55 I5 BCT001003 & Up

  • №
    Артикул
    Название
  • 1
    8M0067072 BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 2
    27-8M0067419 GASKET
    GASKET
  • 3
    12-8M0068197 SEALING RING, 26x32
    SEALING RING, 26x32
  • 4
    22-8M0068575 SCREW , 12x2
    Non BTW
    SCREW , 12x2
    Non BTW
  • 4
    22-8M0068572 SCREW , 12x2
    165 TDI (BTW)
    SCREW , 12x2
    165 TDI (BTW)
  • 4
    22-8M0068573 PLUG , 1/8-27
    165 TDI (BTW)
    PLUG , 1/8-27
    165 TDI (BTW)
  • 5
    25-8M0068135 O-RING, 14x18
    O-RING, 14x18
  • 6
    22-8M0068166 PLUG , M14x1.5
    PLUG , M14x1.5
  • 7
    8M0067165 SENDER, PRESSURE, Oil
    SENDER, PRESSURE, Oil
  • 8
    25-8M0068502 O-RING, 11x2.5
    SDI Models
    O-RING, 11x2.5
    SDI Models
  • 9
    22-8M0067100 PLUG
    SDI Models
    PLUG
    SDI Models
  • 10
    8M0067079 CLAMP, TUBE
    SDI Models
    CLAMP, TUBE
    SDI Models
  • 11
    10-8M0068151 SCREW , M8x15
    SDI Models
    SCREW , M8x15
    SDI Models
  • 12
    8M0066228 COOLER
    Non BTW
    COOLER
    Non BTW
  • 12
    8M0066337 OIL COOLER
    165 TDI (BTW)
    OIL COOLER
    165 TDI (BTW)
  • 13
    25-8M0066230 SEAL O RING, 72.2x3.2, All but BTW
    Non BTW SN# June 2001 THRU June 2004
    SEAL O RING, 72.2x3.2, All but BTW
    Non BTW SN# June 2001 THRU June 2004
  • 13
    26-8M0066339 SEAL , 62.8mm
    Non BTW SN# June 2004 THRU Current
    SEAL , 62.8mm
    Non BTW SN# June 2004 THRU Current
  • 13A
    25-8M0066231 GASKET, 73mm
    Non BTW
    GASKET, 73mm
    Non BTW
  • 13B
    25-8M0066340 O-Ring
    165 TDI (BTW)
    O-Ring
    165 TDI (BTW)
  • 14
    8M0066338 COVER
    COVER
  • 15
    32-8M0066991 HOSE , Thermostat to Cooler
    Non BTW
    HOSE , Thermostat to Cooler
    Non BTW
  • 15
    32-8M0066993 HOSE , Thermostat to Cooler
    165 TDI (BTW)
    HOSE , Thermostat to Cooler
    165 TDI (BTW)
  • 16
    54-8M0068464 CLAMP, 23x12
    CLAMP, 23x12
  • 17
    32-8M0066990 HOSE , Cooler to Block
    Non BTW
    HOSE , Cooler to Block
    Non BTW
  • 17
    32-8M0066994 HOSE , Cooler to Block
    165 TDI (BTW)
    HOSE , Cooler to Block
    165 TDI (BTW)
  • 18
    54-8M0068504 CLAMP, 19x12
    CLAMP, 19x12
