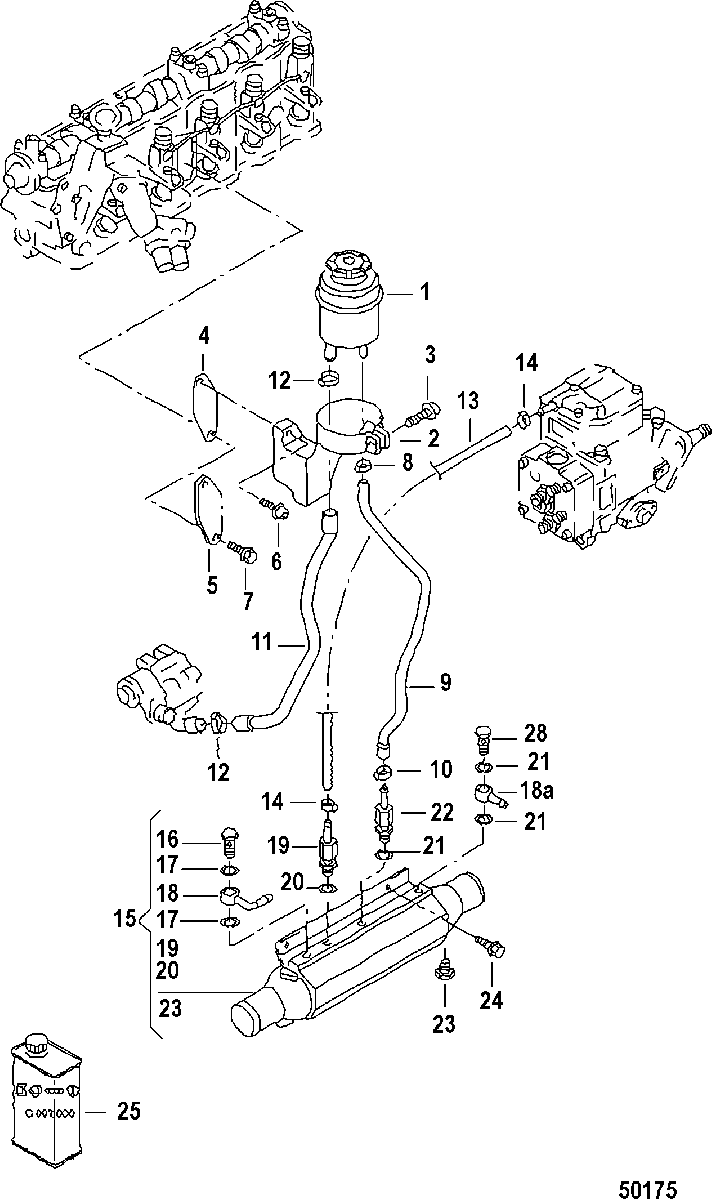

OIL CONTAINER COMPONENTS, TDI Models для Mercruiser - 2.5L SDI 55 I5 BCT001003 & Up
-
№АртикулНазвание
-
18M0067109 RESERVOIRRESERVOIR
-
28M0067111 BRACKETBRACKET
-
310-8M0068267 SCREW , M6x30SCREW , M6x30
-
427-8M0067458 GASKETGASKET
-
58M0067457 COVER PLATE
For: Engines w/out Hydraulic PumpCOVER PLATE
For: Engines w/out Hydraulic Pump -
610-8M0068555 SCREW , M8x30SCREW , M8x30
-
710-8M0068439 SCREW , M8x20
For: Engines w/out Hydraulic PumpSCREW , M8x20
For: Engines w/out Hydraulic Pump -
854-8M0068504 CLAMP, 19x12CLAMP, 19x12
-
932-8M0067016 HOSEHOSE
-
1054-8M0068482 CLAMP, 17x12CLAMP, 17x12
-
1132-8M0067017 HOSE
SN# 001 190 & BelowHOSE
SN# 001 190 & Below -
1132-8M0067018 HOSE
SN# 001 191 & UpHOSE
SN# 001 191 & Up -
1254-8M0068464 CLAMP, 23x12CLAMP, 23x12
-
1332-8M0067071 HOSEHOSE
-
1454-8M0068274 CLAMP, 12-22x9x0.4CLAMP, 12-22x9x0.4
-
158M0067085 COOLERCOOLER
-
1622-8M0068413 SCREW, M14x1.5SCREW, M14x1.5
-
1725-8M0068135 O-RING, 14x18O-RING, 14x18
-
1822-8M0067053 FITTINGFITTING
-
18A22-8M0067087 FITTINGFITTING
-
198M0067070 FITTING, ADAPTORFITTING, ADAPTOR
-
2025-8M0068129 O-RING, 12x15.5x2.5O-RING, 12x15.5x2.5
-
218M0089018 O-RING, 17x23O-RING, 17x23
-
228M0067034 FITTING, ADAPTORFITTING, ADAPTOR
-
2322-8M0067013 PLUGPLUG
-
2410-8M0068542 SCREW , M8x20SCREW , M8x20
-
2592-858075Q01 HYDRAULIC OIL, 1L, LilacHYDRAULIC OIL, 1L, Lilac
