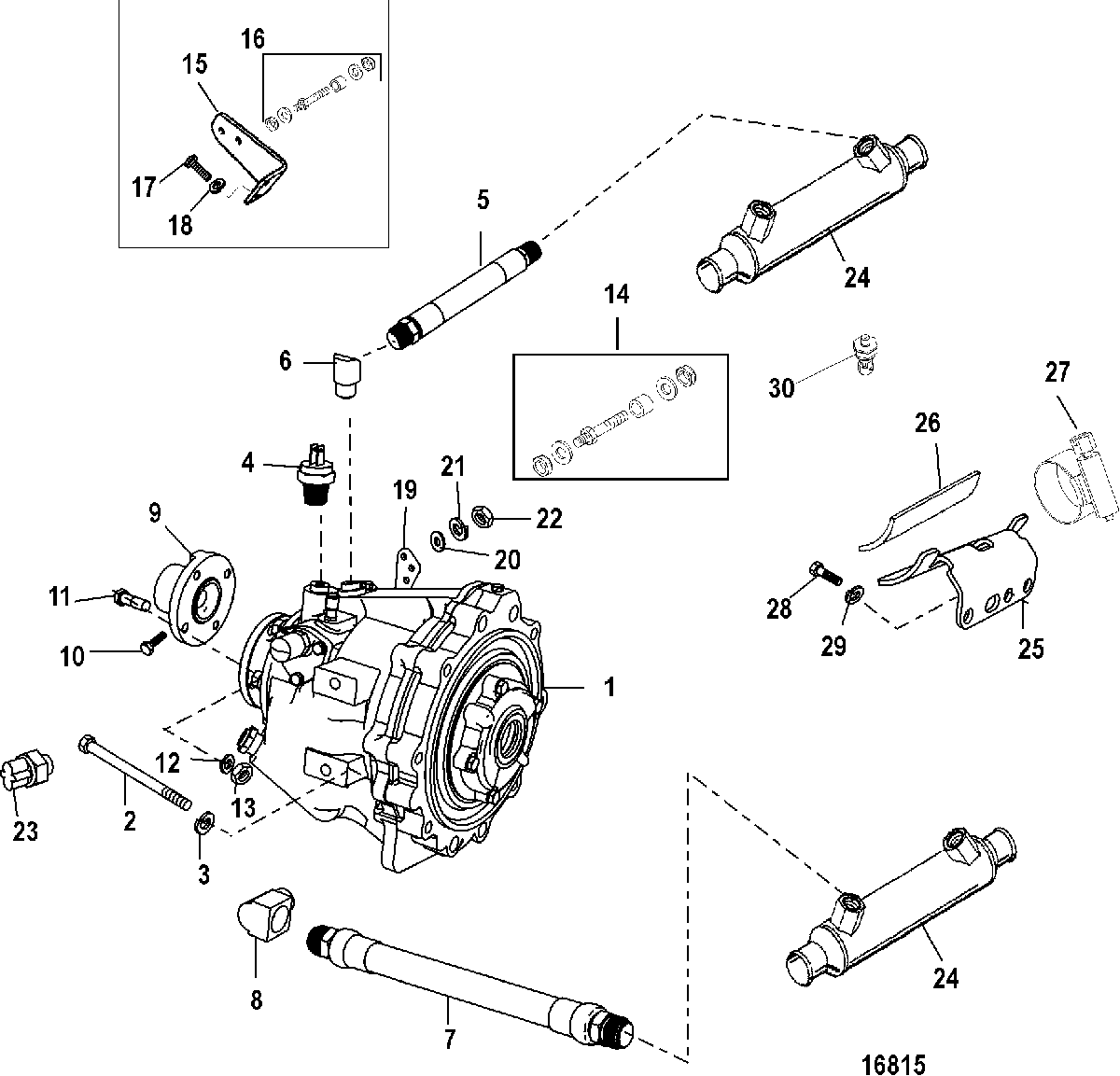

Transmission and Related Parts(Borg Warner 72) для Mercruiser - 8.1L INBOARD (H.O.) 0W691821 THRU 1A380318

  • №
    Артикул
    Название
  • 1
    47810A19 TRANSMISSION
    (1.1:1 Ratio)
    TRANSMISSION
    (1.1:1 Ratio)
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 5
    32-8054781 HOSE, (19.50)
    HOSE, (19.50)
  • 6
    22-63835 ELBOW, 45 Degree (45 Degree)
    ELBOW, 45 Degree (45 Degree)
  • 7
    32-475166 HOSE ASSEMBLY, (30.00 Inches)
    HOSE ASSEMBLY, (30.00 Inches)
  • 8
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 9
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 9
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 9
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 9
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 9
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 10
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 10
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 11
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 12
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 13
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 14
    16-97477A3 STUD KIT
    STUD KIT
  • 15
    18351A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 16
    16-97477A3 STUD KIT
    STUD KIT
  • 17
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
  • 18
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 19
    43325 LEVER
    LEVER
  • 20
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 21
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 22
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 23
    47613 SWITCH
    SWITCH
  • 24
    863832T01 COOLER, Transmission Oil
    COOLER, Transmission Oil
  • 25
    805546A2 BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 26
    772233 PAD
    PAD
  • 27
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 28
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 29
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 30
    8M6000623 SENSOR
    SENSOR
