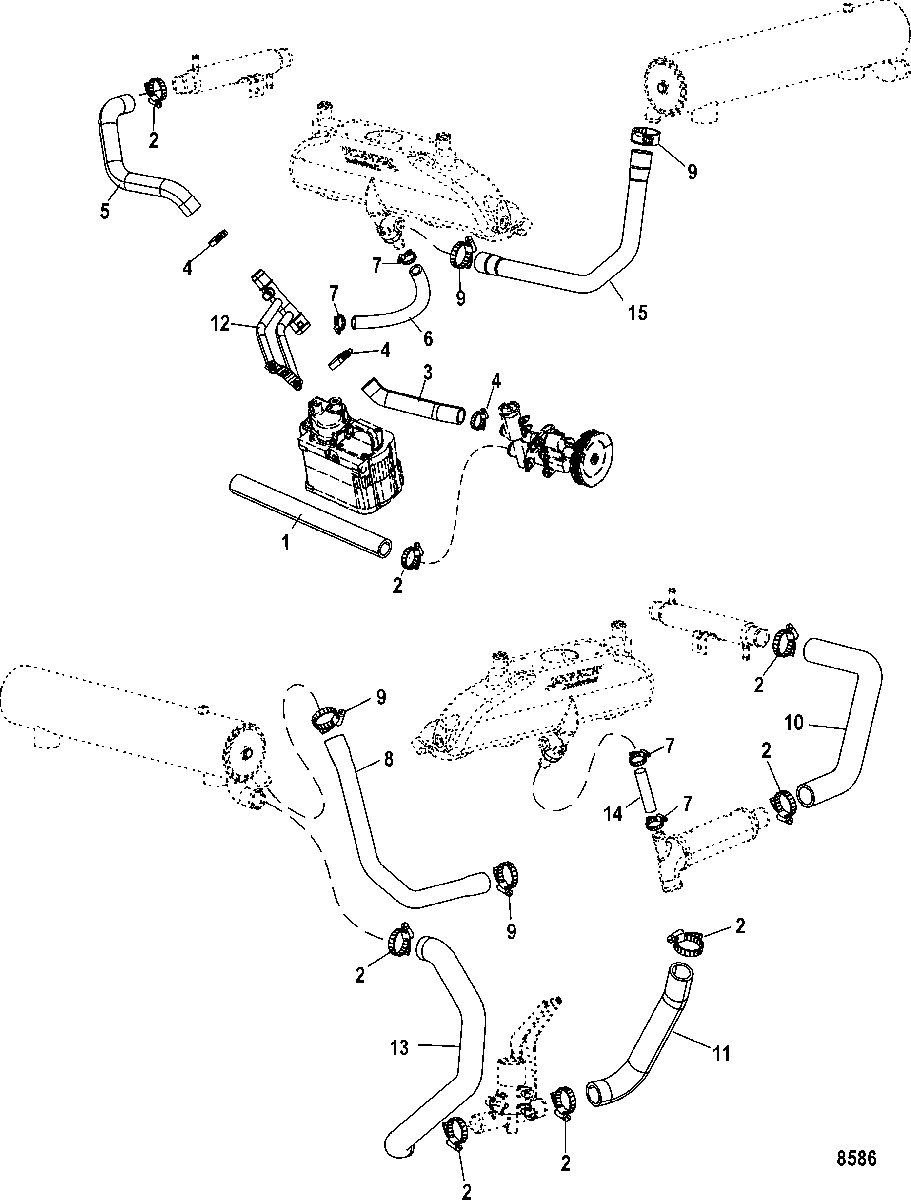

Cooling System-Raw, 1A350432 and Below, 1A380019-1A380209 для Mercruiser - 8.1L INBOARD (H.O.) 0W691821 THRU 1A380318

  • №
    Артикул
    Название
  • 1
    32-8M0062666 HOSE, (96.00 Inches Bulk), Cut to Fit
    HOSE, (96.00 Inches Bulk), Cut to Fit
  • 2
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 3
    32-865865 HOSE, Sea Water Pump to Water Orfice
    HOSE, Sea Water Pump to Water Orfice
  • 4
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 5
    32-8M2021655 HOSE, Water Orfice to Power Steering Cooler
    HOSE, Water Orfice to Power Steering Cooler
  • 6
    32-865713 HOSE, Exhaust Manifold Drain to Water Orfice
    HOSE, Exhaust Manifold Drain to Water Orfice
  • 7
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 8
    32-864488 HOSE, Heat Exchanger to Port Exhaust Manifold Drain
    HOSE, Heat Exchanger to Port Exhaust Manifold Drain
  • 9
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
  • 10
    32-863894 HOSE, Power Steering Cooler to Oil Cooler
    HOSE, Power Steering Cooler to Oil Cooler
  • 11
    32-865265 HOSE, Oil Cooler to Port Drain Housing
    HOSE, Oil Cooler to Port Drain Housing
  • 12
    22-865208T01 HOSE ASSEMBLY, 3 Bib Orfice Meter
    (See Bulletin MCM 2009-01)
    HOSE ASSEMBLY, 3 Bib Orfice Meter
    (See Bulletin MCM 2009-01)
  • 13
    32-863051 HOSE, Water Drain to Heat Exchanger
    HOSE, Water Drain to Heat Exchanger
  • 14
    32-8M0062634 HOSE, (44.00 Inches Bulk), Water Rail to Y-Fitting
    Port (Cut to 3.00 Inch Length)
    HOSE, (44.00 Inches Bulk), Water Rail to Y-Fitting
    Port (Cut to 3.00 Inch Length)
  • 15
    32-865294 HOSE, Heat Exchanger to Starboard Exhaust Manifold Drain
    HOSE, Heat Exchanger to Starboard Exhaust Manifold Drain
  • -
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
