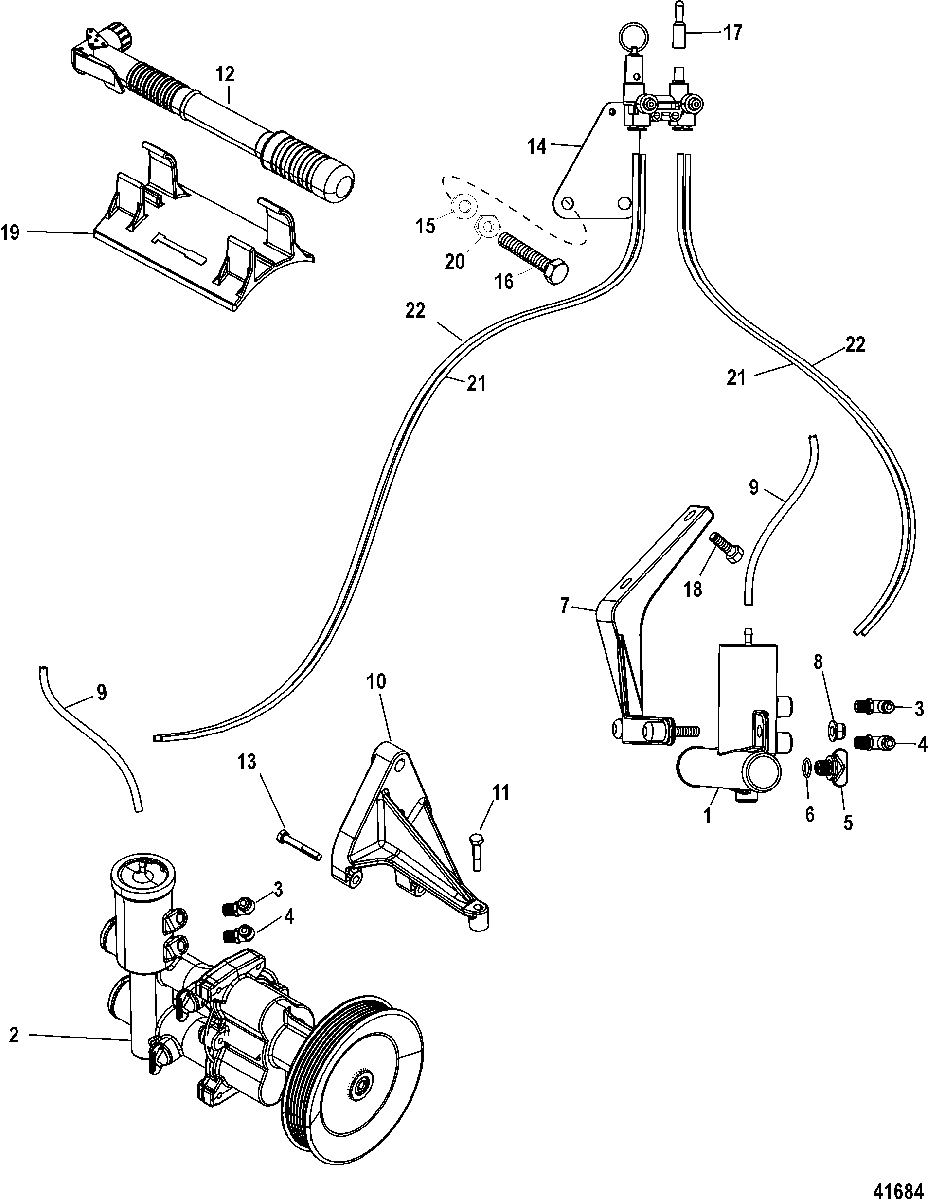

Water Drain System для Mercruiser - 8.1L INBOARD (H.O.) 0W390000 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    863717A2 ACTUATOR ASSEMBLY, Water Drain
    (Port)
    ACTUATOR ASSEMBLY, Water Drain
    (Port)
  • 2
    46-8M0137218 PUMP ASSEMBLY
    (See "Seawater Pump" for Component Break down)
    PUMP ASSEMBLY
    (See "Seawater Pump" for Component Break down)
  • 3
    22-8M0082321 FITTING, Gray (90 Degree)
    FITTING, Gray (90 Degree)
  • 4
    22-8M0082322 FITTING, Orange (90 Degree)
    FITTING, Orange (90 Degree)
  • 5
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 6
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 7
    863863T BRACKET, Actuator Mounting
    (Port)
    BRACKET, Actuator Mounting
    (Port)
  • 8
    11-826365 NUT, (M8), Nylock
    NUT, (M8), Nylock
  • 9
    32-8630561 HOSE, (42.00 Inches Bulk) Black, Air
    HOSE, (42.00 Inches Bulk) Black, Air
  • 10
    863859T BRACKET
    BRACKET
  • 11
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 12
    863057 PUMP, Air
    PUMP, Air
  • 13
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 14
    862969A2 MANIFOLD ASSEMBLY, Air
    MANIFOLD ASSEMBLY, Air
  • 15
    12-4002314 WASHER
    WASHER
  • 16
    10-864887 SCREW, (M5)
    SCREW, (M5)
  • 17
    19-883503 CAP, Service Point
    CAP, Service Point
  • 18
    10-4000374 SCREW, (M10 x 16)
    SCREW, (M10 x 16)
  • 19
    863059 BRACKET, Air Pump
    BRACKET, Air Pump
  • 20
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 21
    32-8M0077561 HOSE, (40.00 Inches Bulk) Green
    (Cut Starboard to 25.5 in.)(Cut Port Hose To 23 In.)
    HOSE, (40.00 Inches Bulk) Green
    (Cut Starboard to 25.5 in.)(Cut Port Hose To 23 In.)
  • 22
    32-8M0062601 HOSE, (40.00 Inches Bulk) Grey
    (Starboard 40 in.)(Cut Port Hose To 23 In.)
    HOSE, (40.00 Inches Bulk) Grey
    (Starboard 40 in.)(Cut Port Hose To 23 In.)
