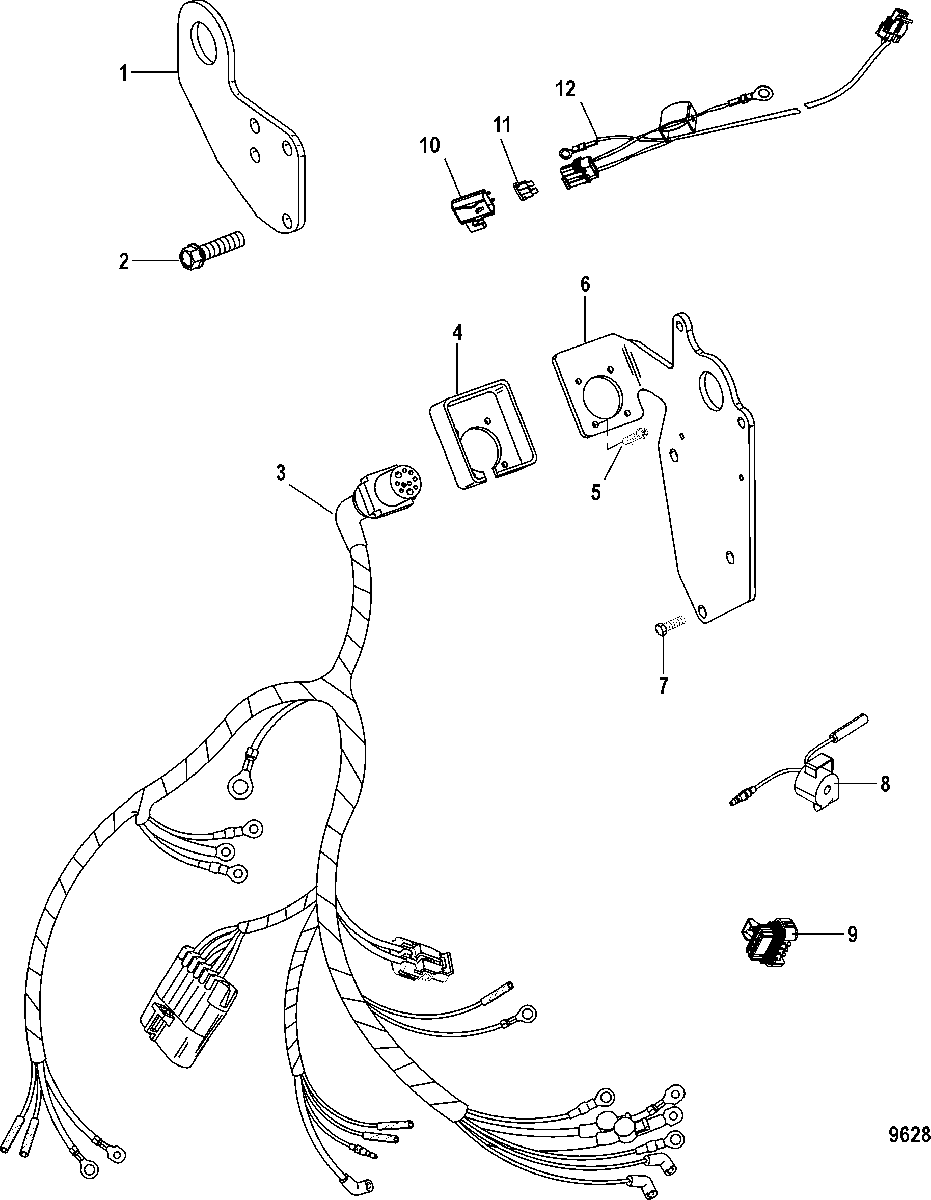

Lifting Brackets and Wiring Harness для Mercruiser - 8.1L INBOARD (H.O.) 0W390000 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    862346T BRACKET, Front Lifting Eye
    BRACKET, Front Lifting Eye
  • 2
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 3
    84-865457T05 HARNESS ASSEMBLY, Engine
    (Mechanical Throttle and Shift)
    HARNESS ASSEMBLY, Engine
    (Mechanical Throttle and Shift)
  • 3
    84-865653T03 HARNESS ASSEMBLY, Engine
    (Digital Throttle and Shift)
    HARNESS ASSEMBLY, Engine
    (Digital Throttle and Shift)
  • NS
    84-865769T01 HARNESS ASSEMBLY, Transom
    (Mechanical Throttle and Shift)
    HARNESS ASSEMBLY, Transom
    (Mechanical Throttle and Shift)
  • NS
    84-865676T01 HARNESS ASSEMBLY, Transom
    (Digital Throttle and Shift)
    HARNESS ASSEMBLY, Transom
    (Digital Throttle and Shift)
  • 4
    26079A2 PLATE KIT, Wire Harness Mount, Harness Retaining
    PLATE KIT, Wire Harness Mount, Harness Retaining
  • 5
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 6
    862347T BRACKET, Rear Lifting Eye
    BRACKET, Rear Lifting Eye
  • 7
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 8
    816492A15 ALARM KIT
    ALARM KIT
  • 9
    8M3000055 CAP, Weather Proof, 10 Pin Transom Harness
    CAP, Weather Proof, 10 Pin Transom Harness
  • 10
    84-8M0113732 HARNESS ASSEMBLY, Clean Power
    HARNESS ASSEMBLY, Clean Power
  • 11
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 12
    828054 COVER, Fuse
    COVER, Fuse
