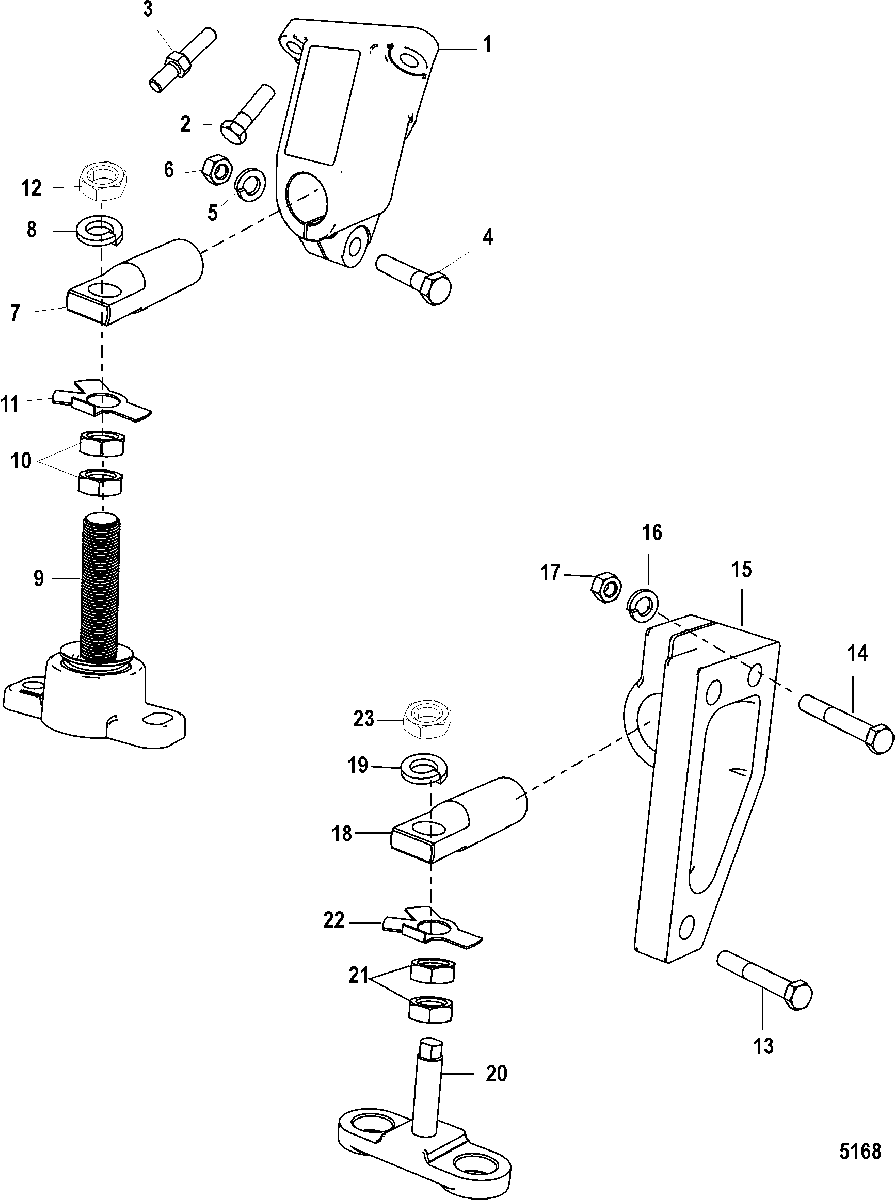

Transmission and Engine Mounting(Borg Warner 5000) для Mercruiser - 8.1L INBOARD (H.O.) 0W090000 THRU 0W389999

  • №
    Артикул
    Название
  • 1
    66418T BRACKET, Front
    BRACKET, Front
  • 2
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 3
    16-861580 STUD
    Port
    STUD
    Port
  • 3
    10-40001195 SCREW, (M10 x 30)
    Starboard
    SCREW, (M10 x 30)
    Starboard
  • 4
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 5
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 6
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 7
    66166A4 TRUNNION
    TRUNNION
  • 8
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 9
    66284A2 BASE ASSEMBLY
    (Front)
    BASE ASSEMBLY
    (Front)
  • 10
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 11
    14-66658 TAB WASHER
    TAB WASHER
  • 12
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 13
    10-4009760 SCREW, (M12 x 60)
    SCREW, (M12 x 60)
  • 14
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 15
    805496T BRACKET
    (Port) Down Angle Transmission
    BRACKET
    (Port) Down Angle Transmission
  • 15
    805496T1 BRACKET
    (Starboard) Down Angle Transmission
    BRACKET
    (Starboard) Down Angle Transmission
  • 15
    807724T BRACKET
    (Port) V-Drive Transmission
    BRACKET
    (Port) V-Drive Transmission
  • 15
    807725T BRACKET
    (Starboard) V-Drive Transmission
    BRACKET
    (Starboard) V-Drive Transmission
  • 16
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 17
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 18
    66166A4 TRUNNION
    TRUNNION
  • 19
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 20
    816326A2 BASE ASSEMBLY
    (Rear)
    BASE ASSEMBLY
    (Rear)
  • 21
    11-816331 NUT, (.750-16)
    NUT, (.750-16)
  • 22
    14-66658 TAB WASHER
    TAB WASHER
  • 23
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
