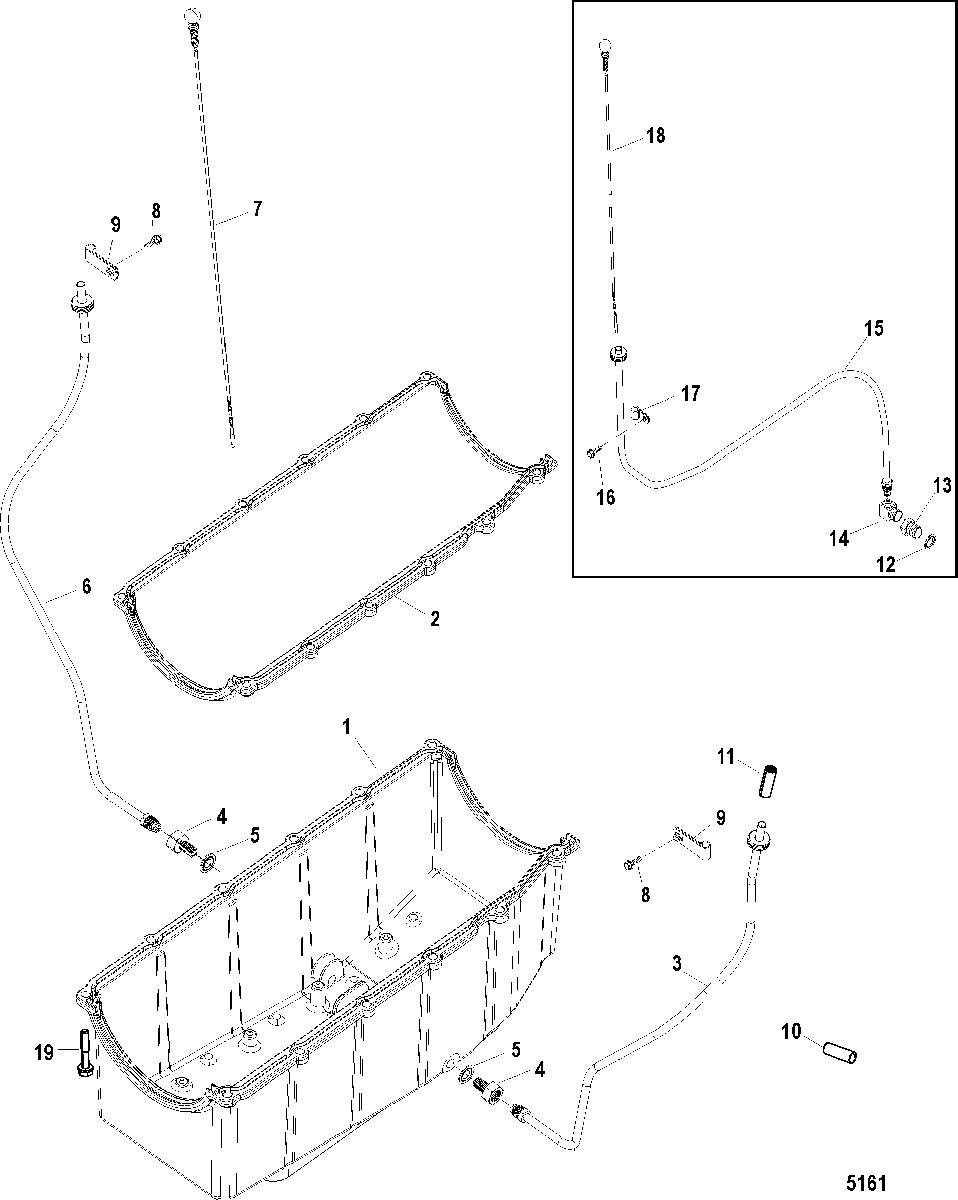

Oil Pan and Drain System для Mercruiser - 8.1L INBOARD (H.O.) 0W090000 THRU 0W389999

  • №
    Артикул
    Название
  • 1
    881653001 PAN, Oil
    PAN, Oil
  • NS
    883922 BAFFLE, Oil Pan
    BAFFLE, Oil Pan
  • NS
    10-883923 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 2
    27-881612 GASKET, Oil Pan
    GASKET, Oil Pan
  • 3
    863406 TUBE, Engine Oil Gauge
    (In-Line Starboard)
    TUBE, Engine Oil Gauge
    (In-Line Starboard)
  • 4
    22-807804 FITTING, Oil Gauge Tube
    (In-Line)
    FITTING, Oil Gauge Tube
    (In-Line)
  • 5
    27-8M0077608 GASKET, Drain
    (In-Line)
    GASKET, Drain
    (In-Line)
  • 6
    863407 TUBE, Engine Oil Gauge
    (In-Line Port)
    TUBE, Engine Oil Gauge
    (In-Line Port)
  • 7
    86194211 GAUGE, Oil Level
    (In-Line)
    GAUGE, Oil Level
    (In-Line)
  • 8
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 9
    54-65653 CLIP
    CLIP
  • 10
    861982 CAP, Vinyl
    CAP, Vinyl
  • 11
    54-805524 CLIP
    CLIP
  • 12
    27-8M0077608 GASKET, Drain
    (V-Drive)
    GASKET, Drain
    (V-Drive)
  • 13
    22-863389A01 FITTING, Oil Gauge Tube
    (V-Drive)
    FITTING, Oil Gauge Tube
    (V-Drive)
  • 14
    22-19697 ELBOW
    (V-Drive)
    ELBOW
    (V-Drive)
  • 15
    865217 TUBE, Engine Oil Gauge
    (V-Drive)
    TUBE, Engine Oil Gauge
    (V-Drive)
  • 16
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 17
    54-65653 CLIP
    (V-Drive)
    CLIP
    (V-Drive)
  • 18
    86194210 GAUGE, Oil Level
    (V-Drive)
    GAUGE, Oil Level
    (V-Drive)
  • 19
    10-898101392 BOLT, (M8 x 30)
    BOLT, (M8 x 30)
