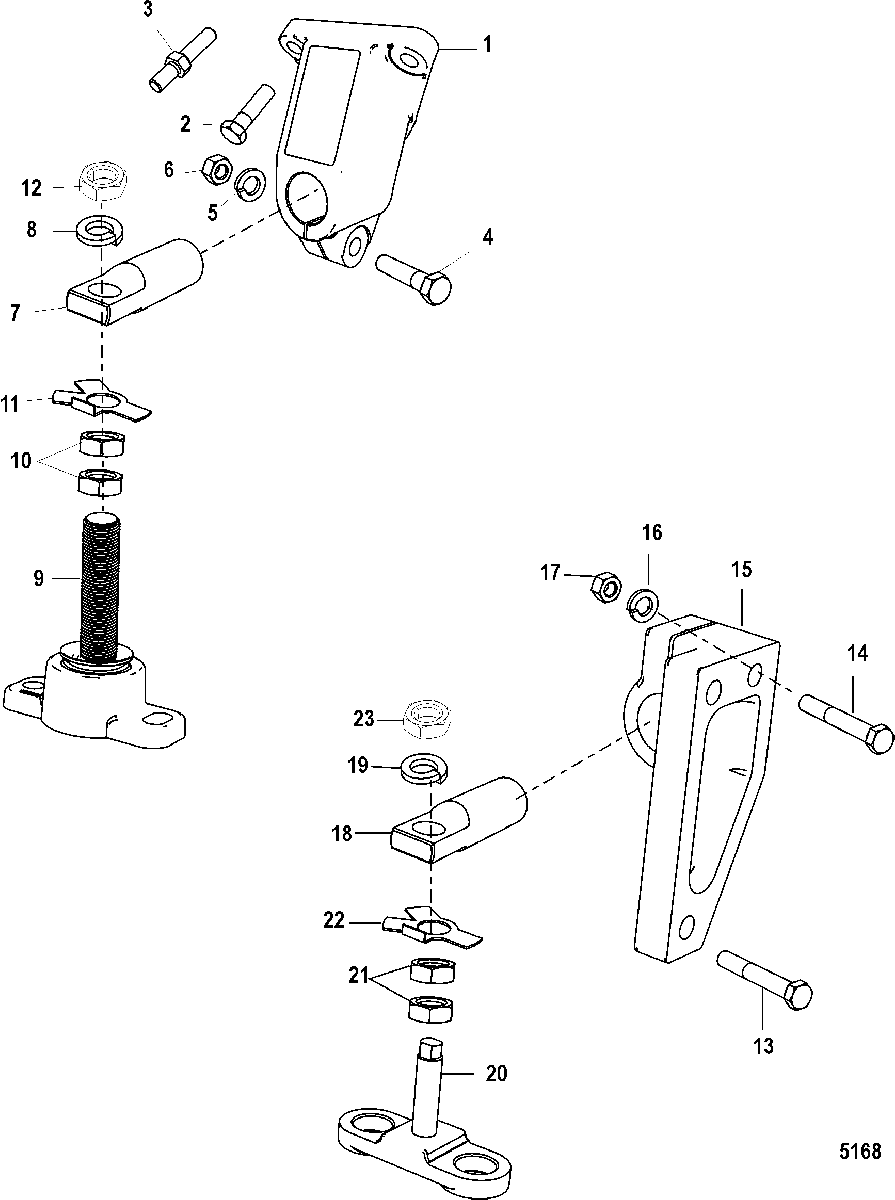

TRANSMISSION AND ENGINE MOUNTING(BORG WARNER 5000) для Mercruiser - 8.1L INBOARD (H.O.) 0M026000 THRU 0M319190
-
№АртикулНазвание
-
166418T BRACKET, FrontBRACKET, Front
-
210-40001197 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
316-861580 STUD
PortSTUD
Port -
310-40001195 SCREW, (M10 x 30)
StarboardSCREW, (M10 x 30)
Starboard -
410-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
611-82670814 NUT, (.437-14)NUT, (.437-14)
-
766166A4 TRUNNIONTRUNNION
-
813-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
966284A2 BASE ASSEMBLY (FRONT)BASE ASSEMBLY (FRONT)
-
1011-20739 NUT, (.750-16)NUT, (.750-16)
-
1114-66658 TAB WASHERTAB WASHER
-
1211-20739 NUT, (.750-16)NUT, (.750-16)
-
1310-4009760 SCREW, (M12 x 60)SCREW, (M12 x 60)
-
1410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
15805496T BRACKET
(PORT) DOWN ANGLE TRANSMISSIONBRACKET
(PORT) DOWN ANGLE TRANSMISSION -
15805496T1 BRACKET
(STARBOARD) DOWN ANGLE TRANSMISSIONBRACKET
(STARBOARD) DOWN ANGLE TRANSMISSION -
15807724T BRACKET
(PORT) V-DRIVE TRANSMISSIONBRACKET
(PORT) V-DRIVE TRANSMISSION -
15807725T BRACKET
(STARBOARD) V-DRIVE TRANSMISSIONBRACKET
(STARBOARD) V-DRIVE TRANSMISSION -
1613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1711-82670814 NUT, (.437-14)NUT, (.437-14)
-
1866166A4 TRUNNIONTRUNNION
-
1913-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
20816326A2 BASE ASSEMBLY (REAR)BASE ASSEMBLY (REAR)
-
2111-816331 NUT, (.750-16)NUT, (.750-16)
-
2214-66658 TAB WASHERTAB WASHER
-
2311-20739 NUT, (.750-16)NUT, (.750-16)
