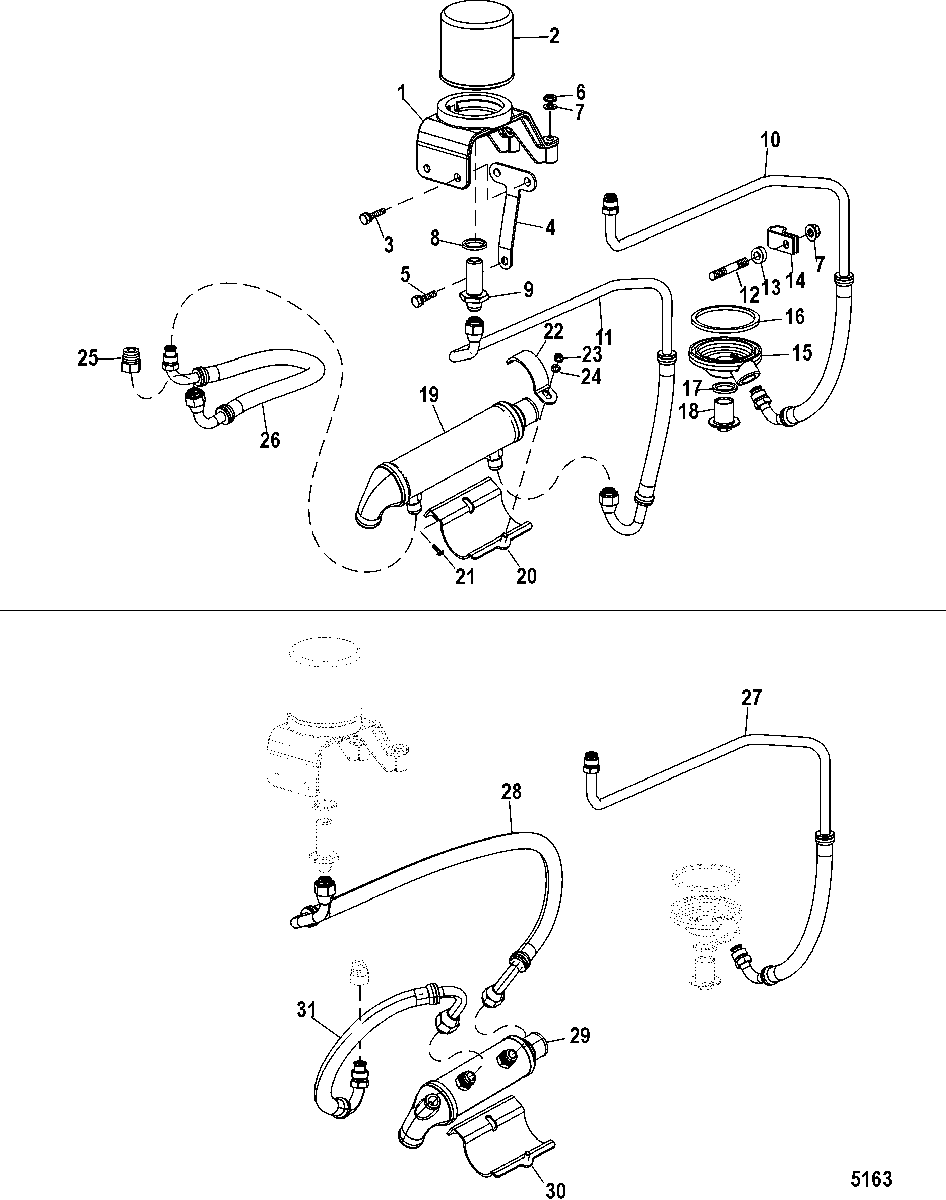

REMOTE OIL SYSTEM для Mercruiser - 8.1L INBOARD (H.O.) 0M026000 THRU 0M319190
-
№АртикулНазвание
-
1862342T BRACKET, Remote Oil FilterBRACKET, Remote Oil Filter
-
235-866340Q03 FILTER, Oil, OilFILTER, Oil, Oil
-
310-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
48629102 BRACKET, SupportBRACKET, Support
-
48629101 BRACKET, Support
(V-Drive)BRACKET, Support
(V-Drive) -
510-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
611-4002030 NUT, (M8)NUT, (M8)
-
712-12038 WASHERWASHER
-
826-42077 SEALSEAL
-
922-806328 FITTING, Oil AdaptorFITTING, Oil Adaptor
-
1032-8628641 HOSE, Oil, Filter to Adaptor
SN# 0M027850 & BelowHOSE, Oil, Filter to Adaptor
SN# 0M027850 & Below -
1032-8629771 HOSE, Oil, Filter to Adaptor
(V-Drive) SN# 0M027850 & BelowHOSE, Oil, Filter to Adaptor
(V-Drive) SN# 0M027850 & Below -
1132-8628651 HOSE, Oil, Filter to Cooler
SN# 0M027850 & BelowHOSE, Oil, Filter to Cooler
SN# 0M027850 & Below -
1132-8629761 HOSE, Oil, Filter to Cooler
(V-Drive) SN# 0M027850 & BelowHOSE, Oil, Filter to Cooler
(V-Drive) SN# 0M027850 & Below -
1216-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
1323-34948 SPACERSPACER
-
1454-475451 CLIPCLIP
-
15862870T ADAPTOR, Oil FilterADAPTOR, Oil Filter
-
1626-862957 SEAL, Oil Filter AdaptorSEAL, Oil Filter Adaptor
-
1726-42077 SEAL, Swivel TubeSEAL, Swivel Tube
-
1822-862958 FITTING, Oil Filter AdaptorFITTING, Oil Filter Adaptor
-
19861946T COOLER, Oil
SN# 0M027850 & BelowCOOLER, Oil
SN# 0M027850 & Below -
20862343T1 BRACKET, Oil Cooler
SN# 0M027850 & BelowBRACKET, Oil Cooler
SN# 0M027850 & Below -
2110-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
22807445T CLAMP, Cooler BracketCLAMP, Cooler Bracket
-
2311-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2412-22937 WASHERWASHER
-
2522-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
-
2632-863915 HOSE, Cooler to Engine
SN# 0M027850 & BelowHOSE, Cooler to Engine
SN# 0M027850 & Below -
2732-863899 HOSE, Oil, Filter to Adaptor
SN# 0M027851 & UpHOSE, Oil, Filter to Adaptor
SN# 0M027851 & Up -
2732-863902 HOSE, Oil, Filter to Adaptor
(V-Drive) SN# 0M027851 & UpHOSE, Oil, Filter to Adaptor
(V-Drive) SN# 0M027851 & Up -
2832-863900 HOSE, Oil, Filter to Cooler
SN# 0M027851 & UpHOSE, Oil, Filter to Cooler
SN# 0M027851 & Up -
2832-8639011 HOSE, Oil, Filter to Cooler
(V-Drive) SN# 0M027851 & UpHOSE, Oil, Filter to Cooler
(V-Drive) SN# 0M027851 & Up -
29863904T COOLER, Oil
SN# 0M027851 & UpCOOLER, Oil
SN# 0M027851 & Up -
30863905T BRACKET, Oil Cooler
SN# 0M027851 & UpBRACKET, Oil Cooler
SN# 0M027851 & Up -
3132-863915 HOSE, Cooler to Engine
SN# 0M027851 & UpHOSE, Cooler to Engine
SN# 0M027851 & Up
