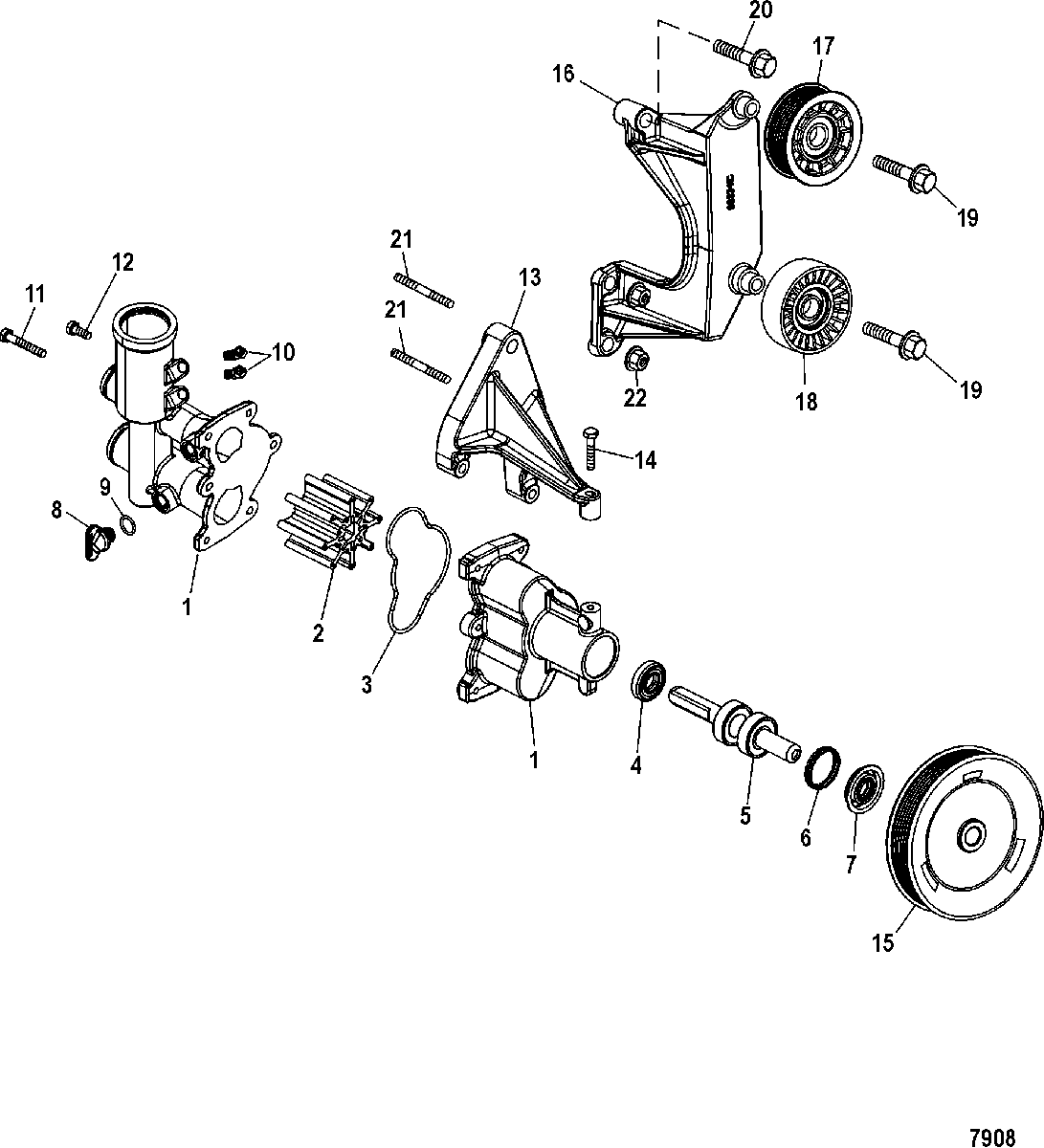

Seawater Pump для Mercruiser - 8.1L INBOARD (Base) 0W090000 THRU 0W389999

  • №
    Артикул
    Название
  • 1
    46-8M0137218 PUMP ASSEMBLY, Sea Water, Complete
    PUMP ASSEMBLY, Sea Water, Complete
  • 2
    47-8M0104229 IMPELLER
    IMPELLER
  • 3
    25-841807 O-RING, (3.500 x .103)
    O-RING, (3.500 x .103)
  • 4
    26-8M2001645 SEAL, Oil
    SEAL, Oil
  • 5
    8M0050018 DRIVESHAFT ASSEMBLY, Impeller
    DRIVESHAFT ASSEMBLY, Impeller
  • 6
    862039 TOLERANCE RING
    TOLERANCE RING
  • 7
    26-862040 SEAL, Lip
    SEAL, Lip
  • 8
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 9
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 10
    22-8M0082321 FITTING, Gray (90 Degree) , Gray
    FITTING, Gray (90 Degree) , Gray
  • 10
    22-8M0082322 FITTING, Orange (90 Degree), Orange
    FITTING, Orange (90 Degree), Orange
  • 11
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 12
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 13
    863859T BRACKET, Sea Water Pump
    BRACKET, Sea Water Pump
  • 14
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 15
    862351T PULLEY
    PULLEY
  • 16
    863861T BRACKET, Idler Pulley
    BRACKET, Idler Pulley
  • 17
    865444T PULLEY, (3.50 Inch Diameter), Idler
    Grooved
    PULLEY, (3.50 Inch Diameter), Idler
    Grooved
  • 18
    8M6500024 PULLEY, Idler
    Non-Grooved
    PULLEY, Idler
    Non-Grooved
  • 19
    10-4010816 SCREW, (M10 x 16) Hex Flange - Stainless Steel
    SCREW, (M10 x 16) Hex Flange - Stainless Steel
  • 20
    10-4010845 SCREW, (M10 x 45) Hex Flange - Stainless Steel
    SCREW, (M10 x 45) Hex Flange - Stainless Steel
  • 21
    16-854309 STUD, (M10 x 76)
    STUD, (M10 x 76)
  • 22
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
