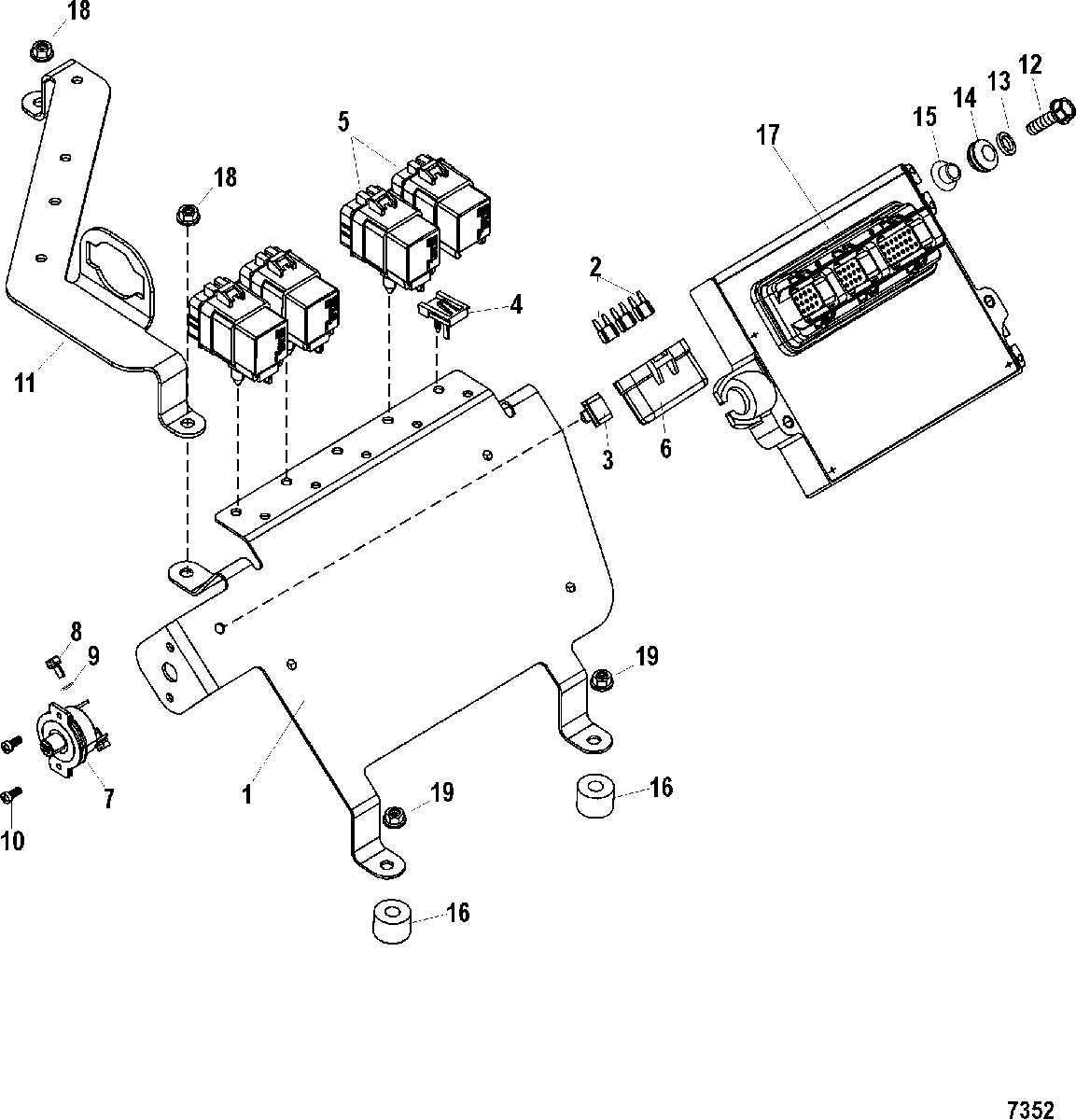

PCM and Bracket для Mercruiser - 8.1L INBOARD (Base) 0W090000 THRU 0W389999

  • №
    Артикул
    Название
  • NS
    84-865457T05 HARNESS ASSEMBLY, Engine
    (Mechanical Throttle and Shift)
    HARNESS ASSEMBLY, Engine
    (Mechanical Throttle and Shift)
  • NS
    84-865769T01 HARNESS ASSEMBLY, Transom
    (Mechanical Throttle and Shift)
    HARNESS ASSEMBLY, Transom
    (Mechanical Throttle and Shift)
  • NS
    84-865653T03 HARNESS ASSEMBLY, Engine
    (Digital Throttle and Shift)
    HARNESS ASSEMBLY, Engine
    (Digital Throttle and Shift)
  • NS
    84-865676T01 HARNESS ASSEMBLY, Transom
    (Digital Throttle and Shift)
    HARNESS ASSEMBLY, Transom
    (Digital Throttle and Shift)
  • 1
    865638T BRACKET
    BRACKET
  • 2
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 3
    86-865205 CLIP, Fuse Block Mounting
    CLIP, Fuse Block Mounting
  • 4
    54-804352 CLIP, Relay Mounting
    CLIP, Relay Mounting
  • 5
    882751A04 RELAY ASSEMBLY
    (Mechanical Throttle and Shift)
    RELAY ASSEMBLY
    (Mechanical Throttle and Shift)
  • 5
    882751A04 RELAY ASSEMBLY
    (Digital Throttle and Shift)
    RELAY ASSEMBLY
    (Digital Throttle and Shift)
  • 6
    883562 COVER, Fuse
    COVER, Fuse
  • 7
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 8
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 9
    13-26996 LOCKWASHER, (#10) Stainless Steel, Split Lock
    LOCKWASHER, (#10) Stainless Steel, Split Lock
  • 10
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 11
    865639T BRACKET
    BRACKET
  • 12
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 13
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 14
    25-834985 GROMMET
    GROMMET
  • 15
    23-856954 BUSHING, Electrical Plate
    BUSHING, Electrical Plate
  • 16
    23-862995 SPACER
    SPACER
  • 17
    865852T05 PCM, Propulsion Control Module, Base
    (Mechanical Throttle and Shift)
    PCM, Propulsion Control Module, Base
    (Mechanical Throttle and Shift)
  • 17
    865854T02 PCM, Propulsion Control Module, Base
    (Electric Throttle and Shift)
    PCM, Propulsion Control Module, Base
    (Electric Throttle and Shift)
  • 17
    865857T05 PCM, Propulsion Control Module, High Output
    (Mechanical Throttle and Shift)
    PCM, Propulsion Control Module, High Output
    (Mechanical Throttle and Shift)
  • 17
    865859T02 PCM, Propulsion Control Module, High Output
    (Electric Throttle and Shift)
    PCM, Propulsion Control Module, High Output
    (Electric Throttle and Shift)
  • 18
    11-4002030 NUT, (M8)
    NUT, (M8)
  • 19
    11-802751 NUT
    NUT
