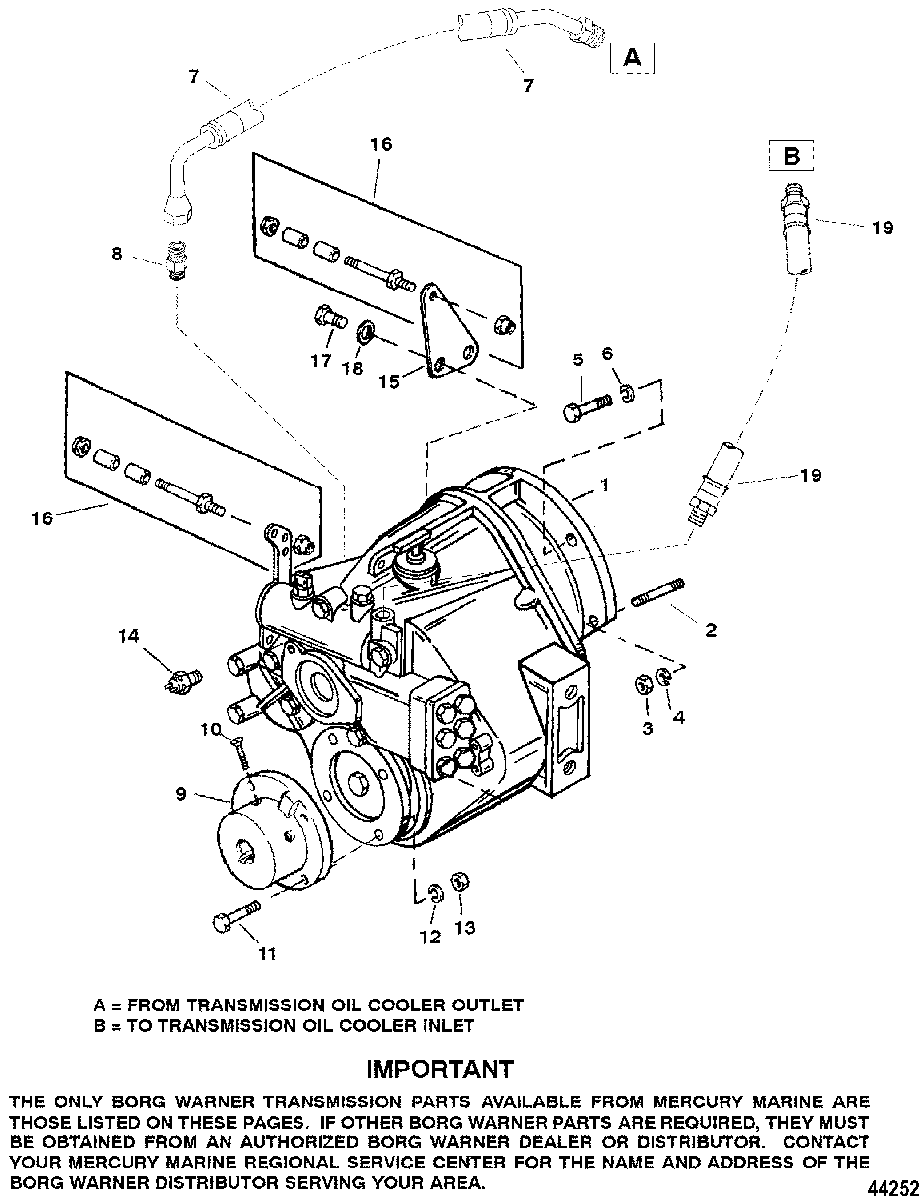

TRANSMISSION AND RELATED PARTS(BORG WARNER 5000) для Mercruiser - 7.4L TBI MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F874815 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    805495R57 TRANSMISSION
    (1.50:1 RATIO)
    TRANSMISSION
    (1.50:1 RATIO)
  • 1
    805495R58 TRANSMISSION
    (2.00:1 RATIO)
    TRANSMISSION
    (2.00:1 RATIO)
  • 1
    805495R59 TRANSMISSION
    (2.45:1 RATIO)
    TRANSMISSION
    (2.45:1 RATIO)
  • 1
    805495R60 TRANSMISSION
    (2.80:1 RATIO)
    TRANSMISSION
    (2.80:1 RATIO)
  • 2
    16-805259 STUD
    STUD
  • 3
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 4
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 5
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 6
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 7
    32-807686 HOSE
    HOSE
  • 8
    22-807272 FITTING, (.50) Inch Flare To (.375) Inch NPT
    FITTING, (.50) Inch Flare To (.375) Inch NPT
  • 9
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 9
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 9
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 9
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 9
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 9
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 9
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 10
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 10
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 11
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 12
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 13
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 14
    87-88031 SWITCH, Tempature
    SWITCH, Tempature
  • 15
    806238 BRACKET
    BRACKET
  • 16
    16-97477A3 STUD KIT
    STUD KIT
  • 17
    10-40001124 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 18
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 19
    32-8054781 HOSE, (19.50)
    HOSE, (19.50)
