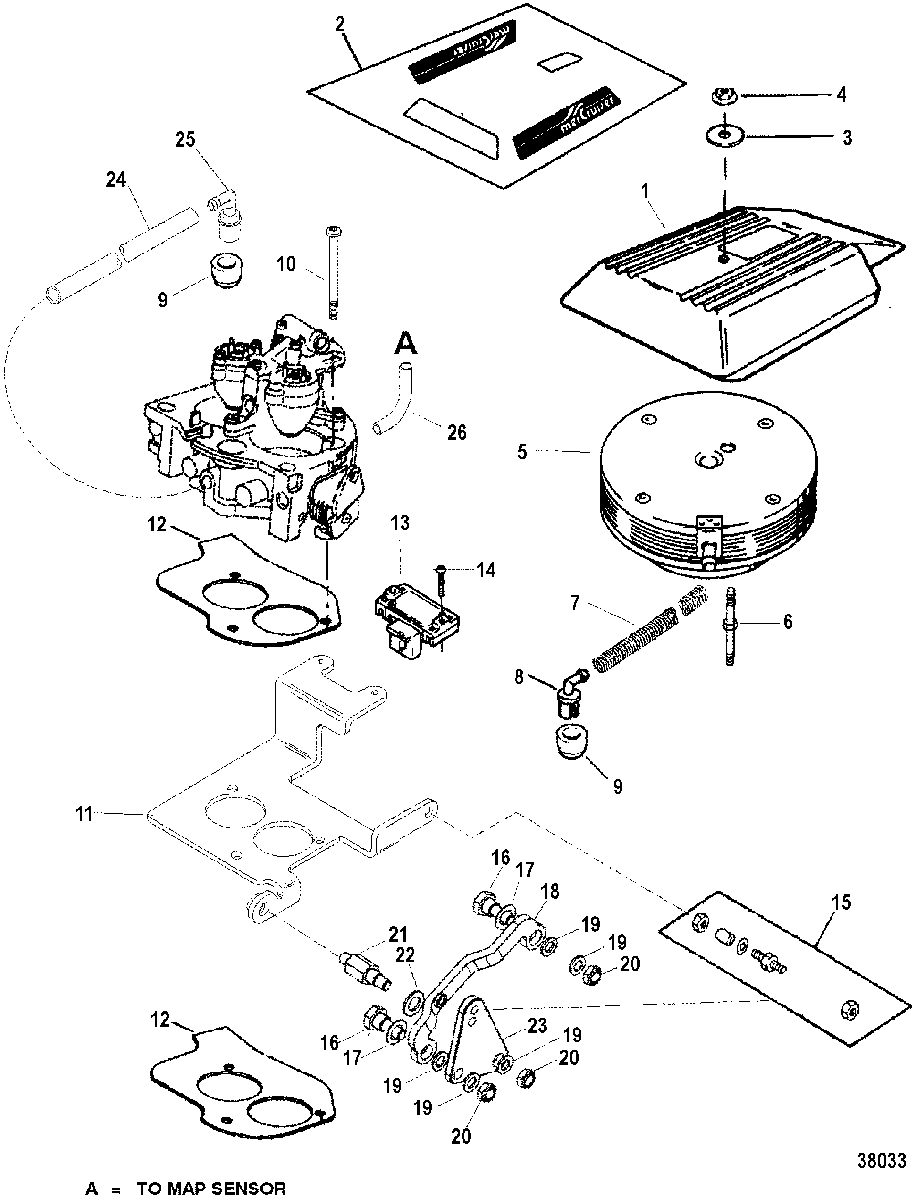

THROTTLE LINKAGE для Mercruiser - 7.4L TBI MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F874815 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-812776A41 DECAL SET, Flame Arrestor Cover
    DECAL SET, Flame Arrestor Cover
  • 3
    12-86400 WASHER
    WASHER
  • 4
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 5
    807899T FLAME ARRESTOR
    FLAME ARRESTOR
  • 6
    16-807940 STUD, Flame Arrestor
    STUD, Flame Arrestor
  • 7
    32-8M0062669 TUBING, (24.00 Inches Bulk), Rocker Cover to Flame Arrestor
    TUBING, (24.00 Inches Bulk), Rocker Cover to Flame Arrestor
  • 8
    97850T ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 9
    25-811553 GROMMET
    GROMMET
  • 10
    10-805390 SCREW, (.312-18 x 2.250)
    SCREW, (.312-18 x 2.250)
  • 11
    807898A1 PLATE ASSEMBLY, TBI Adaptor
    PLATE ASSEMBLY, TBI Adaptor
  • 12
    27-8M0077609 GASKET
    GASKET
  • 13
    864856A1 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 14
    10-807120 SCREW, (#10-24 x 1.00)
    SCREW, (#10-24 x 1.00)
  • 15
    16-97477A3 STUD KIT
    STUD KIT
  • 16
    10-806946 BOLT
    BOLT
  • 17
    12-861854 WASHER
    WASHER
  • 18
    807097T CONNECTOR, Throttle Linkage
    CONNECTOR, Throttle Linkage
  • 19
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 20
    11-826709111 NUT, (.312-24)
    NUT, (.312-24)
  • 21
    806915 SHAFT
    SHAFT
  • 22
    12-79552 WASHER, (.453 x .750 x .062) Stainless Steel
    WASHER, (.453 x .750 x .062) Stainless Steel
  • 23
    806916T PLATE, Throttle Linkage
    PLATE, Throttle Linkage
  • 24
    32-8M0062321 HOSE, PVC (22.50 Inch Bulk)
    HOSE, PVC (22.50 Inch Bulk)
  • 25
    21-8M2017060 PCV VALVE
    PCV VALVE
  • 26
    32-8M0040618 HOSE, (.2187 x .440), TBI to Map Sensor
    HOSE, (.2187 x .440), TBI to Map Sensor
  • -
    27-806640A96 GASKET SET
    GASKET SET
