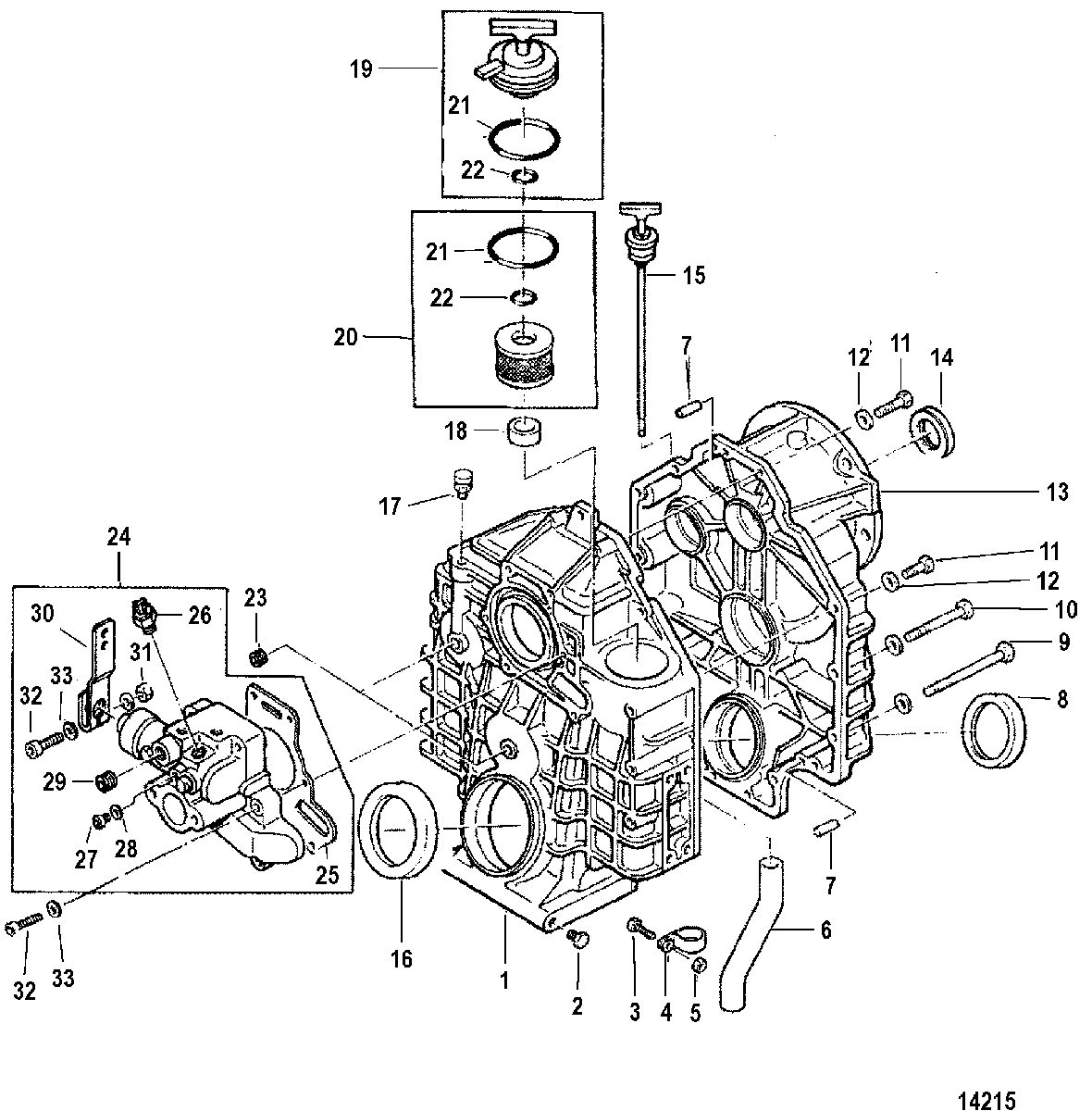

Transmission(V-Drive) (Hurth 630) для Mercruiser - 454 MAG. MPI HORIZON (GEN. VI) GM 454 V-8 0L086050 THRU 0L674000

  • №
    Артикул
    Название
  • -
    863745T2 TRANSMISSION, (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio)
  • -
    863745T3 TRANSMISSION, (2.0:1 Ratio)
    TRANSMISSION, (2.0:1 Ratio)
  • -
    863745T4 TRANSMISSION, (2.5:1 Ratio)
    TRANSMISSION, (2.5:1 Ratio)
  • 1
    811961 HOUSING, Control Side
    (NO LONGER SOLD SEPARATELY)
    HOUSING, Control Side
    (NO LONGER SOLD SEPARATELY)
  • 2
    19-811966 PLUG
    (NO LONGER SOLD SEPARATELY)
    PLUG
    (NO LONGER SOLD SEPARATELY)
  • 3
    10-811953 SCREW
    (NO LONGER SOLD SEPARATELY)
    SCREW
    (NO LONGER SOLD SEPARATELY)
  • 4
    54-811965 CLAMP
    (NO LONGER SOLD SEPARATELY)
    CLAMP
    (NO LONGER SOLD SEPARATELY)
  • 5
    11-811954 NUT
    (NO LONGER SOLD SEPARATELY)
    NUT
    (NO LONGER SOLD SEPARATELY)
  • 6
    32-811962 HOSE, Suction
    (NO LONGER SOLD SEPARATELY)
    HOSE, Suction
    (NO LONGER SOLD SEPARATELY)
  • 7
    17-813291 PIN, Dowel
    (NO LONGER SOLD SEPARATELY)
    PIN, Dowel
    (NO LONGER SOLD SEPARATELY)
  • 8
    26-811957 SEAL
    SEAL
  • 9
    10-813285 SCREW
    (NO LONGER SOLD SEPARATELY)
    SCREW
    (NO LONGER SOLD SEPARATELY)
  • 10
    10-813284 SCREW
    (NO LONGER SOLD SEPARATELY)
    SCREW
    (NO LONGER SOLD SEPARATELY)
  • 11
    10-813282 SCREW
    SCREW
  • 12
    13-813281 LOCKWASHER
    (NO LONGER SOLD SEPARATELY)
    LOCKWASHER
    (NO LONGER SOLD SEPARATELY)
  • 13
    811960 HOUSING, Input Side
    (NO LONGER SOLD SEPARATELY)
    HOUSING, Input Side
    (NO LONGER SOLD SEPARATELY)
  • 14
    26-813286 SEAL
    SEAL
  • 15
    811964 DIPSTICK
    DIPSTICK
  • 16
    26-811956 SEAL
    SEAL
  • 17
    813280 VENT CAP
    VENT CAP
  • 18
    12-813303 WASHER
    (NO LONGER SOLD SEPARATELY)
    WASHER
    (NO LONGER SOLD SEPARATELY)
  • 19
    36-811963 COVER KIT (INCLUDES REF. #21 & 22)
    (NO LONGER SOLD SEPARATELY)
    COVER KIT (INCLUDES REF. #21 & 22)
    (NO LONGER SOLD SEPARATELY)
  • 20
    35-879194241 FLUID FILTER KIT
    FLUID FILTER KIT
  • 21
    25-813407 O-RING
    O-RING
  • 22
    25-813406 O-RING
    (NO LONGER SOLD SEPARATELY)
    O-RING
    (NO LONGER SOLD SEPARATELY)
  • 23
    22-813302 PLUG
    (NO LONGER SOLD SEPARATELY)
    PLUG
    (NO LONGER SOLD SEPARATELY)
  • 24
    813295 CONTROL BLOCK
    CONTROL BLOCK
  • 25
    27-813301 GASKET
    GASKET
  • 26
    87-813300 SWITCH
    SWITCH
  • 27
    10-813296 SCREW
    SCREW
  • 28
    12-811958 WASHER
    (NO LONGER SOLD SEPARATELY)
    WASHER
    (NO LONGER SOLD SEPARATELY)
  • 29
    22-811959 PLUG
    (NO LONGER SOLD SEPARATELY)
    PLUG
    (NO LONGER SOLD SEPARATELY)
  • 30
    813298 LEVER, Shift
    (NO LONGER SOLD SEPARATELY)
    LEVER, Shift
    (NO LONGER SOLD SEPARATELY)
  • 31
    11-813299 NUT
    (NO LONGER SOLD SEPARATELY)
    NUT
    (NO LONGER SOLD SEPARATELY)
  • 32
    10-813294 SCREW
    SCREW
  • 33
    13-813293 LOCKWASHER
    (NO LONGER SOLD SEPARATELY)
    LOCKWASHER
    (NO LONGER SOLD SEPARATELY)
