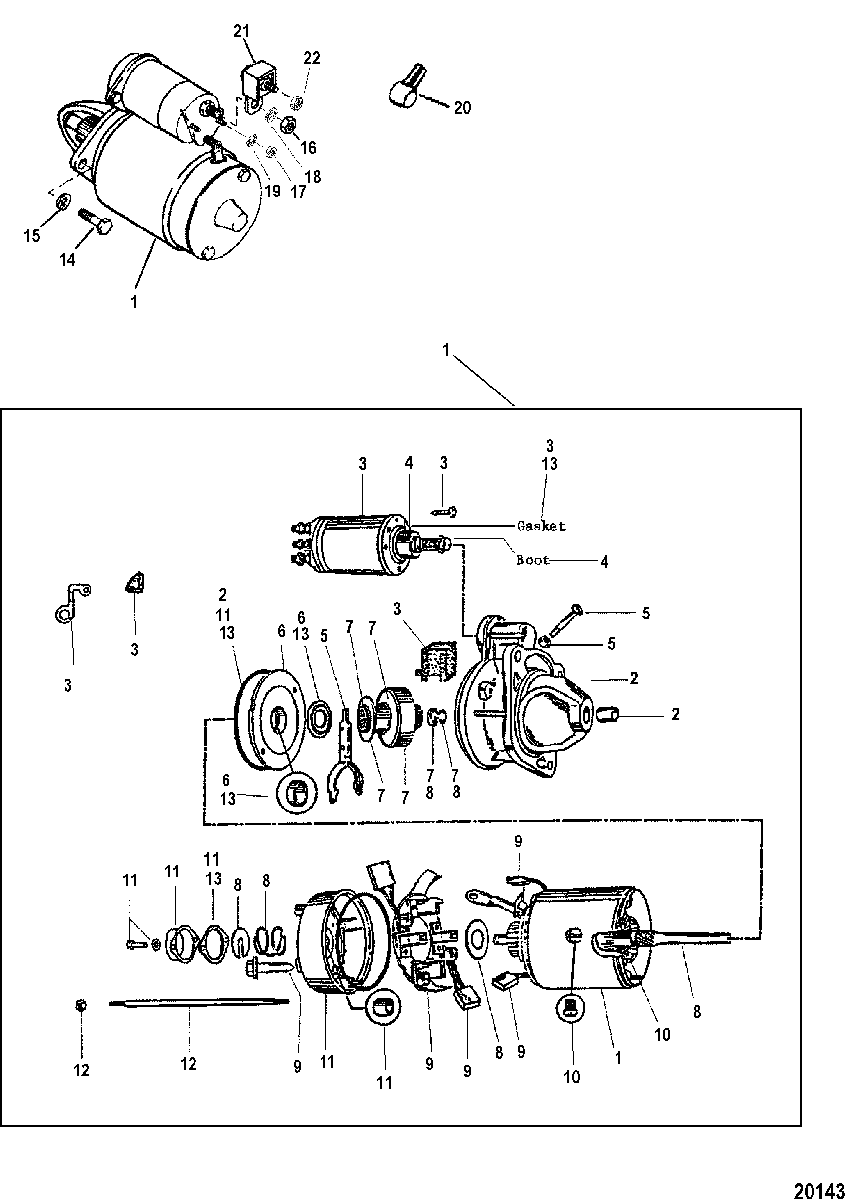

Starter Motor для Mercruiser - 454 MAG. MPI HORIZON (GEN. VI) GM 454 V-8 0L086050 THRU 0L674000

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    850401 HOUSING, Drive
    HOUSING, Drive
  • 3
    89-850408 SOLENOID
    SOLENOID
  • 4
    NSS NOT SOLD SEPARATE, Plunger Kit
    NOT SOLD SEPARATE, Plunger Kit
  • 5
    NSS NOT SOLD SEPARATE, Shift Lever Kit
    NOT SOLD SEPARATE, Shift Lever Kit
  • 6
    NSS NOT SOLD SEPARATE, Center Bearing Kit
    NOT SOLD SEPARATE, Center Bearing Kit
  • 7
    850402 DRIVE KIT
    DRIVE KIT
  • 8
    NSS NOT SOLD SEPARATE, Armature Kit
    NOT SOLD SEPARATE, Armature Kit
  • 9
    850404 HOLDER KIT
    HOLDER KIT
  • 10
    NSS NOT SOLD SEPARATE, Field Coil
    NOT SOLD SEPARATE, Field Coil
  • 11
    NSS NOT SOLD SEPARATE, C.E. Frame Kit
    NOT SOLD SEPARATE, C.E. Frame Kit
  • 12
    10-850407 BOLT
    BOLT
  • 13
    NSS NOT SOLD SEPARATE, Sealing Package Kit
    NOT SOLD SEPARATE, Sealing Package Kit
  • 14
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 15
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 16
    11-15874 NUT, (M10)
    NUT, (M10)
  • 17
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 18
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 19
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 20
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 21
    88-79023A91 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 22
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
