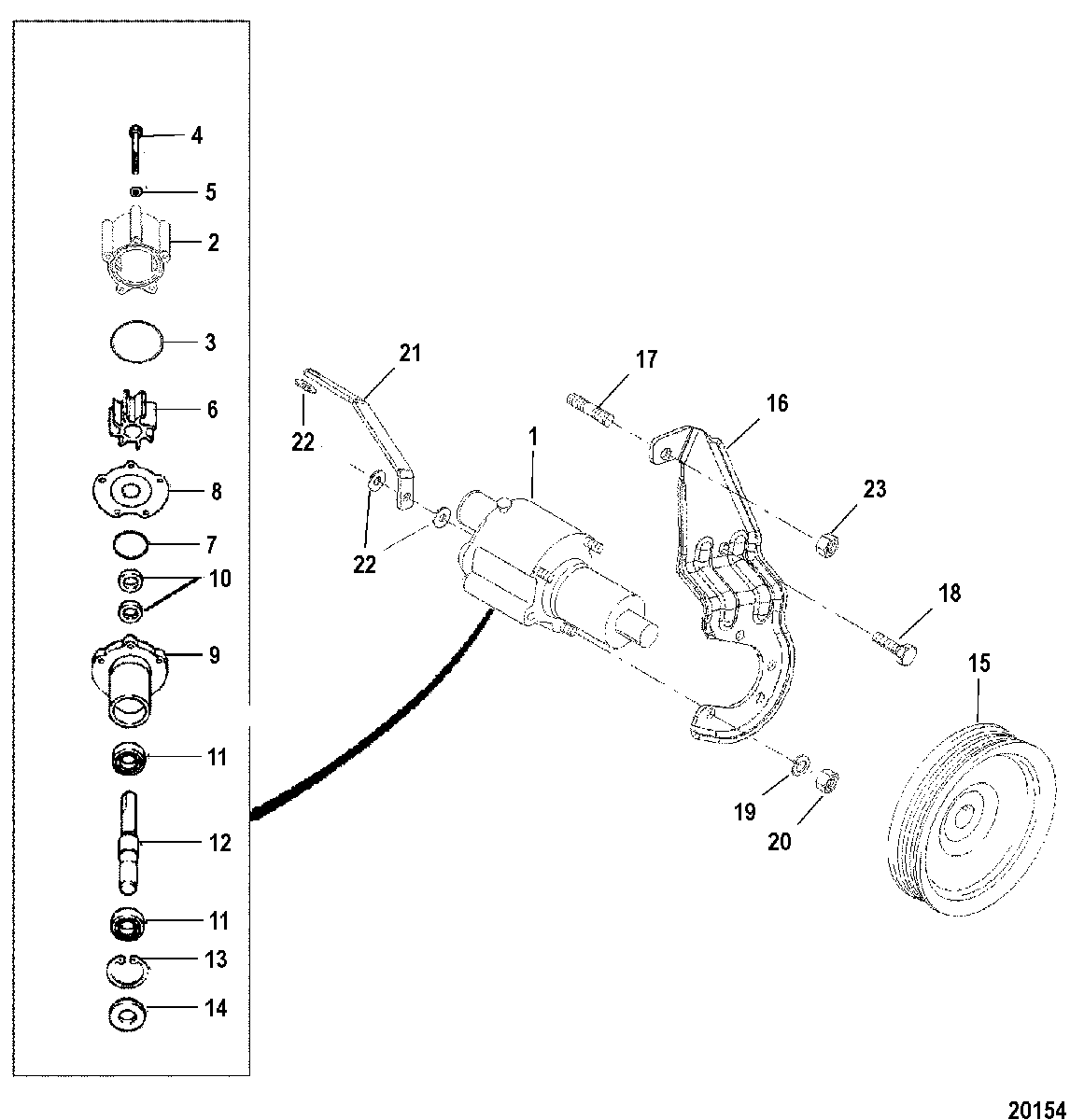

SEA WATER PUMP для Mercruiser - 454 MAG. MPI HORIZON (GEN. VI) GM 454 V-8 0L002200 THRU 0L086049

  • №
    Артикул
    Название
  • 1
    46-807151A9 PUMP ASSEMBLY, Sea Water
    PUMP ASSEMBLY, Sea Water
  • 2
    46-807151A14 BODY/IMPELLER KIT
    BODY/IMPELLER KIT
  • 3
    25-33465 O-RING
    O-RING
  • 4
    10-74191 SCREW, (.312-18 x 3.250)
    SCREW, (.312-18 x 3.250)
  • 5
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 6
    47-59362T1 IMPELLER
    IMPELLER
  • 7
    25-94288 QUAD RING
    QUAD RING
  • 8
    94576 WEAR PLATE (INNER)
    WEAR PLATE (INNER)
  • 9
    46-94913A5 HOUSING ASSEMBLY, Pump
    HOUSING ASSEMBLY, Pump
  • 10
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 11
    30-72961 BEARING, Ball
    BEARING, Ball
  • 12
    59501A1 SHAFT
    SHAFT
  • 13
    53-23720 RING, Retaining
    RING, Retaining
  • 14
    26-72785 SEAL
    SEAL
  • 15
    861579 PULLEY
    PULLEY
  • 16
    861087T BRACKET
    BRACKET
  • 17
    16-806591 STUD, (7/16-14)
    STUD, (7/16-14)
  • 18
    10-17965 SCREW, (.437-14 x .70)
    SCREW, (.437-14 x .70)
  • 19
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 20
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 21
    861530 BRACE
    BRACE
  • 22
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 23
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
