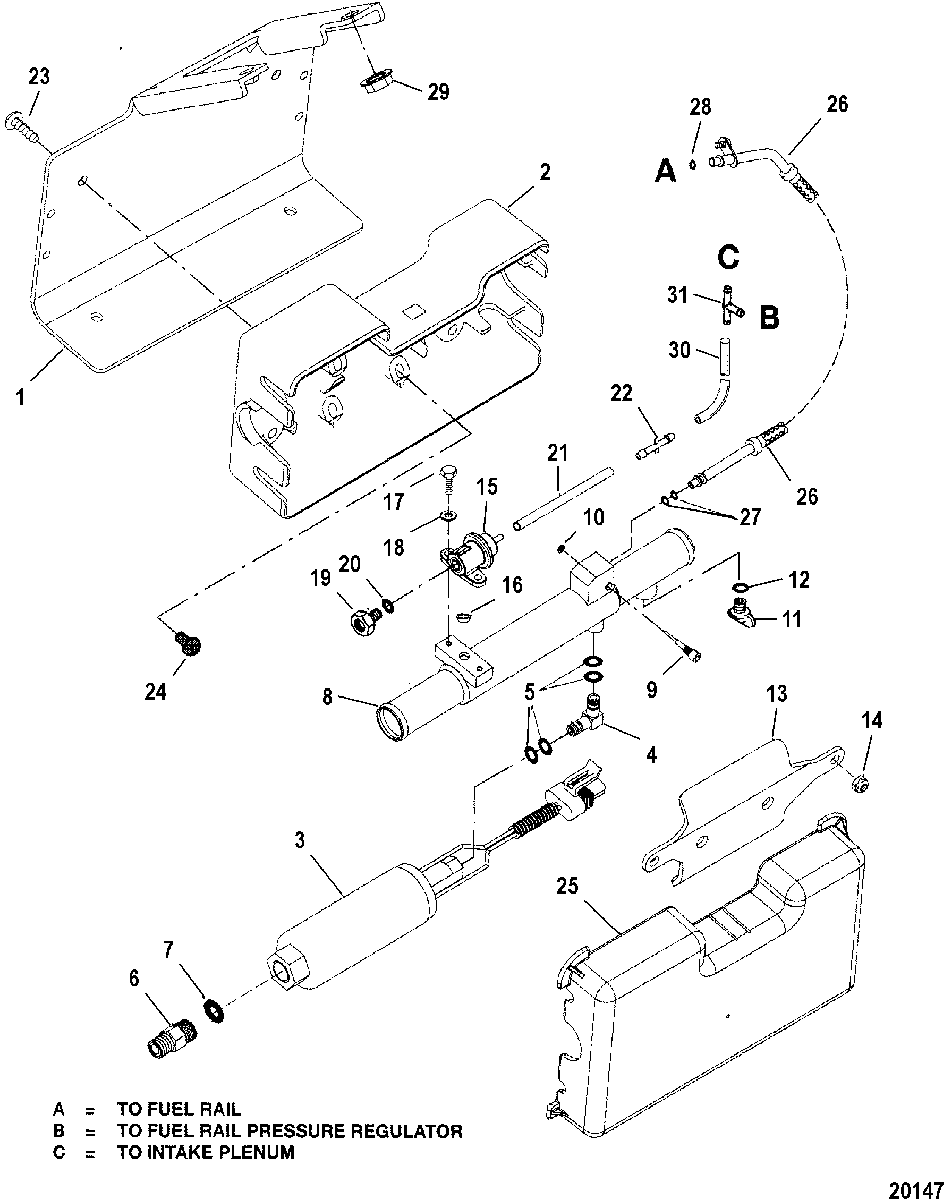

FUEL PUMP AND FUEL COOLER для Mercruiser - 454 MAG. MPI HORIZON (GEN. VI) GM 454 V-8 0L002200 THRU 0L086049

  • №
    Артикул
    Название
  • 1
    807951T BRACKET, Fuel Cooler
    BRACKET, Fuel Cooler
  • 2
    807685T INSULATOR
    INSULATOR
  • 3
    861156A1 PUMP ASSEMBLY, Fuel (ELECTRIC)
    PUMP ASSEMBLY, Fuel (ELECTRIC)
  • 4
    22-807783A1 FITTING ASSEMBLY, 90 Degree
    FITTING ASSEMBLY, 90 Degree
  • 5
    25-805063 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 6
    22-808001A1 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 7
    25-805062 O-RING, (.530 x .082)
    O-RING, (.530 x .082)
  • 8
    8M0125847 COOLER KIT, Fuel
    COOLER KIT, Fuel
  • 9
    10-866114 SCREW, (.250-28) Special
    SCREW, (.250-28) Special
  • 10
    53-861414 RING, Retaining
    RING, Retaining
  • 11
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 12
    25-32509 QUAD RING
    QUAD RING
  • 13
    807979T BRACKET
    BRACKET
  • 14
    11-29598 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 15
    860349A1 REGULATOR ASSEMBLY, Fuel Pressure (36 PSI)
    REGULATOR ASSEMBLY, Fuel Pressure (36 PSI)
  • 16
    35-805406 FILTER
    FILTER
  • 17
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 18
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 19
    22-808002A1 FITTING KIT
    FITTING KIT
  • 20
    12-36533 WASHER, (.328 x .562 x .0312) Copper
    WASHER, (.328 x .562 x .0312) Copper
  • 21
    32-8M0063567 HOSE
    HOSE
  • 22
    22-860273 CONNECTOR
    CONNECTOR
  • 23
    10-808005 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 24
    269011 BUMPER, Rubber
    BUMPER, Rubber
  • 25
    807930T01 INSULATOR
    INSULATOR
  • 26
    32-861569A2 LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 26
    32-861729A1 LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 27
    25-805063 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 28
    25-805970 O-RING
    (Use with 861569A2 Fuel Line)
    O-RING
    (Use with 861569A2 Fuel Line)
  • 28
    25-805063 O-RING, (.301 x .070)
    (Use with 861729A1 Fuel Line)
    O-RING, (.301 x .070)
    (Use with 861729A1 Fuel Line)
  • 29
    11-860069 NUT, (.375-16)
    NUT, (.375-16)
  • 30
    32-8M0063567 HOSE
    HOSE
  • 31
    22-806689 FITTING, Tee
    FITTING, Tee
  • -
    27-811572A94 GASKET SET, Overhaul (454)
    GASKET SET, Overhaul (454)
  • -
    27-805396A92 GASKET SET, Overhaul (8.2L)
    GASKET SET, Overhaul (8.2L)
