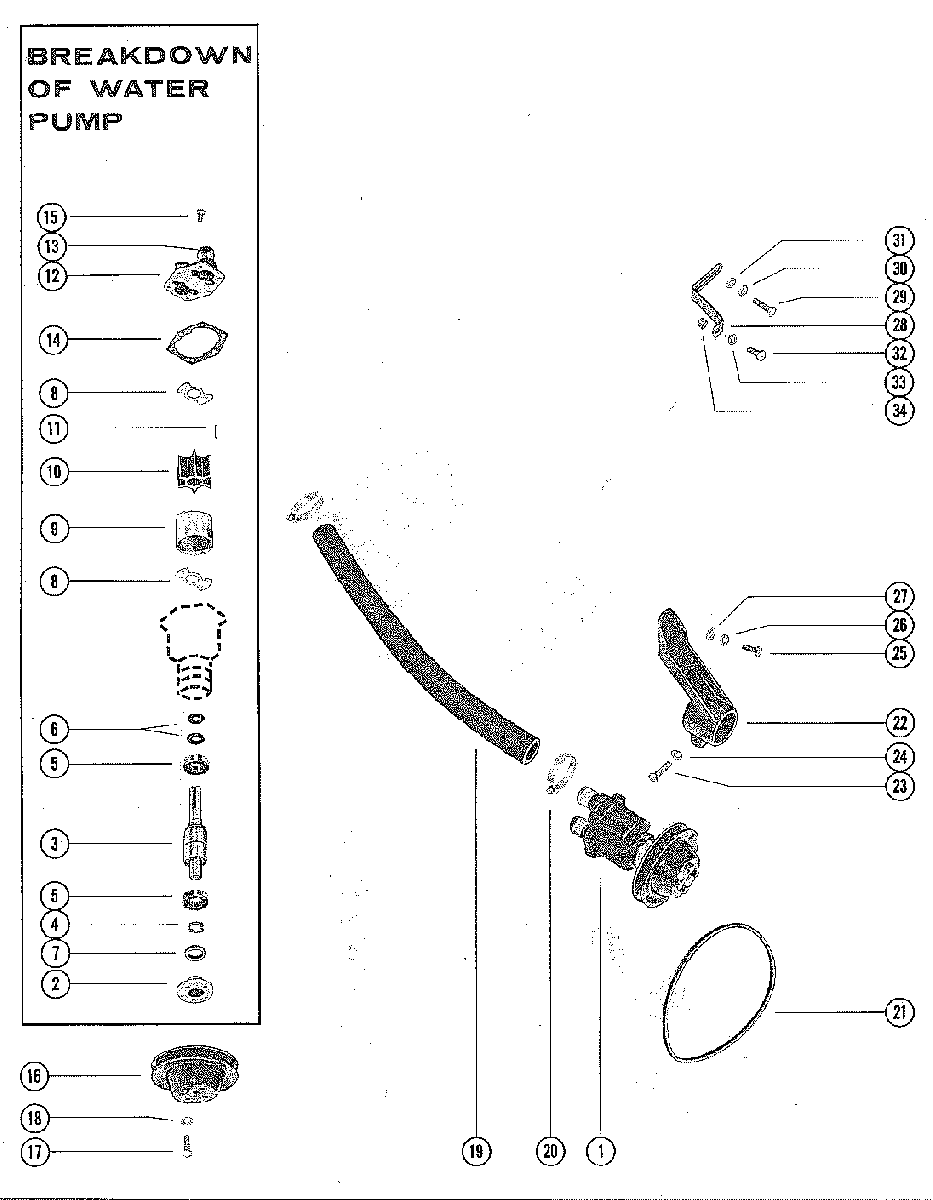

WATER PUMP ASSEMBLY, COMPLETE для Mercruiser - 390 GM 482 V-8 1969-1970 2781129 THRU 2825059

  • №
    Артикул
    Название
  • 1
    46-63450A3 WATER PUMP ASSEMBLY, COMPLETE
    WATER PUMP ASSEMBLY, COMPLETE
  • 2
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 3
    57967 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 4
    53-23720 RING, RETAINING - SHAFT AND BEARING
    RING, RETAINING - SHAFT AND BEARING
  • 5
    30-72961 BALL BEARING, WATER PUMP SHAFT
    BALL BEARING, WATER PUMP SHAFT
  • 6
    26-90562 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 7
    26-58111 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 8
    47405 WEAR PLATE
    WEAR PLATE
  • 9
    47529 INSERT, WATER PUMP
    INSERT, WATER PUMP
  • 10
    47-47519T IMPELLER
    IMPELLER
  • 11
    17-47526 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 12
    93871T COVER ASSEMBLY, WATER PUMP
    COVER ASSEMBLY, WATER PUMP
  • 13
    23-47511 SLEEVE, WATER PUMP COVER 2
    SLEEVE, WATER PUMP COVER 2
  • 14
    27-47410 GASKET, WATER PUMP COVER TO WATER PUMP BODY
    GASKET, WATER PUMP COVER TO WATER PUMP BODY
  • 15
    10-28635 SCREW, WATER PUMP COVER TO WATER PUMP BODY
    SCREW, WATER PUMP COVER TO WATER PUMP BODY
  • 16
    52822 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 17
    10-47277 SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")
    SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")
  • 18
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 19
    32-8M0062665 HOSE, WATER PUMP TO OIL COOLER (25")
    HOSE, WATER PUMP TO OIL COOLER (25")
  • 20
    54-815504220 CLAMP, HOSE TO WATER PUMP AND OIL COOLER
    CLAMP, HOSE TO WATER PUMP AND OIL COOLER
  • 21
    57-48121 BELT, WATER PUMP
    BELT, WATER PUMP
  • 22
    47489A2 BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 23
    10-34354 SCREW, WATER PUMP BRACKET ATTACHING (1 1/2")
    SCREW, WATER PUMP BRACKET ATTACHING (1 1/2")
  • 24
    13-35048 LOCKWASHER, WATER PUMP BRACKET SCREW
    LOCKWASHER, WATER PUMP BRACKET SCREW
  • 25
    10-48948 SCREW, WATER PUMP BRACKET TO ENGINE (7/8")
    SCREW, WATER PUMP BRACKET TO ENGINE (7/8")
  • 25
    10-47461 SCREW, WATER PUMP BRACKET TO ENGINE (1")
    SCREW, WATER PUMP BRACKET TO ENGINE (1")
  • 26
    13-32993 LOCKWASHER, WATER PUMP BRACKET SCREW
    LOCKWASHER, WATER PUMP BRACKET SCREW
  • 27
    12-74758 WASHER, WATER PUMP BRACKET SCREW
    WASHER, WATER PUMP BRACKET SCREW
  • 28
    47544 BRACE, WATER PUMP ADJUSTING
    BRACE, WATER PUMP ADJUSTING
  • 29
    10-34353 SCREW, ADJUSTING BRACE TO OIL PAN
    SCREW, ADJUSTING BRACE TO OIL PAN
  • 30
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 31
    12-20553 WASHER, ADJUSTING BRACE SCREW
    WASHER, ADJUSTING BRACE SCREW
  • 32
    10-35786 SCREW, ANJUSTING BRACE TO WATER PUMP BRACKET (1")
    SCREW, ANJUSTING BRACE TO WATER PUMP BRACKET (1")
  • 33
    27-37449 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 34
    11-46335 NUT, ADJUSTING BRACE SCREW
    NUT, ADJUSTING BRACE SCREW
