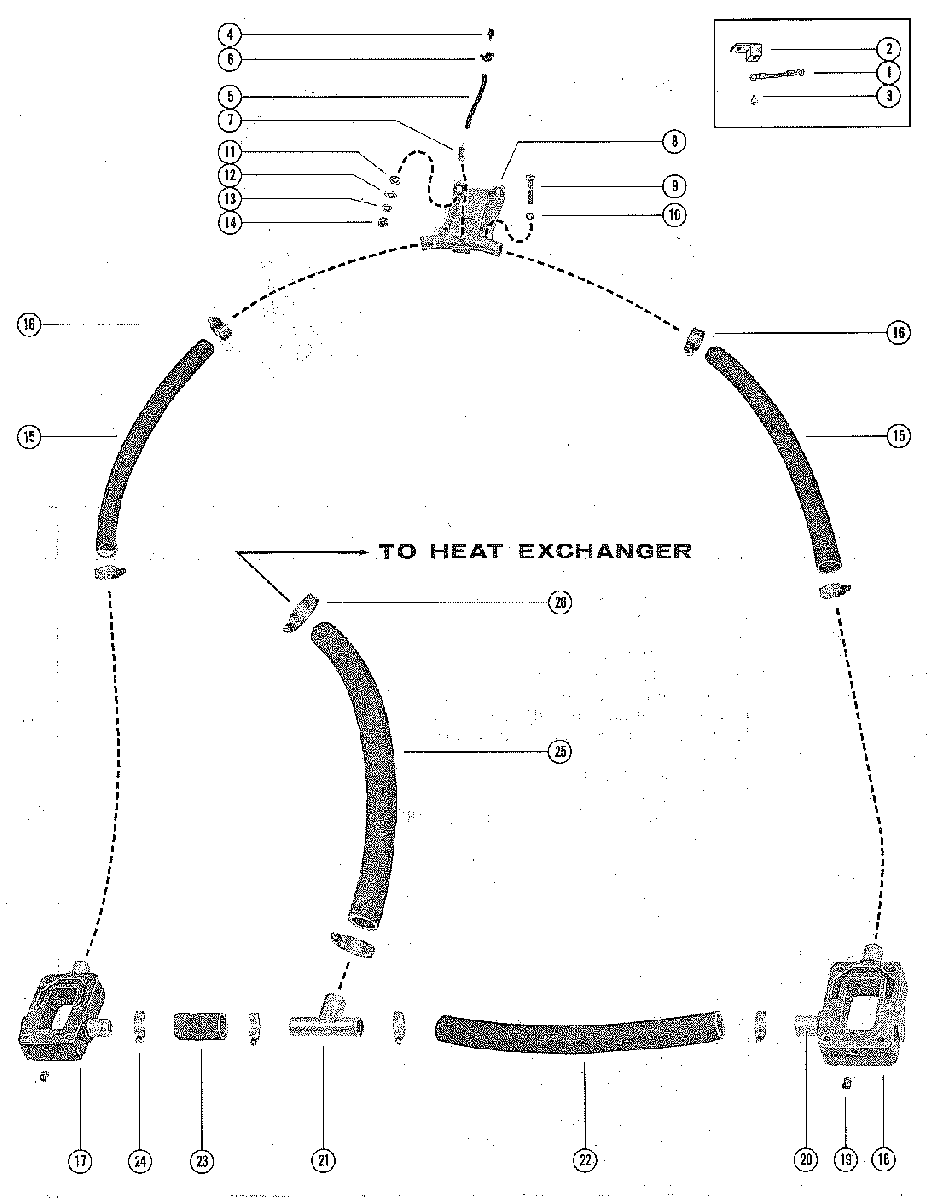

THERMOSTAT COVER AND WATER DISTRIBUTION HOUSING для Mercruiser - 390 GM 482 V-8 1969-1970 2781129 THRU 2825059

  • №
    Артикул
    Название
  • 1
    58036A2 RESISTOR ASSEMBLY , WATER TEMPERATURE
    RESISTOR ASSEMBLY , WATER TEMPERATURE
  • 2
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 3
    10-8M0113176 SCREW, RESISTOR TO TERMINAL BLOCK
    SCREW, RESISTOR TO TERMINAL BLOCK
  • 4
    22-67902 FITTING, AIR BLEED HOSE TO RESERVOIR
    FITTING, AIR BLEED HOSE TO RESERVOIR
  • 5
    32-57130 HOSE, AIR BLEED (6 1/2")
    HOSE, AIR BLEED (6 1/2")
  • 6
    54-20387 CLAMP, FITTINGS TO AIR BLEED HOSE
    CLAMP, FITTINGS TO AIR BLEED HOSE
  • 7
    22-73817 FITTING, AIR BLEED HOSE TO THERMOSTAT COVER
    FITTING, AIR BLEED HOSE TO THERMOSTAT COVER
  • 8
    57126 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 9
    10-35785 SCREW, THERMOSTAT COVER AND THERMOSTAT HOUSING TO MANIFOLD
    (3 1/4")
    SCREW, THERMOSTAT COVER AND THERMOSTAT HOUSING TO MANIFOLD
    (3 1/4")
  • 10
    13-35048 LOCKWASHER, THERMOSTAT COVER AND THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT COVER AND THERMOSTAT HOUSING SCREW
  • 11
    12-30771 WASHER, FIBER - THERMOSTAT COVER TO RESERVOIR STUD
    WASHER, FIBER - THERMOSTAT COVER TO RESERVOIR STUD
  • 12
    12-20084 WASHER, THERMOSTAT COVER TO RESERVOIR STUD
    WASHER, THERMOSTAT COVER TO RESERVOIR STUD
  • 13
    13-39107 LOCKWASHER, THERMOSTAT COVER TO RESERVOIR STUD
    LOCKWASHER, THERMOSTAT COVER TO RESERVOIR STUD
  • 14
    11-82670911 NUT, THERMOSTAT COVER TO RESERVOIR STUD
    NUT, THERMOSTAT COVER TO RESERVOIR STUD
  • 15
    32-8M0062614 HOSE, THERMOSTAT COVER TO WATER DISTRIBUTION HOUSING (23")
    HOSE, THERMOSTAT COVER TO WATER DISTRIBUTION HOUSING (23")
  • 16
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 17
    52884A1 HOUSING ASSEMBLY, WATER DISTRIBUTION (LEFT SIDE)
    HOUSING ASSEMBLY, WATER DISTRIBUTION (LEFT SIDE)
  • 18
    52885A1 HOUSING ASSEMBLY, WATER DISTRIBUTION (RIGHT SIDE)
    HOUSING ASSEMBLY, WATER DISTRIBUTION (RIGHT SIDE)
  • 19
    22-328022 PLUG, PIPE - WATER DISTRIBUTION HOUSING
    PLUG, PIPE - WATER DISTRIBUTION HOUSING
  • 20
    23-52020 SLEEVE, WATER DISTRIBUTION HOUSING
    SLEEVE, WATER DISTRIBUTION HOUSING
  • 21
    22-55133 TEE, FITTING
    TEE, FITTING
  • 22
    32-8M0062614 HOSE, WATER DISTRIBUTION HOUSING TO TEE (20")
    HOSE, WATER DISTRIBUTION HOUSING TO TEE (20")
  • 23
    32-8M0062614 HOSE, WATER DISTRIBUTION HOUSING TO TEE (2")
    HOSE, WATER DISTRIBUTION HOUSING TO TEE (2")
  • 24
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 25
    32-8M0062614 HOSE, HEAT EXCHANGER END CAP TO TEE (25 3/4")
    HOSE, HEAT EXCHANGER END CAP TO TEE (25 3/4")
  • 26
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
