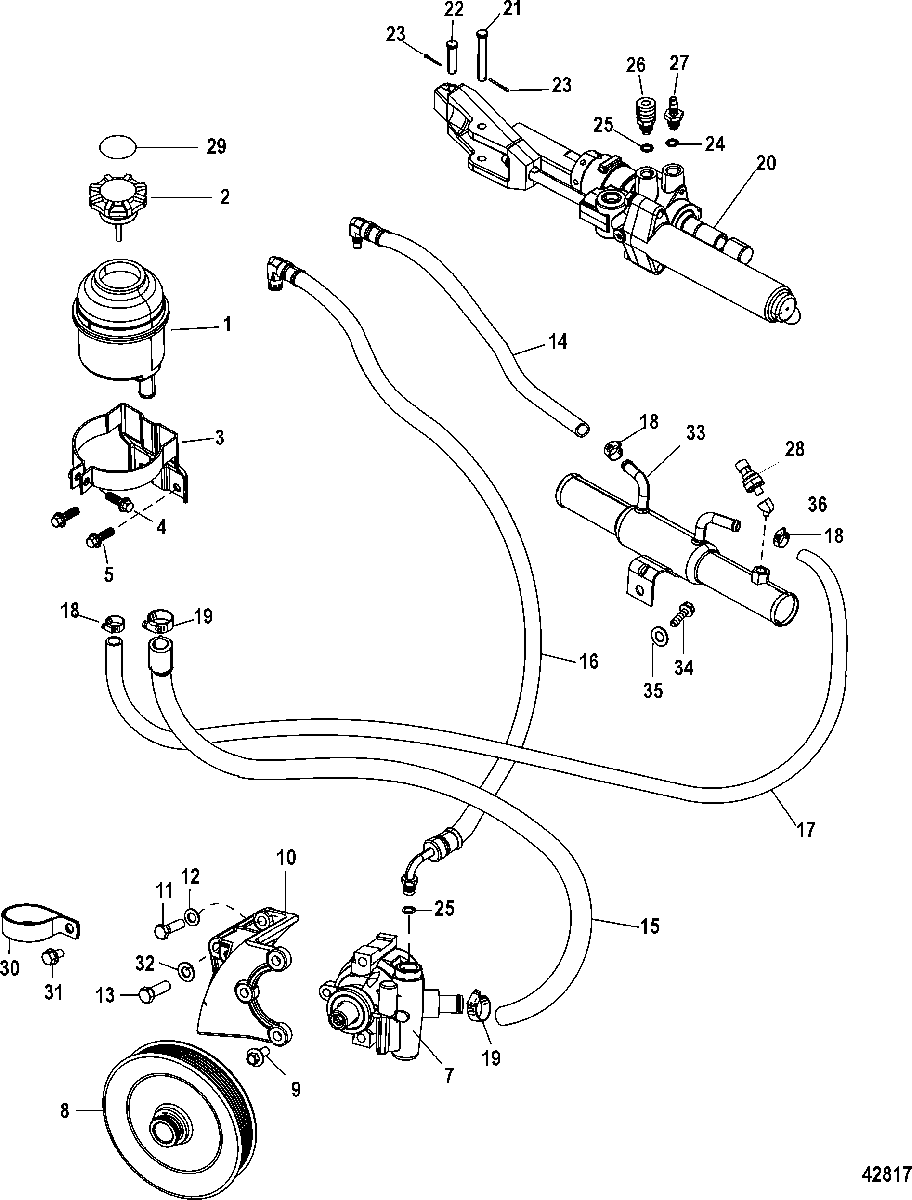

Steering Components для Mercruiser - 8.2L Mag EC (H.O. Model) 1A350340 THRU 2A041664

  • №
    Артикул
    Название
  • 1
    8M0121093 RESERVOIR ASSEMBLY, Oil, Power Steering
    RESERVOIR ASSEMBLY, Oil, Power Steering
  • 2
    8M0121096 CAP, Oil Reservoir - Black
    CAP, Oil Reservoir - Black
  • 3
    865262A02 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 4
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 5
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 7
    865710T PUMP, Power Steering
    PUMP, Power Steering
  • 8
    861578 PULLEY, Power Steering
    PULLEY, Power Steering
  • 9
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 10
    8M0045250 BRACKET, Power Steering Pump
    BRACKET, Power Steering Pump
  • 11
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 12
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 13
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 14
    32-865390015 HOSE, Male Quick Connect, Cylinder to Cooler
    HOSE, Male Quick Connect, Cylinder to Cooler
  • 15
    32-8M0046187 HOSE, Pump to Reservoir
    HOSE, Pump to Reservoir
  • 16
    32-8M0104321 HOSE, Pump to Cylinder
    HOSE, Pump to Cylinder
  • 17
    32-865717 HOSE, Reservoir to Cooler
    HOSE, Reservoir to Cooler
  • 18
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
  • 19
    54-815504210 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 20
    8M0063382 CYLINDER ASSEMBLY, Power Steering
    CYLINDER ASSEMBLY, Power Steering
  • 21
    17-15878 PIN, Clevis
    Long
    PIN, Clevis
    Long
  • 22
    17-16419 PIN, Clevis
    Short
    PIN, Clevis
    Short
  • 23
    18-46950 COTTER PIN
    COTTER PIN
  • 24
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 25
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 26
    22-865415 FITTING
    FITTING
  • 27
    22-865414001 FITTING
    FITTING
  • 28
    8M6000623 SENSOR
    SENSOR
  • 29
    37-8M2017892 DECAL, Power Steering Fluid
    DECAL, Power Steering Fluid
  • 30
    54-62494 CLIP
    CLIP
  • 31
    10-8055571 SCREW, (.3125-18 x .50)
    SCREW, (.3125-18 x .50)
  • 32
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 33
    8M0125856 COOLER, Power Steering
    COOLER, Power Steering
  • 34
    10-816585 SCREW, (.375-18 x .875)
    SCREW, (.375-18 x .875)
  • 35
    13-72521 LOCKWASHER, Internal Tooth
    LOCKWASHER, Internal Tooth
  • 36
    22-8M0123050 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
