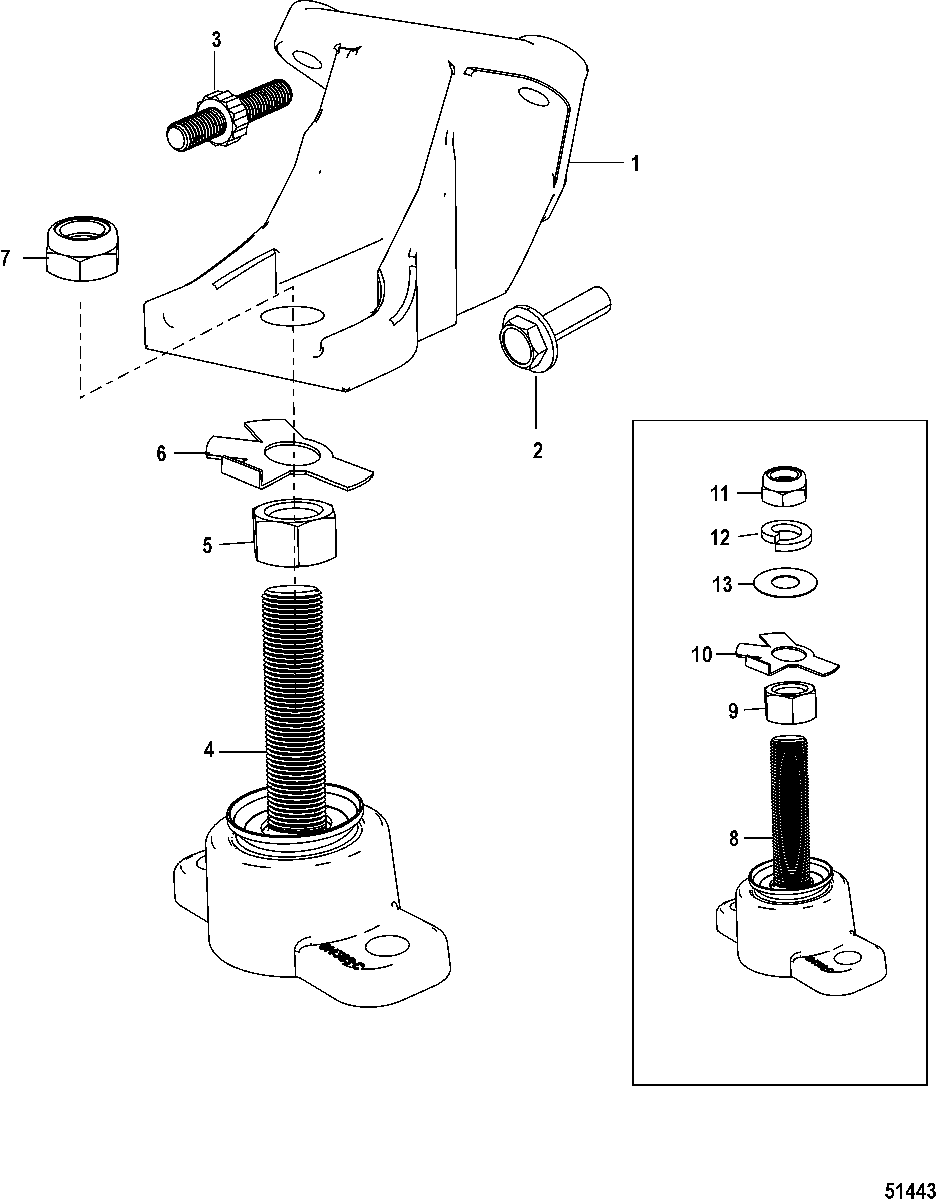

Engine Mounts для Mercruiser - 8.2L Mag EC (H.O. Model) 1A350340 THRU 2A041664

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, Engine Mounting
    BRACKET, Engine Mounting
  • 2
    10-865982007 SCREW, (.375-16 x 1.25) Hex Flange
    Port
    SCREW, (.375-16 x 1.25) Hex Flange
    Port
  • 2
    10-865982007 SCREW, (.375-16 x 1.25) Hex Flange
    Starboard
    SCREW, (.375-16 x 1.25) Hex Flange
    Starboard
  • 3
    16-8M2004610 STUD, (3/16-16 x 2.25)
    Starboard
    STUD, (3/16-16 x 2.25)
    Starboard
  • 4
    814263A1 BASE ASSEMBLY
    BASE ASSEMBLY
  • 5
    11-816331 NUT, (.750-16)
    NUT, (.750-16)
  • 6
    14-12657 TAB WASHER
    TAB WASHER
  • 7
    11-859126 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 8
    866708T01 BASE ASSEMBLY
    (SEACORE)
    BASE ASSEMBLY
    (SEACORE)
  • 9
    11-866710 NUT, (.750-16) Stainless Steel
    (SEACORE)
    NUT, (.750-16) Stainless Steel
    (SEACORE)
  • 10
    14-12657 TAB WASHER
    (SEACORE)
    TAB WASHER
    (SEACORE)
  • 11
    11-18304 NUT, Jam
    (SEACORE)
    NUT, Jam
    (SEACORE)
  • 12
    13-33164 LOCKWASHER, Stainless (.750)
    (SEACORE)
    LOCKWASHER, Stainless (.750)
    (SEACORE)
  • 13
    12-44164 WASHER
    (SEACORE)
    WASHER
    (SEACORE)
