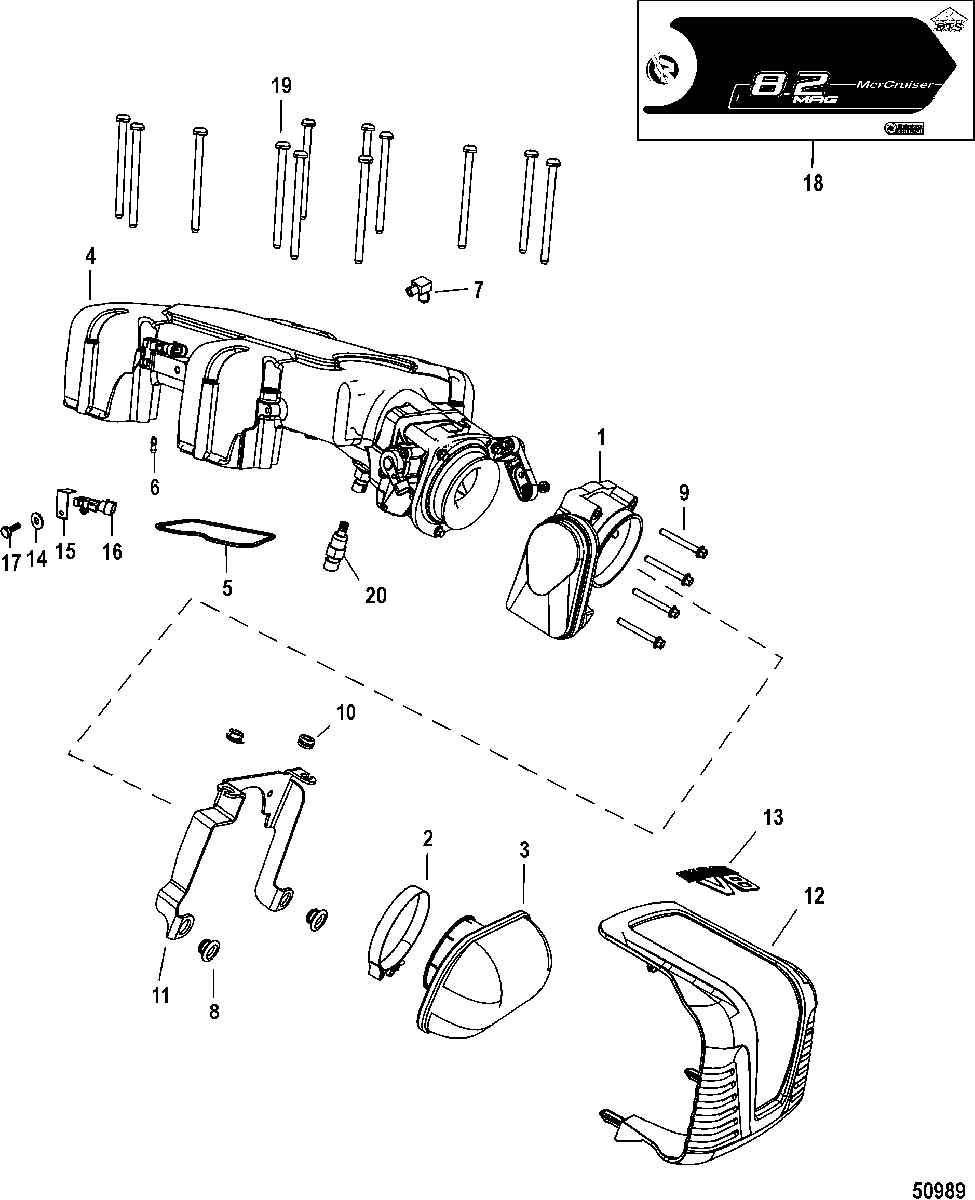

Throttle Body, Digital Throttle-Shift для Mercruiser - 8.2L Mag EC (Base Model) 2A051743 & Up

  • №
    Артикул
    Название
  • 1
    8M0045237 PLENUM ASSEMBLY
    PLENUM ASSEMBLY
  • 2
    805223T SENSOR
    SENSOR
  • 3
    8M0070932 BRACKET, Silencer
    Inline and Down angle only
    BRACKET, Silencer
    Inline and Down angle only
  • 4
    8M0046460 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 5
    8M0044310 SEAL, Intake Manifold
    SEAL, Intake Manifold
  • 6
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 7
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 8
    10-88552560 SCREW, (M6 x60)
    Inline and Down angle only
    SCREW, (M6 x60)
    Inline and Down angle only
  • 9
    25-8M2001671 GROMMET
    GROMMET
  • 10
    25-828249 GROMMET
    Inline and Down angle only
    GROMMET
    Inline and Down angle only
  • 11
    8M0113517 FLAME ARRESTOR
    FLAME ARRESTOR
  • 12
    98-8M0070740 COVER ASSEMBLY
    Inline and Down angle only
    COVER ASSEMBLY
    Inline and Down angle only
  • 13
    37-8M0056663 DECAL, Silencer
    Inline and Down angle only
    DECAL, Silencer
    Inline and Down angle only
  • 14
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 15
    8M0061478 BRACKET, Sensor
    BRACKET, Sensor
  • 16
    854445 SENSOR, MAP
    SENSOR, MAP
  • 17
    10-847401 SCREW, (#10-24 x .380)
    SCREW, (#10-24 x .380)
  • 18
    37-8M0054483 DECAL SET, 8.2L EC Base
    DECAL SET, 8.2L EC Base
  • 18
    37-8M0054484 DECAL SET, 8.2L EC High Output
    DECAL SET, 8.2L EC High Output
  • 18
    37-8M0054485 DECAL SET, 8.2L EC Base (SeaCore)
    DECAL SET, 8.2L EC Base (SeaCore)
  • 18
    37-8M0054486 DECAL SET, 8.2L EC High Output (SeaCore)
    DECAL SET, 8.2L EC High Output (SeaCore)
  • 18
    37-8M0054487 DECAL SET, 8.2L EC Base (MIE)
    DECAL SET, 8.2L EC Base (MIE)
  • 18
    37-8M0054488 DECAL SET, 8.2L EC High Output (MIE)
    DECAL SET, 8.2L EC High Output (MIE)
  • 19
    10-805391 SCREW, (.312-18 x 4.500)
    SCREW, (.312-18 x 4.500)
  • 20
    54-863393 CLAMP
    CLAMP
  • -
    37-8M2007500 DECAL, Emission Control
    DECAL, Emission Control
