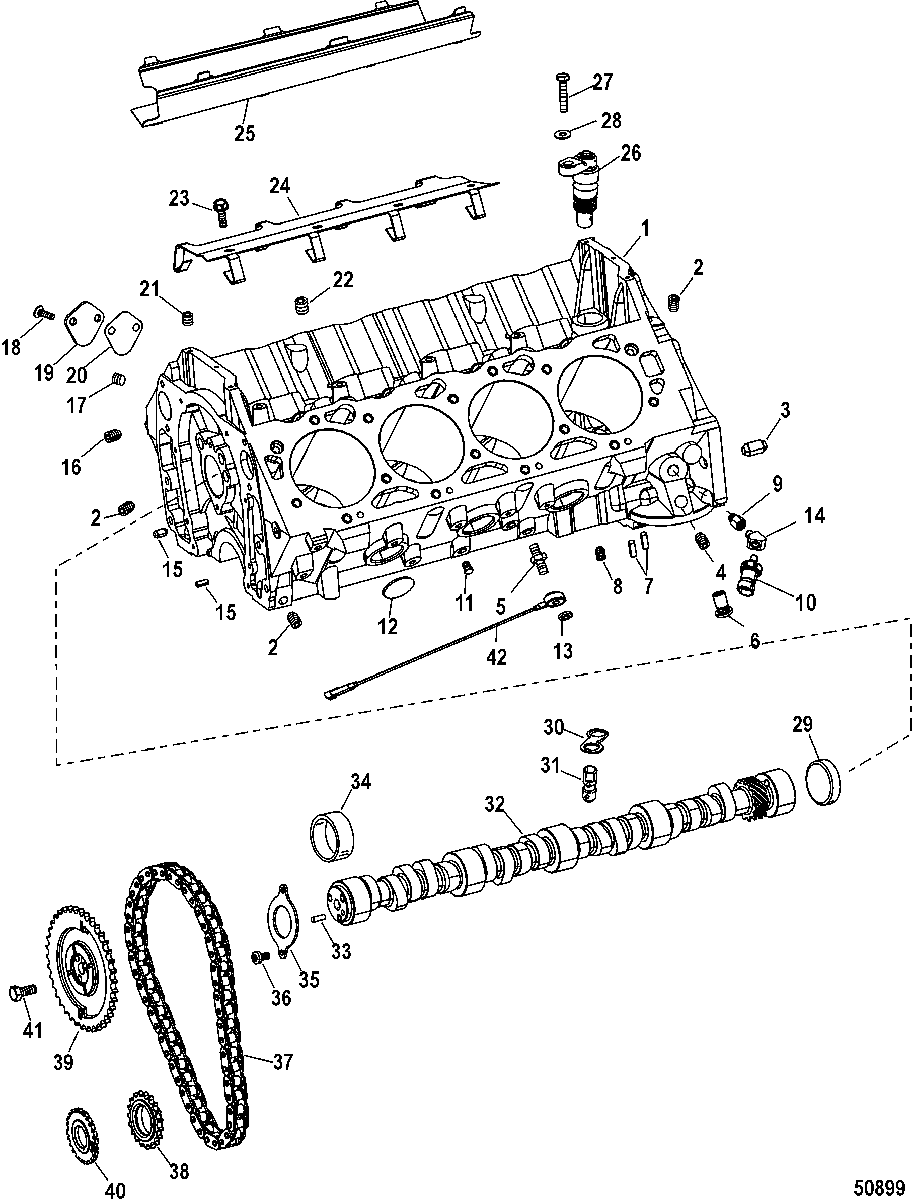

Cylinder Block And Camshaft для Mercruiser - 8.2L Mag EC (Base Model) 2A051743 & Up
-
№АртикулНазвание
-
-8M0074038 LONGBLOCK ASSEMBLYLONGBLOCK ASSEMBLY
-
1NSS NOT SOLD SEPARATE, BLOCK
(Order Longblock Assembly)NOT SOLD SEPARATE, BLOCK
(Order Longblock Assembly) -
222-32561 PLUG, Pipe - Allen Head (.250-18)PLUG, Pipe - Allen Head (.250-18)
-
317-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel HousingPIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing
-
422-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
516-862915 STUD, (.250-18/M10 Special)STUD, (.250-18/M10 Special)
-
68M0044048 VALVE ASSEMBLY, Pressure ReliefVALVE ASSEMBLY, Pressure Relief
-
717-843378 PIN, Dowel (.250) Bottom Of BlockPIN, Dowel (.250) Bottom Of Block
-
822-36373 PLUG, (.375-18) Hex - Steel
- NOTE: Bottom Of Block Oil PlugPLUG, (.375-18) Hex - Steel
- NOTE: Bottom Of Block Oil Plug -
822-36373 PLUG, (.375-18) Hex - Steel
- NOTE: Rear Of Block Oil PlugsPLUG, (.375-18) Hex - Steel
- NOTE: Rear Of Block Oil Plugs -
922-64013 FITTING, (.375 Male To .125 Female)FITTING, (.375 Male To .125 Female)
-
10881879T11 SENSOR, Pressure (0 - 100 PSI)SENSOR, Pressure (0 - 100 PSI)
-
1122-36382 FITTING, (.250-18 x .62) Brass, Lower Side Of BlockFITTING, (.250-18 x .62) Brass, Lower Side Of Block
-
1219-34270 EXPANSION PLUG, (1.625)EXPANSION PLUG, (1.625)
-
1311-826292 NUT, (M10) Brass/Nickel Plated
MCMNUT, (M10) Brass/Nickel Plated
MCM -
1422-8M0123050 FITTING, Elbow (45 Degree)FITTING, Elbow (45 Degree)
-
1517-843378 PIN, Dowel (.250) Timing CoverPIN, Dowel (.250) Timing Cover
-
1622-8M0044324 PLUG, (1/4 Inch), PipePLUG, (1/4 Inch), Pipe
-
1722-36373 PLUG, (.375-18) Hex - SteelPLUG, (.375-18) Hex - Steel
-
2122-390721 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
2222-479452 PLUG, Oil GalleryPLUG, Oil Gallery
-
2310-8M0044047 SCREW, (.312-18 x .62), Lifter Guide Retainer to BlockSCREW, (.312-18 x .62), Lifter Guide Retainer to Block
-
248M0050807 RETAINER, Lifter GuideRETAINER, Lifter Guide
-
25845756T SHEILD, Oil IntakeSHEILD, Oil Intake
-
268M0114791 DRIVE, Oil PumpDRIVE, Oil Pump
-
2710-8M0043925 SCREW, (.312-18 x 1.0), Oil Pump Driver to BlockSCREW, (.312-18 x 1.0), Oil Pump Driver to Block
-
2812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
2919-94140 EXPANSION PLUGEXPANSION PLUG
-
30845754 GUIDE, LifterGUIDE, Lifter
-
31849947T01 LIFTERLIFTER
-
32400-8M0046343 CAMSHAFTCAMSHAFT
-
3317-8M0058586 PIN, DowelPIN, Dowel
-
3423-85684 BEARING SETBEARING SET
-
35845941 RETAINER, Gear ThrustRETAINER, Gear Thrust
-
3610-845943 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
378M0045987 CHAIN, TimingCHAIN, Timing
-
3843-843004 SPROCKET, CrankshaftSPROCKET, Crankshaft
-
398M0117487 SPROCKET, CamshaftSPROCKET, Camshaft
-
408M0050760 WHEEL, Sensor TargetWHEEL, Sensor Target
-
4110-8M0043993 SCREW, (.312-18 x.75), Camshaft Spocket to CamshaftSCREW, (.312-18 x.75), Camshaft Spocket to Camshaft
-
428M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
