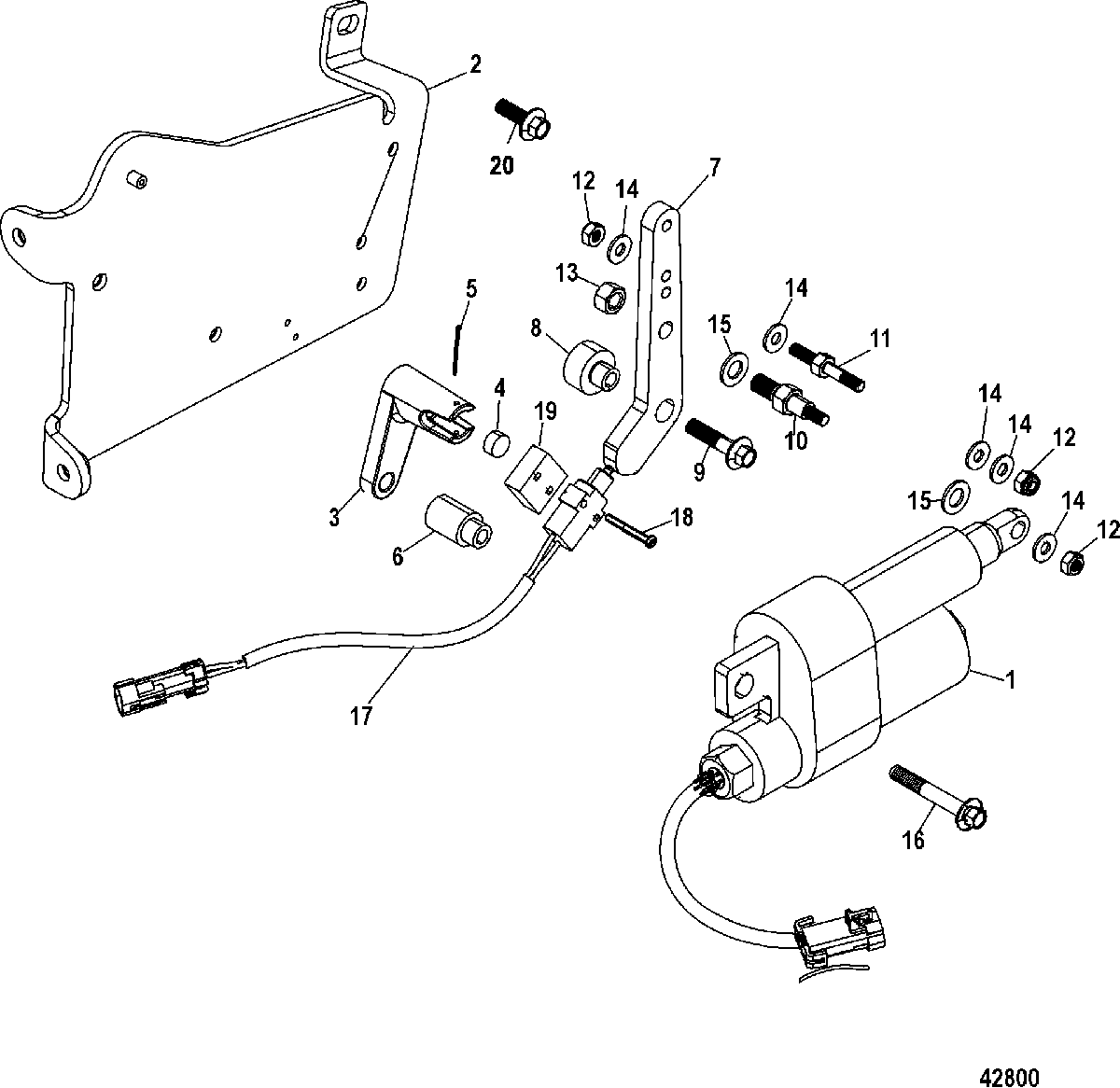

Shift Bracket, Digital Throttle and Shift для Mercruiser - 8.2L Mag EC (Base Model) 1A350340 THRU 2A041664

  • №
    Артикул
    Название
  • -
    8M0045725 SHIFT ACTUATOR ASSEMBLY, Complete
    SHIFT ACTUATOR ASSEMBLY, Complete
  • 1
    879194T46 SHIFT ACTUATOR
    SHIFT ACTUATOR
  • 2
    8M0045249 BRACKET, Shift Plate
    BRACKET, Shift Plate
  • 3
    864616 RETAINER, Shift Cable
    RETAINER, Shift Cable
  • 4
    23-98828 SPACER
    SPACER
  • 5
    18-36002 COTTER PIN
    COTTER PIN
  • 6
    23-863133 SPACER, Actuator
    SPACER, Actuator
  • 7
    8M2018371 LEVER, Shift Arm
    LEVER, Shift Arm
  • 8
    23-863132 SPACER, Shift Arm
    SPACER, Shift Arm
  • 9
    10-4010735 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 10
    16-864361 STUD
    STUD
  • 11
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 12
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 13
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 14
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 15
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 16
    10-40011155 SCREW, (M8 x 55) Stainless Steel
    SCREW, (M8 x 55) Stainless Steel
  • 17
    87-8M0052939 SWITCH
    SWITCH
  • 18
    10-865076 SCREW, (6-32 x 1.25)
    SCREW, (6-32 x 1.25)
  • 19
    23-864386 SPACER, Switch
    SPACER, Switch
  • 20
    10-817505 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
