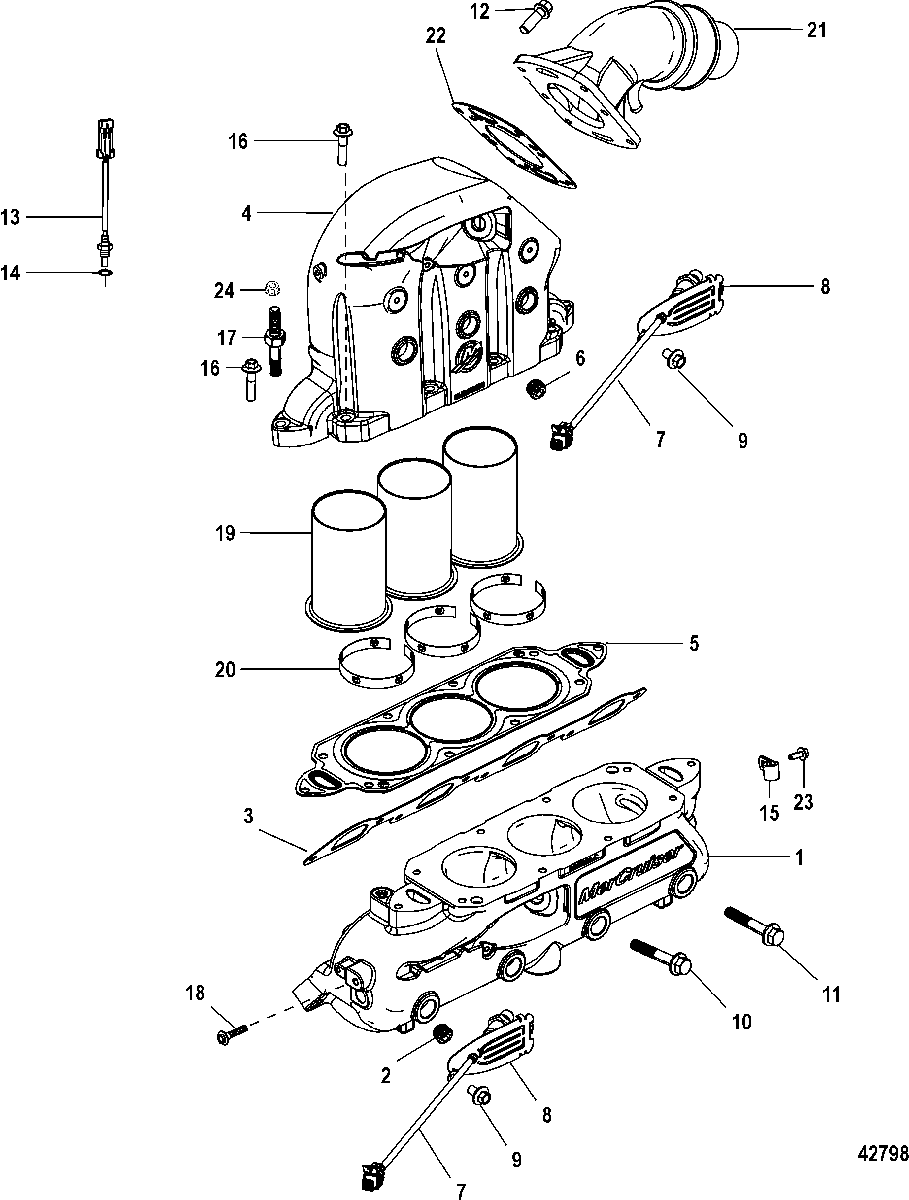

Exhaust Manifold And Elbow для Mercruiser - 8.2L Mag EC (Base Model) 1A350340 THRU 2A041664

  • №
    Артикул
    Название
  • 1
    8M0099070 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 3
    27-8M0065690 GASKET, Cylinder Head to Exhaust Manifold
    GASKET, Cylinder Head to Exhaust Manifold
  • 4
    8M0098227 COLLECTOR, Exhaust
    COLLECTOR, Exhaust
  • 5
    27-866390 GASKET, Collector, Exhaust
    GASKET, Collector, Exhaust
  • 6
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 7
    8M2003959 SENSOR, Oxygen
    SENSOR, Oxygen
  • 8
    8M2004289 COVER, Oxygen Sensor
    COVER, Oxygen Sensor
  • 9
    10-4010610 SCREW, (M6 x 10) Stainless Steel
    SCREW, (M6 x 10) Stainless Steel
  • 10
    10-8M0058302 SCREW, (.375-16 x 1.75), Exhaust Manifold to Cylinder Head
    SCREW, (.375-16 x 1.75), Exhaust Manifold to Cylinder Head
  • 11
    10-8M0058303 SCREW, (.375-16 x 3.0), Exhaust Manifold to Cylinder Head
    SCREW, (.375-16 x 3.0), Exhaust Manifold to Cylinder Head
  • 12
    10-8M0140384 SCREW, (M8) Hex Flange
    SCREW, (M8) Hex Flange
  • 13
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 14
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 15
    54-65653 CLIP
    CLIP
  • 16
    10-4009535 SCREW, (M8 x 35)
    SN# 1A351717 & Below
    SCREW, (M8 x 35)
    SN# 1A351717 & Below
  • 16
    10-4009535 SCREW, (M8 x 35)
    SN# 1A351718 & Up
    SCREW, (M8 x 35)
    SN# 1A351718 & Up
  • 17
    16-8M2017900 STUD, (M8), Coolant Reservoir Bracket
    SN# 1A351717 & Below
    STUD, (M8), Coolant Reservoir Bracket
    SN# 1A351717 & Below
  • 18
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 19
    879288T47 CATALYST
    CATALYST
  • 20
    866775 RING, Retention, Catalyst
    RING, Retention, Catalyst
  • 21
    8M0058471 ELBOW, Exhaust, No Rise
    ELBOW, Exhaust, No Rise
  • 21
    879288T80 ELBOW, Exhaust, No Rise
    (MIE V-Drive only)
    ELBOW, Exhaust, No Rise
    (MIE V-Drive only)
  • 21
    8M0062051 RISER KIT, Exhaust - 2 Inch Rise (Contains 2 Elbows and Manifold to Elbow Hose)
    RISER KIT, Exhaust - 2 Inch Rise (Contains 2 Elbows and Manifold to Elbow Hose)
  • 21
    8M0062052 RISER KIT, Exhaust - 4 Inch Rise (Contains 2 Elbows and Manifold to Elbow Hose)
    RISER KIT, Exhaust - 4 Inch Rise (Contains 2 Elbows and Manifold to Elbow Hose)
  • 21
    8M0062053 RISER KIT, Exhaust - 6 Inch Rise (Contains 2 Elbows and Manifold to Elbow Hose)
    RISER KIT, Exhaust - 6 Inch Rise (Contains 2 Elbows and Manifold to Elbow Hose)
  • 21
    8M0062054 RISER KIT, Exhaust - 8 Inch Rise (Contains 2 Elbows and Manifold to Elbow Hose)
    RISER KIT, Exhaust - 8 Inch Rise (Contains 2 Elbows and Manifold to Elbow Hose)
  • 22
    27-8M2003931 GASKET (Elbow 0 rise includes 1 gasket each)
    GASKET (Elbow 0 rise includes 1 gasket each)
  • 23
    10-4010612 SCREW, (M6 x 12) Stainless Steel
    SCREW, (M6 x 12) Stainless Steel
  • 24
    11-826365 NUT, (M8), Coolant Reservoir Bracket
    SN# 1A351717 & Below
    NUT, (M8), Coolant Reservoir Bracket
    SN# 1A351717 & Below
