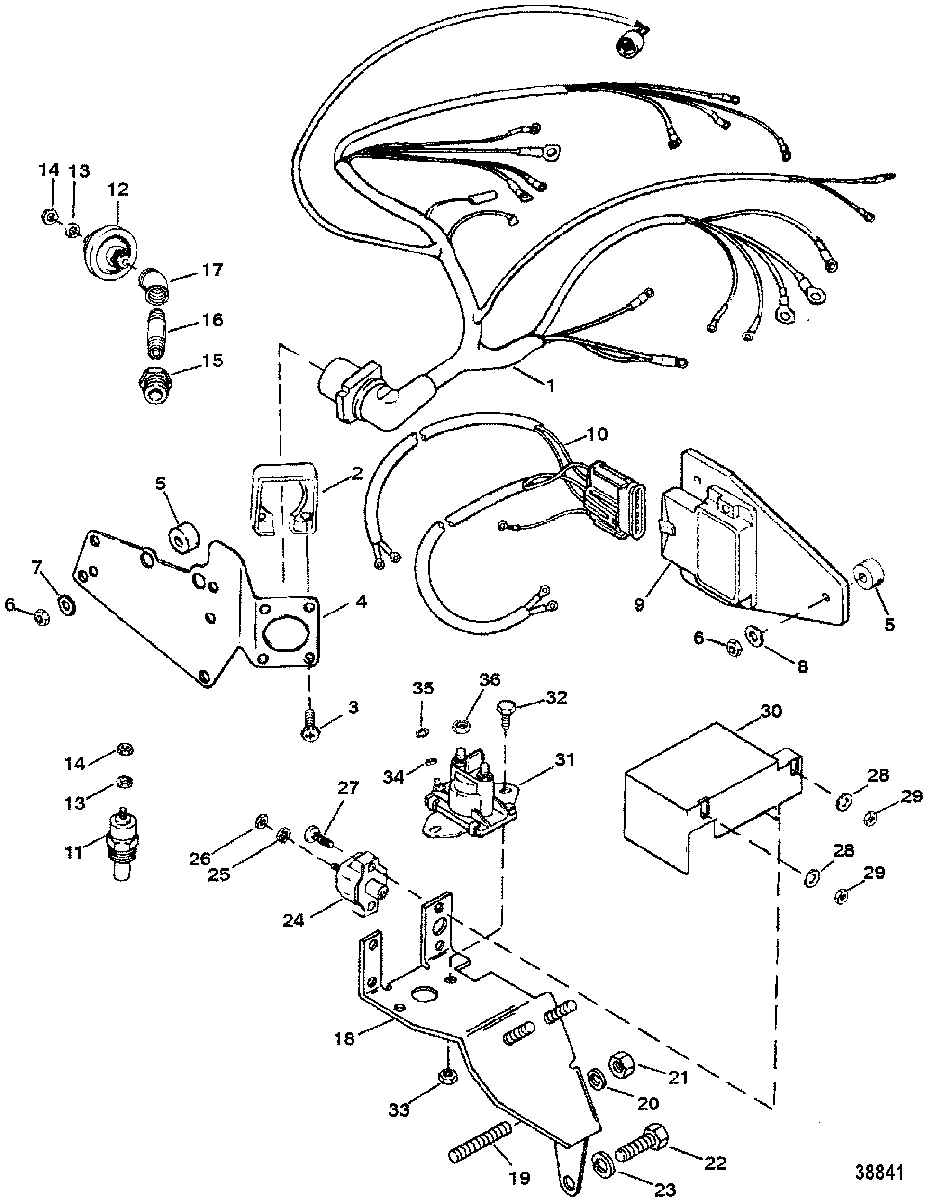

WIRING HARNESS/ELECTRICAL(MOUNTED ON EXHAUST ELBOW)TB IV для Mercruiser - 7.4L BRAVO (GEN. V) GM 454 V-8 1992-1996 0D603118 THRU 0F800699
-
№АртикулНазвание
-
184-96020A6 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
498493A2 BRACKETBRACKET
-
523-92152T SPACER, (.27 x .75 x .38)SPACER, (.27 x .75 x .38)
-
611-64015 NUT, (.250-20)NUT, (.250-20)
-
723-806981 SPACERSPACER
-
812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
915248A1 MODULE KIT, IgnitionMODULE KIT, Ignition
-
1084-15275A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
11806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
1149734 SENDER ASSEMBLY, Water Temperature
(DUAL STATION)SENDER ASSEMBLY, Water Temperature
(DUAL STATION) -
128M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
1237293T SENDER ASSEMBLY, Oil Pressure
(DUAL STATION)SENDER ASSEMBLY, Oil Pressure
(DUAL STATION) -
1313-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1411-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1522-48556 BUSHING , Reducer (.250 To .125)BUSHING , Reducer (.250 To .125)
-
1622-885153 NIPPLENIPPLE
-
1722-46932 ELBOWELBOW
-
18818384T1 BRACKETBRACKET
-
1916-64281 STUD, (.375-16/.375-24 x 1.880)STUD, (.375-16/.375-24 x 1.880)
-
2013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2111-46335 NUT, (.375-24)NUT, (.375-24)
-
2210-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
2313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
2488-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2710-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2812-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2911-61356 NUT, (#10-32) Reduced HexNUT, (#10-32) Reduced Hex
-
3085-96819T INSULATORINSULATOR
-
3189-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
3210-96138 SCREW, (1/4-28 x 5/8) (5/8 IN.)SCREW, (1/4-28 x 5/8) (5/8 IN.)
-
3311-20088 NUTNUT
-
3413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3511-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
3611-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
