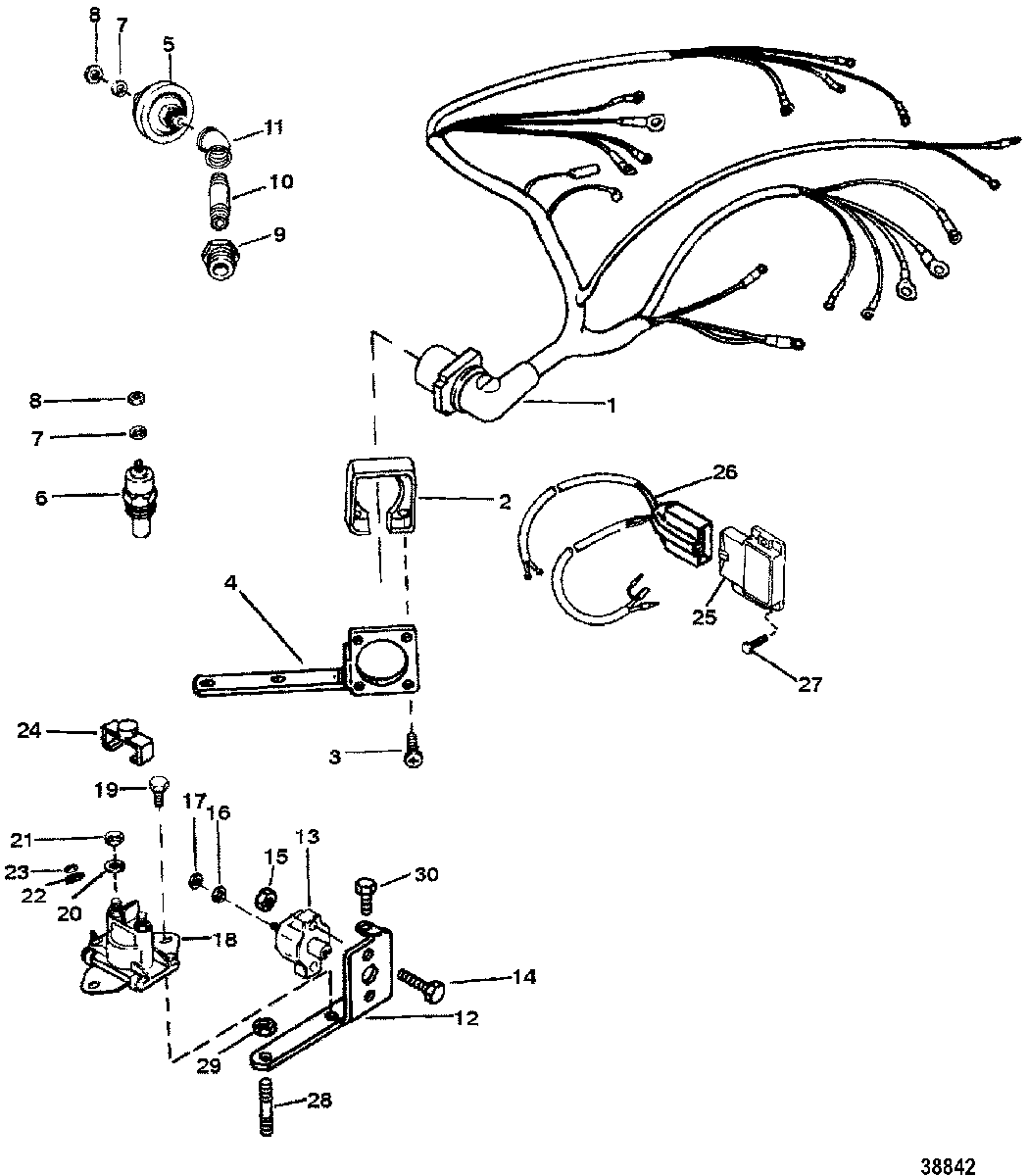

WIRING HARNESS/ELECTRICAL(MOUNTED ON DISTRIBUTOR) TB IV для Mercruiser - 7.4L BRAVO (GEN. V) GM 454 V-8 1992-1996 0D603118 THRU 0F800699
-
№АртикулНазвание
-
184-806217A10 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4805468T BRACKETBRACKET
-
58M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
537293T SENDER ASSEMBLY, Oil Pressure
(DUAL STATION)SENDER ASSEMBLY, Oil Pressure
(DUAL STATION) -
6806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
649734 SENDER ASSEMBLY, Water Temperature
(DUAL STATION)SENDER ASSEMBLY, Water Temperature
(DUAL STATION) -
713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
922-48556 BUSHING , Reducer (.250 To .125)BUSHING , Reducer (.250 To .125)
-
1022-885153 NIPPLENIPPLE
-
1122-46932 ELBOWELBOW
-
12899719T01 BRACKET, ElectricalBRACKET, Electrical
-
1388-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1410-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
1511-61356 NUT, (#10-32) Reduced HexNUT, (#10-32) Reduced Hex
-
1613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1711-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1889-96158T SOLENOID, StarterSOLENOID, Starter
-
1910-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2111-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2311-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2485-97861 INSULATORINSULATOR
-
25805361T2 IGNITION MODULE
(7.4L BRAVO I/II & 454 MAGNUM)IGNITION MODULE
(7.4L BRAVO I/II & 454 MAGNUM) -
25821125T02 IGNITION MODULE
(7.4L BRAVO III)IGNITION MODULE
(7.4L BRAVO III) -
2684-805363A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2710-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2816-805459 STUD, Mercathode MountingSTUD, Mercathode Mounting
-
2911-46438 NUT, (#10-32)NUT, (#10-32)
-
3010-805565 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
