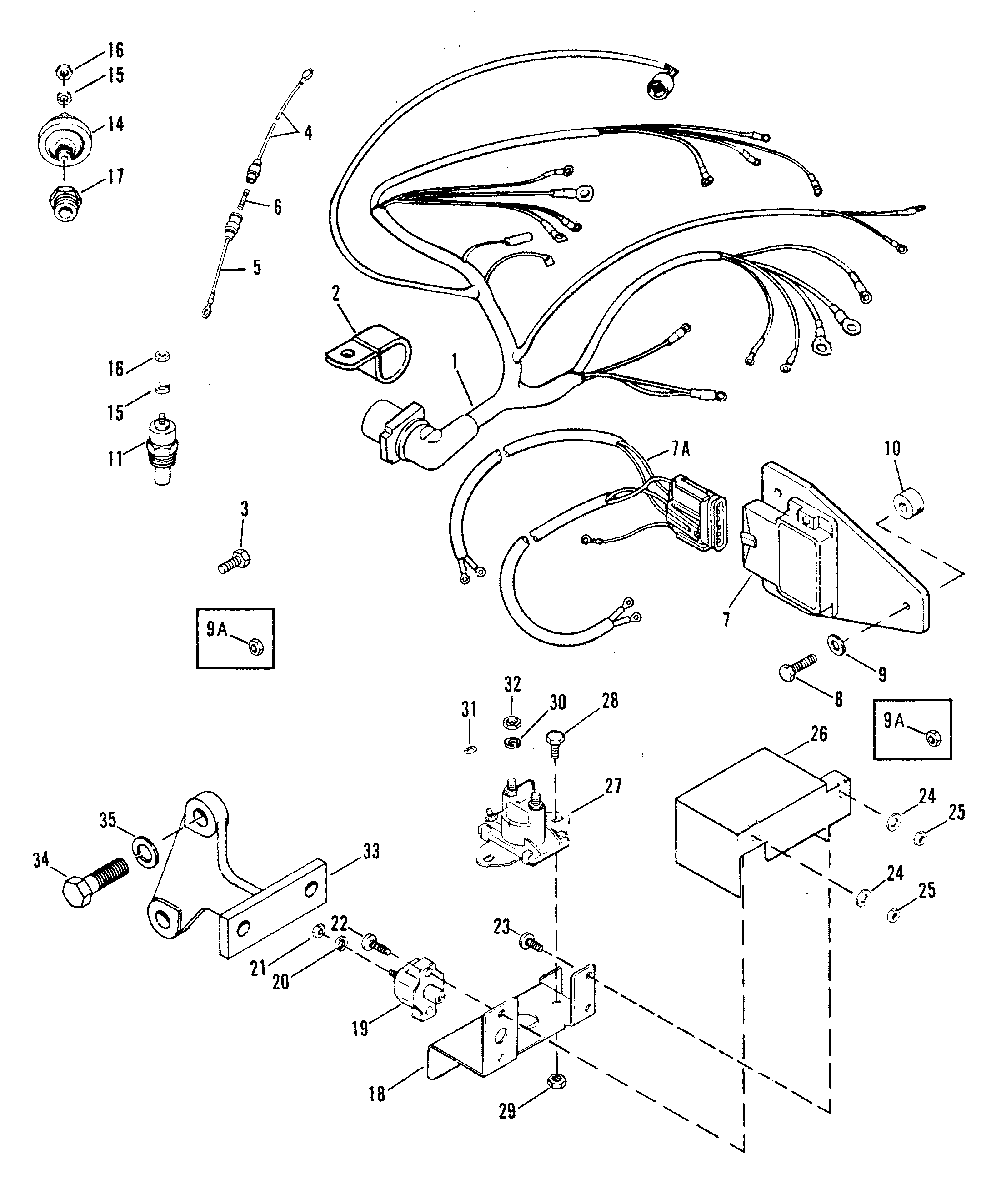

WIRING HARNESS, ELECTRICAL AND IGNITION для Mercruiser - 502 MAG. BRAVO GM 502 V-8 1990-1992 0C878221 THRU 0D824588

  • №
    Артикул
    Название
  • 1
    84-96020A6 WIRING HARNESS
    WIRING HARNESS
  • 2
    54-816398 CLAMP
    CLAMP
  • 3
    10-65746 SCREW (CAST IRON EXHAUST MANIFOLD)
    SCREW (CAST IRON EXHAUST MANIFOLD)
  • 4
    84-95084A9 WIRE (LONG - RED)
    WIRE (LONG - RED)
  • 5
    84-95084A10 WIRE (SHORT - RED)
    WIRE (SHORT - RED)
  • 6
    88-79091 FUSE (20 AMP)
    FUSE (20 AMP)
  • 7
    879288A10 IGNITION AMPLIFIER
    IGNITION AMPLIFIER
  • 7A
    84-15275A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 8
    10-76630 SCREW - CAST IRON EXHAUST ELBOW
    SCREW - CAST IRON EXHAUST ELBOW
  • 9
    13-26992 LOCKWASHER - CAST IRON EXHAUST ELBOW
    LOCKWASHER - CAST IRON EXHAUST ELBOW
  • 9A
    11-64015 NUT (STAINLESS STEEL EXHAUST ELBOW)
    NUT (STAINLESS STEEL EXHAUST ELBOW)
  • 10
    23-92152T SPACER
    SPACER
  • 11
    806490T WATER TEMPERATURE SENDER
    WATER TEMPERATURE SENDER
  • 11
    49734 WATER TEMPERATURE SENDER (DUAL)
    WATER TEMPERATURE SENDER (DUAL)
  • 14
    8M0068784 OIL PRESSURE SENDER
    OIL PRESSURE SENDER
  • 14
    37293T OIL PRESSURE SENDER (DUAL)
    OIL PRESSURE SENDER (DUAL)
  • 15
    13-26996 LOCKWASHER
    LOCKWASHER
  • 16
    11-68219 NUT
    NUT
  • 17
    22-64013 REDUCER
    REDUCER
  • 18
    97163 BRACKET
    BRACKET
  • 19
    88-11178A01 CIRCUIT BREAKER (50 AMP)
    CIRCUIT BREAKER (50 AMP)
  • 20
    13-26996 LOCKWASHER
    LOCKWASHER
  • 21
    11-68219 NUT
    NUT
  • 22
    10-45862 SCREW (7/8")
    SCREW (7/8")
  • 23
    10-22028 SCREW
    SCREW
  • 24
    12-56681 WASHER
    WASHER
  • 25
    11-46438 NUT
    NUT
  • 26
    85-96819T INSULATOR
    INSULATOR
  • 27
    89-96054T STARTER SOLENOID
    STARTER SOLENOID
  • 28
    10-96138 SCREW (5/8")
    SCREW (5/8")
  • 29
    11-20088 NUT
    NUT
  • 30
    13-26992 LOCKWASHER
    LOCKWASHER
  • 31
    11-26419 NUT (8-32)
    NUT (8-32)
  • 32
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
  • 33
    96940T BRACKET
    BRACKET
  • 34
    10-37612 SCREW (1-1/4") - 3/8-16 THREAD
    SCREW (1-1/4") - 3/8-16 THREAD
  • 35
    13-35048 LOCKWASHER - 3/8-16 THREAD
    LOCKWASHER - 3/8-16 THREAD
  • 34
    10-47462 SCREW (1-1/4") - 7/16-14 THREAD
    SCREW (1-1/4") - 7/16-14 THREAD
  • 35
    13-32993 LOCKWASHER - 7/16-14 THREAD
    LOCKWASHER - 7/16-14 THREAD
