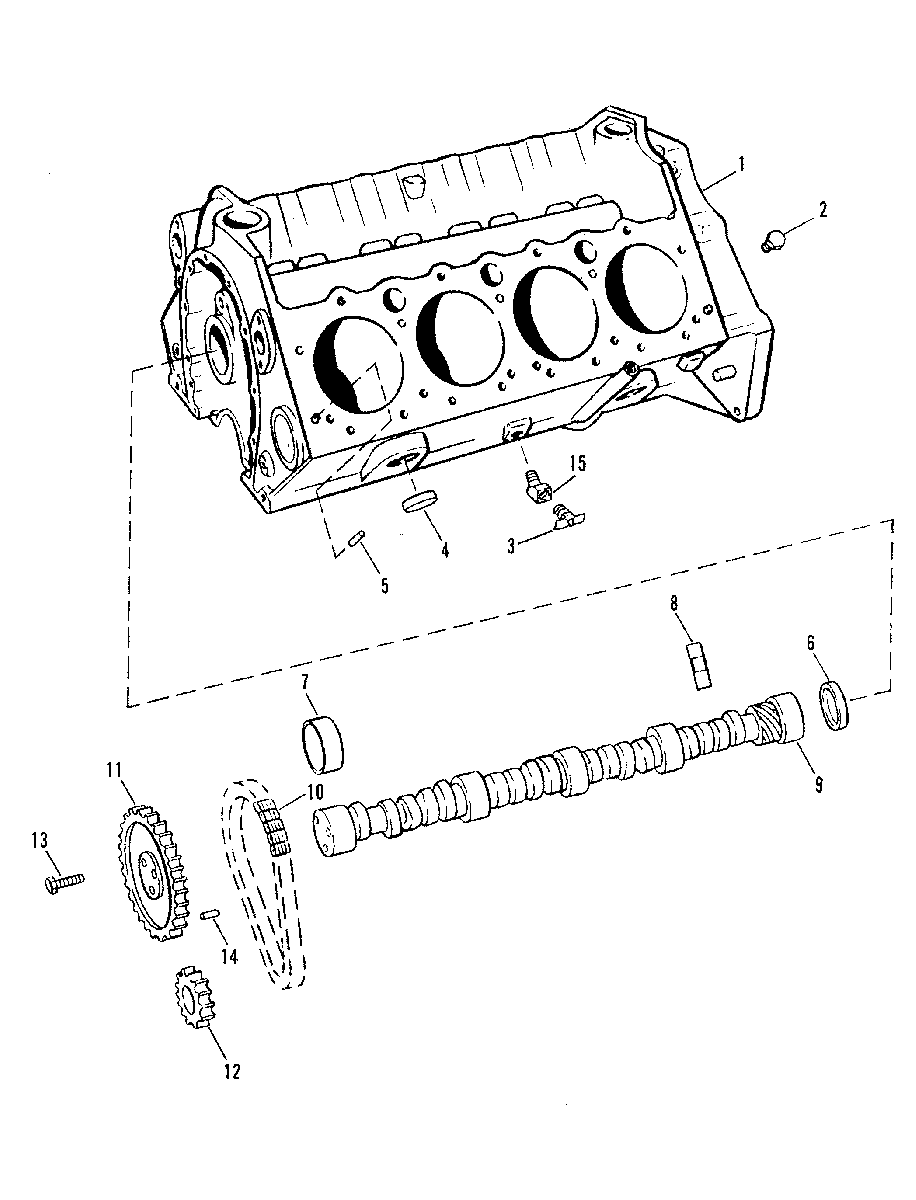

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 502 MAG. BRAVO GM 502 V-8 1990-1992 0C878221 THRU 0D824588

  • №
    Артикул
    Название
  • 1
    842-811206 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    22-32561 PIPE PLUG (1/4")
    PIPE PLUG (1/4")
  • 2
    22-12524 PIPE PLUG (3/8")
    PIPE PLUG (3/8")
  • 3
    22-16951Q1 DRAIN COCK
    DRAIN COCK
  • 4
    22-69300 EXPANSION PLUG (1-3/4" DIA.)
    EXPANSION PLUG (1-3/4" DIA.)
  • 5
    17-52190 DOWEL PIN
    DOWEL PIN
  • 6
    19-94140 EXPANSION PLUG
    EXPANSION PLUG
  • 7
    23-85684 BEARING UNIT (SET)
    BEARING UNIT (SET)
  • 8
    811583 LIFTER
    LIFTER
  • 9
    431-9830 CAMSHAFT
    CAMSHAFT
  • 10
    61728 TIMING CHAIN
    (Double Roller Chain)
    TIMING CHAIN
    (Double Roller Chain)
  • 10
    845796T CHAIN, TIMING
    (Single Roller Chain)
    CHAIN, TIMING
    (Single Roller Chain)
  • 11
    43-61726 CAMSHAFT SPROCKET
    (Double Roller Chain)
    CAMSHAFT SPROCKET
    (Double Roller Chain)
  • 11
    43-811578 CAMSHAFT, SPROCKET
    (Single Roller Chain)
    CAMSHAFT, SPROCKET
    (Single Roller Chain)
  • 12
    43-61727 CRANKSHAFT TIMING SPROCKET
    (Double Roller Chain)
    CRANKSHAFT TIMING SPROCKET
    (Double Roller Chain)
  • 12
    43-845794T CRANKSHAFT, SPROCKET
    (Single Roller Chain)
    CRANKSHAFT, SPROCKET
    (Single Roller Chain)
  • 13
    10-8M0043993 BOLT
    BOLT
  • 14
    17-843378 DOWEL PIN (1/4" DIA.)
    DOWEL PIN (1/4" DIA.)
  • 15
    22-37682 ELBOW
    ELBOW
