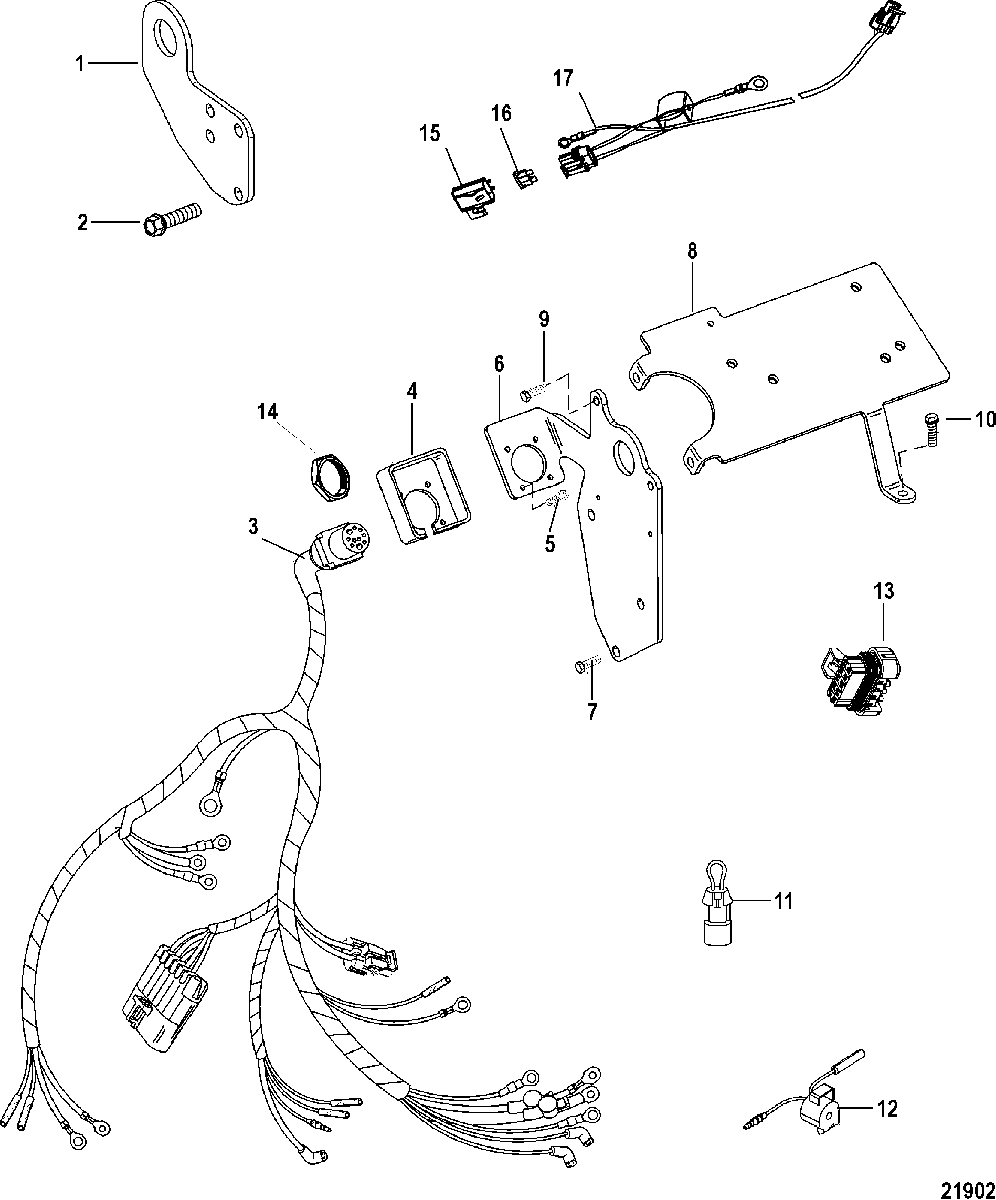

Lifting Brackets and Wiring Harness для Mercruiser - 496 MAG (H.O. Model) 0W060000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    862346T BRACKET, Front Lifting Eye
    BRACKET, Front Lifting Eye
  • 2
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 3
    84-865457T05 HARNESS ASSEMBLY, Engine
    (Mechanical Throttle and Shift)
    HARNESS ASSEMBLY, Engine
    (Mechanical Throttle and Shift)
  • 3
    84-865653T03 HARNESS ASSEMBLY, Engine
    (Digital Throttle and Shift)
    HARNESS ASSEMBLY, Engine
    (Digital Throttle and Shift)
  • NS
    84-865677T01 HARNESS ASSEMBLY, Transom
    HARNESS ASSEMBLY, Transom
  • 4
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 5
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 6
    862347T BRACKET, Lifting Eye, Rear
    BRACKET, Lifting Eye, Rear
  • 7
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 8
    8629091 BRACKET, Shift
    BRACKET, Shift
  • 9
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 10
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 11
    830796A1 CONNECTOR ASSEMBLY (Black Wire)
    CONNECTOR ASSEMBLY (Black Wire)
  • 12
    816492A15 ALARM KIT
    ALARM KIT
  • 13
    8M3000055 CAP, Weather Proof (10 Pin Transom Harness)
    CAP, Weather Proof (10 Pin Transom Harness)
  • 14
    11-889664 NUT, (1.500-18) Black Nylon
    NUT, (1.500-18) Black Nylon
  • 15
    84-8M0113732 HARNESS ASSEMBLY, Clean Power
    HARNESS ASSEMBLY, Clean Power
  • 16
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 17
    828054 COVER, Fuse
    COVER, Fuse
