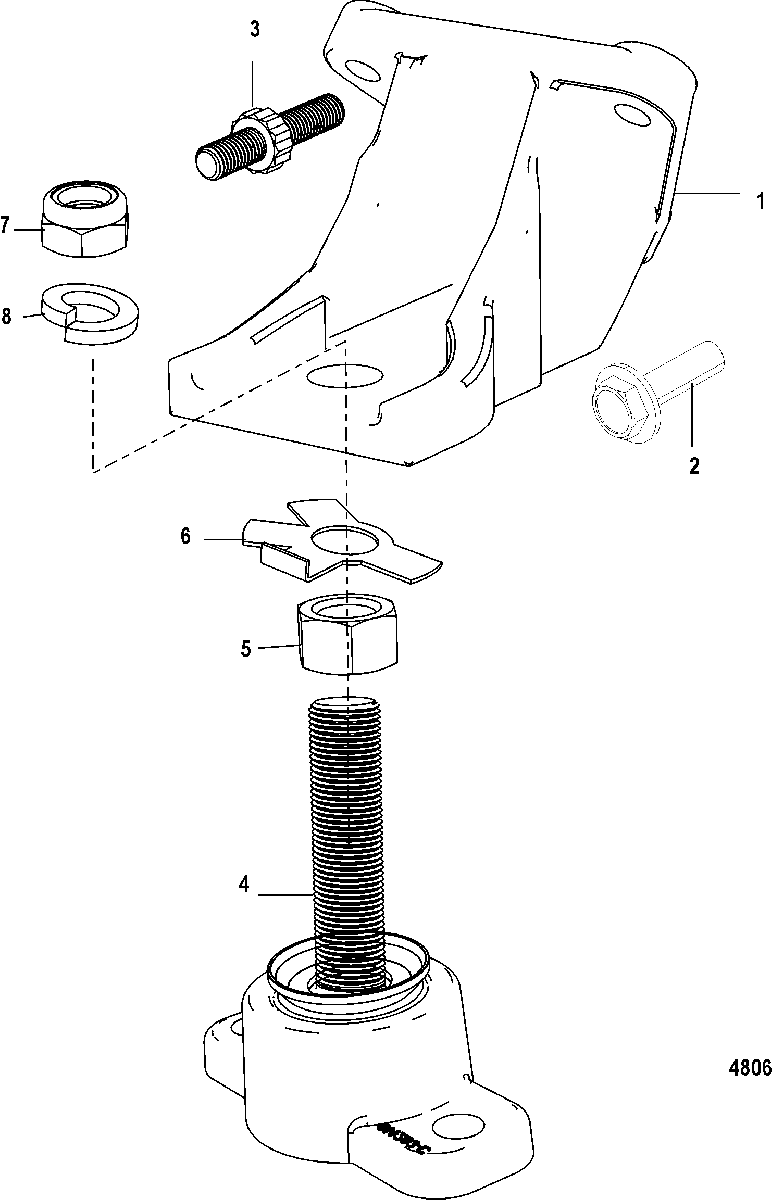

Engine Mounts для Mercruiser - 496 MAG (H.O. Model) 0W060000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, Engine Mounting
    BRACKET, Engine Mounting
  • 2
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 3
    16-861580 STUD, Double Ended Metric
    Port
    STUD, Double Ended Metric
    Port
  • 3
    10-40001195 SCREW, (M10 x 30)
    Starboard
    SCREW, (M10 x 30)
    Starboard
  • 4
    814263A1 BASE ASSEMBLY
    BASE ASSEMBLY
  • 5
    11-816331 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 6
    14-12657 TAB WASHER, Tab
    TAB WASHER, Tab
  • 7
    11-859126 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 8
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
