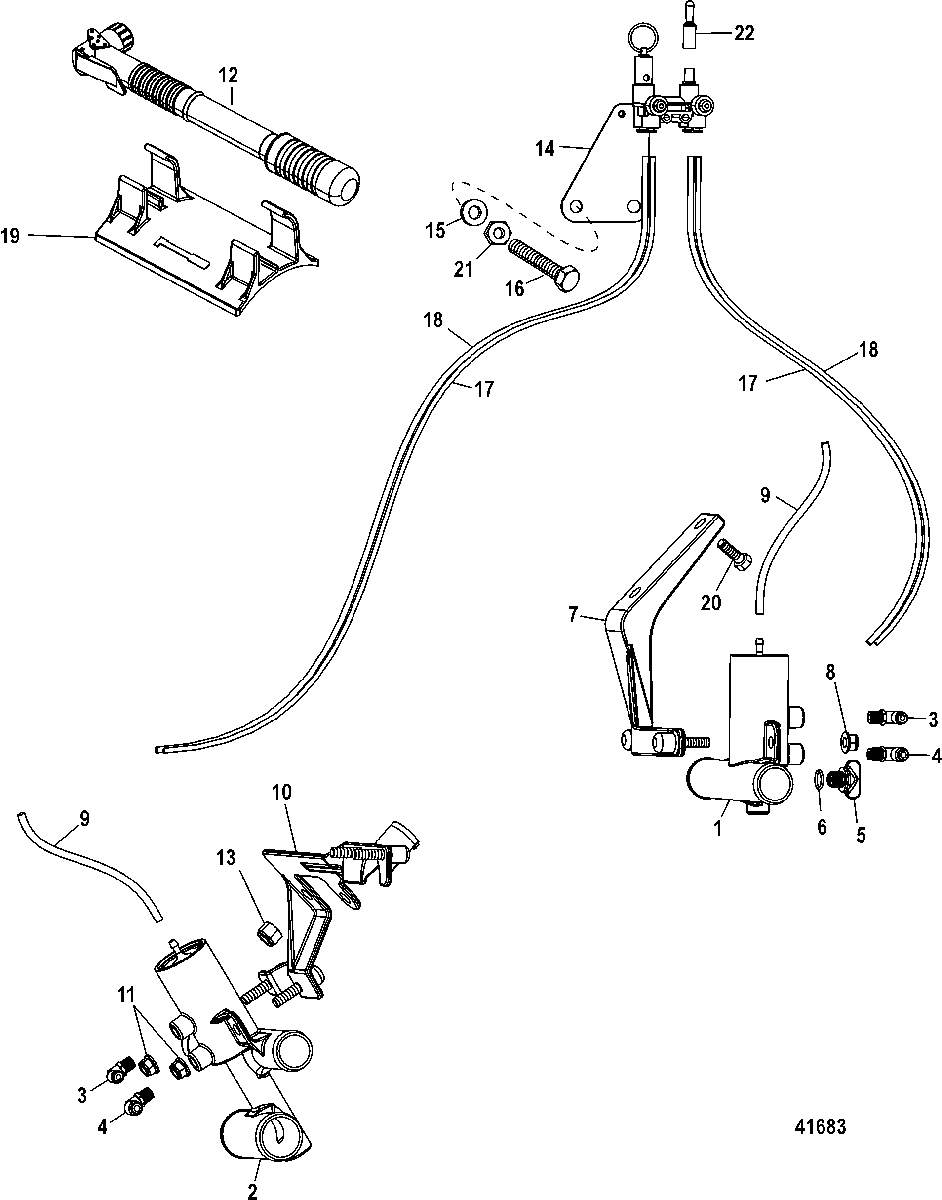

Water Drain System для Mercruiser - 496 MAG (H.O. Model) 0M687144 THRU 0W059999

  • №
    Артикул
    Название
  • 1
    863717A2 ACTUATOR ASSEMBLY, Water Drain
    (Port)
    ACTUATOR ASSEMBLY, Water Drain
    (Port)
  • 2
    863716A2 ACTUATOR ASSEMBLY, Water Drain
    (Starboard)
    ACTUATOR ASSEMBLY, Water Drain
    (Starboard)
  • 3
    22-8M0082320 FITTING, Orange - Straight, Air
    FITTING, Orange - Straight, Air
  • 3
    22-8M0082322 FITTING, Orange (90 Degree), Air
    FITTING, Orange (90 Degree), Air
  • 4
    22-8M0082319 FITTING, Gray - Straight, Air
    FITTING, Gray - Straight, Air
  • 4
    22-8M0082321 FITTING, Gray (90 Degree) , Air
    FITTING, Gray (90 Degree) , Air
  • 5
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, Drain
    PLUG KIT, (.500-13) Royal Blue, Drain
  • 6
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 7
    863863T BRACKET, Actuator Mounting
    (Port)
    BRACKET, Actuator Mounting
    (Port)
  • 8
    11-826365 NUT, (M8), Nylock
    NUT, (M8), Nylock
  • 9
    32-8630561 HOSE, (42.00 Inches Bulk) Black, Air
    HOSE, (42.00 Inches Bulk) Black, Air
  • 10
    863862T BRACKET, Actuator/Pump Mounting
    (Starboard)
    BRACKET, Actuator/Pump Mounting
    (Starboard)
  • 11
    11-826292 NUT, (M10) Brass/Nickel Plated, Nylock
    NUT, (M10) Brass/Nickel Plated, Nylock
  • 12
    863057 PUMP, Air
    PUMP, Air
  • 13
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 14
    862969A2 MANIFOLD ASSEMBLY, Air
    MANIFOLD ASSEMBLY, Air
  • 15
    12-4002314 WASHER
    WASHER
  • 16
    10-864887 SCREW, (M5)
    SCREW, (M5)
  • 17
    32-8M0077561 HOSE, (40.00 Inches Bulk) Green
    (Starboard 40 in.)(Cut Port Hose To 23 In.)
    HOSE, (40.00 Inches Bulk) Green
    (Starboard 40 in.)(Cut Port Hose To 23 In.)
  • 18
    32-8M0062601 HOSE, (40.00 Inches Bulk) Grey
    (Starboard 40 in.)(Cut Port Hose To 23 In.)
    HOSE, (40.00 Inches Bulk) Grey
    (Starboard 40 in.)(Cut Port Hose To 23 In.)
  • 19
    863059 BRACKET, Air Pump
    BRACKET, Air Pump
  • 20
    10-4000374 SCREW, (M10 x 16)
    SCREW, (M10 x 16)
  • 21
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 22
    19-883503 CAP, Service Point
    CAP, Service Point
