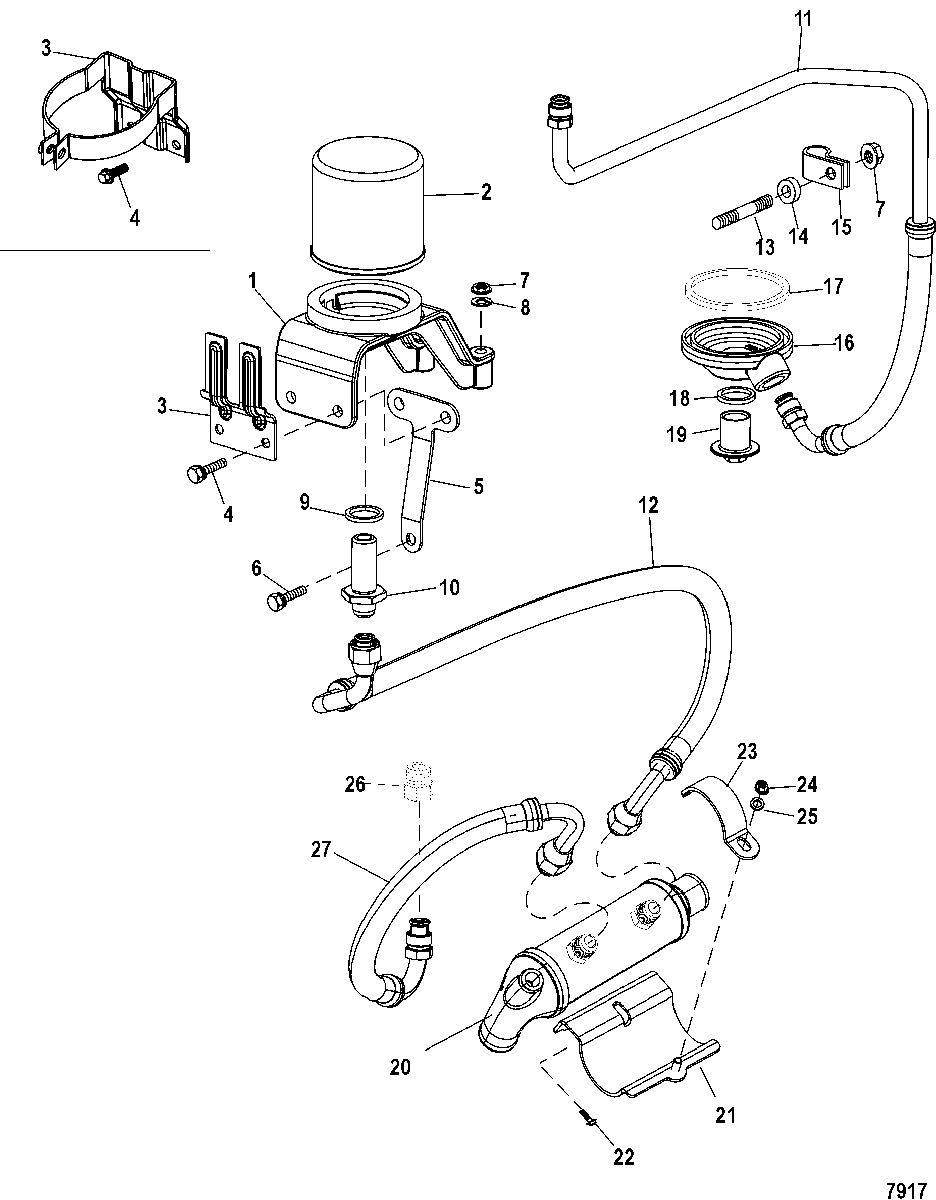

Remote Oil System для Mercruiser - 496 MAG (H.O. Model) 0M687144 THRU 0W059999

№

Артикул

Название
1

862342T BRACKET, Remote Oil Filter

BRACKET, Remote Oil Filter
2

35-866340Q03 FILTER, Oil

FILTER, Oil
3

863119 BRACKET, Power Steering Reservoir
SN# 0W000004 & Up

BRACKET, Power Steering Reservoir
SN# 0W000004 & Up
3

865262A02 BRACKET ASSEMBLY
SN# 0W000005 & Below

BRACKET ASSEMBLY
SN# 0W000005 & Below
4

10-4000354 SCREW, (M8 x 30)
SN# 0W000004 & Up

SCREW, (M8 x 30)
SN# 0W000004 & Up
4

10-4000354 SCREW, (M8 x 30)
SN# 0W000005 & Below

SCREW, (M8 x 30)
SN# 0W000005 & Below
5

8629102 BRACKET, Support

BRACKET, Support
6

10-4010716 SCREW, (M8 x 16), Flange

SCREW, (M8 x 16), Flange
7

11-4002030 NUT, (M8)

NUT, (M8)
8

12-12038 WASHER

WASHER
9

26-42077 SEAL

SEAL
10

22-806328 FITTING, Oil Adaptor

FITTING, Oil Adaptor
11

32-863899 HOSE, Oil, Filter to Adaptor

HOSE, Oil, Filter to Adaptor
12

32-863900 HOSE, Oil, Filter to Cooler

HOSE, Oil, Filter to Cooler
13

16-424632 STUD, (M8 x 37.1)

STUD, (M8 x 37.1)
14

23-34948 SPACER

SPACER
15

54-475451 CLIP

CLIP
16

862870T ADAPTOR, Oil Filter

ADAPTOR, Oil Filter
17

26-862957 SEAL, Oil Filter Adaptor

SEAL, Oil Filter Adaptor
18

26-42077 SEAL, Swivel Tube

SEAL, Swivel Tube
19

22-862958 FITTING, Oil Filter Adaptor

FITTING, Oil Filter Adaptor
20

863904T COOLER, Oil

COOLER, Oil
21

863905T BRACKET, Oil Cooler

BRACKET, Oil Cooler
22

10-4000327 SCREW, (M6 x 14)

SCREW, (M6 x 14)
23

807445T CLAMP, Cooler Bracket

CLAMP, Cooler Bracket
24

11-401366 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel
25

12-22937 WASHER

WASHER
26

22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF to .50 Inch Inv. Flare)

CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF to .50 Inch Inv. Flare)
27

32-863915 HOSE, Oil, Cooler to Adaptor

HOSE, Oil, Cooler to Adaptor
