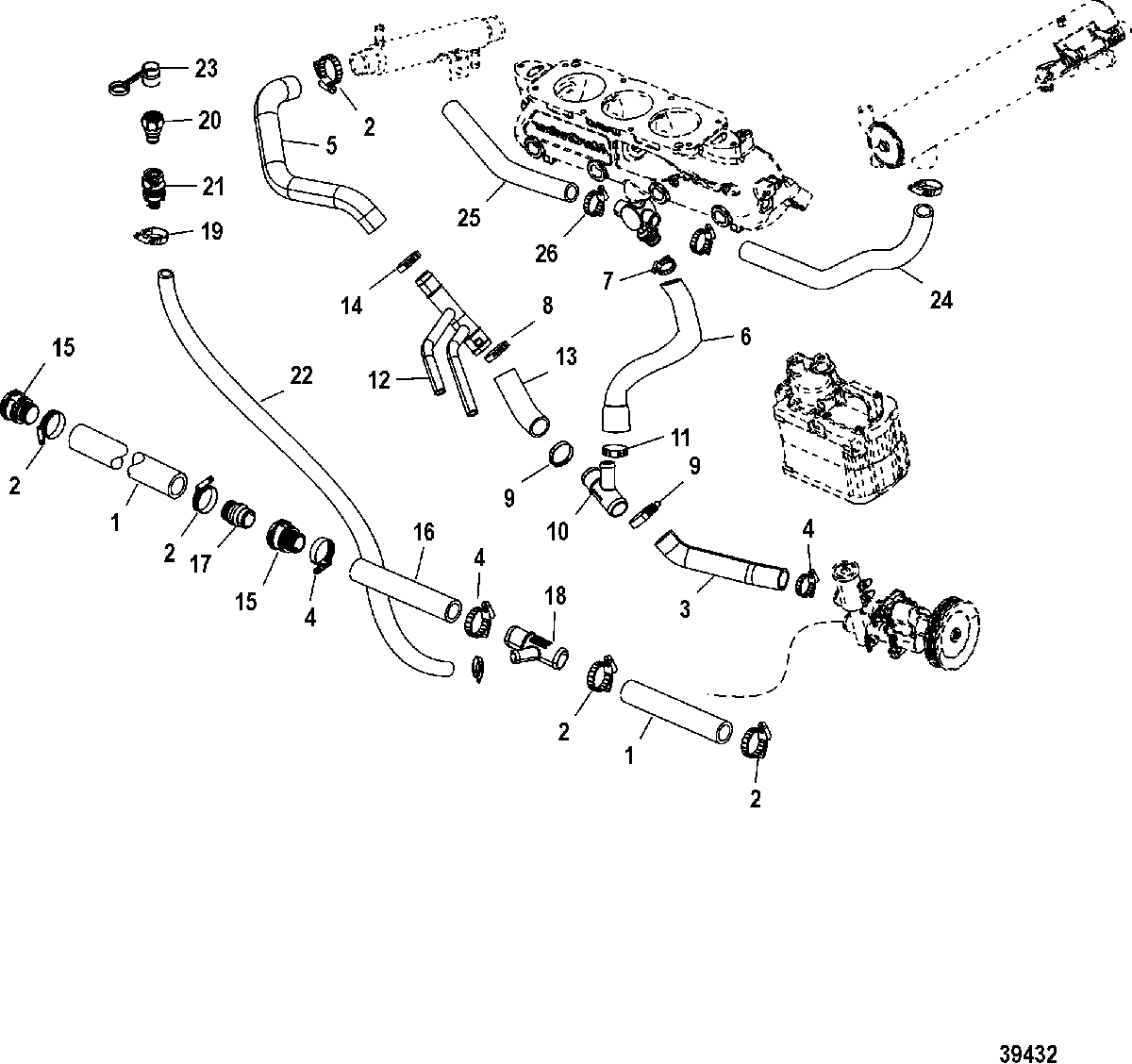

Cooling System, Raw Water, Starboard (SN 1A349420 and Above) для Mercruiser - 496 MAG EC (Base Model) 1A066166 THRU 1A350440

  • №
    Артикул
    Название
  • 1
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 2
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 3
    32-8M2004535 HOSE, Sea Water Pump to Fitting
    HOSE, Sea Water Pump to Fitting
  • 4
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 5
    32-8M2021655 HOSE, Water Orifice to Power Steering Cooler
    HOSE, Water Orifice to Power Steering Cooler
  • 6
    32-8M2004531 HOSE, Drain to Y-Fitting
    HOSE, Drain to Y-Fitting
  • 7
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 8
    54-815504221 CLAMP, Worm Gear (30 - 45 mm)
    CLAMP, Worm Gear (30 - 45 mm)
  • 9
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 10
    22-8M2008928 FITTING
    FITTING
  • 11
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
  • 12
    22-865317T02 HOSE ASSEMBLY, 2 Bib Orifice Meter
    HOSE ASSEMBLY, 2 Bib Orifice Meter
  • 13
    32-8M2004536 HOSE, Y-Fitting to Orifice Meter
    HOSE, Y-Fitting to Orifice Meter
  • 14
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 15
    22-865324 QUICK CONNECT
    QUICK CONNECT
  • 16
    32-8M0062657 HOSE, (13.00 Inches), Cut to 8 Inches
    HOSE, (13.00 Inches), Cut to 8 Inches
  • 17
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 18
    22-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
    FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
  • 19
    54-815504212 CLAMP, Worm Gear (20 - 32 mm)
    CLAMP, Worm Gear (20 - 32 mm)
  • 20
    22-857175 FITTING
    FITTING
  • 21
    22-861406 SOCKET
    SOCKET
  • 22
    32-8M0062635 HOSE, (34 Inches), Water
    HOSE, (34 Inches), Water
  • 23
    19-858240 CAP
    CAP
  • 24
    32-8M2004598 HOSE, Heat Exchanger to Poppet
    HOSE, Heat Exchanger to Poppet
  • 25
    32-8M0062669 HOSE, (36.00 Inches Bulk), Poppet to Collector
    Cut to Fit
    HOSE, (36.00 Inches Bulk), Poppet to Collector
    Cut to Fit
  • 26
    54-815504104 CLAMP, (8 - 16 mm)
    CLAMP, (8 - 16 mm)
