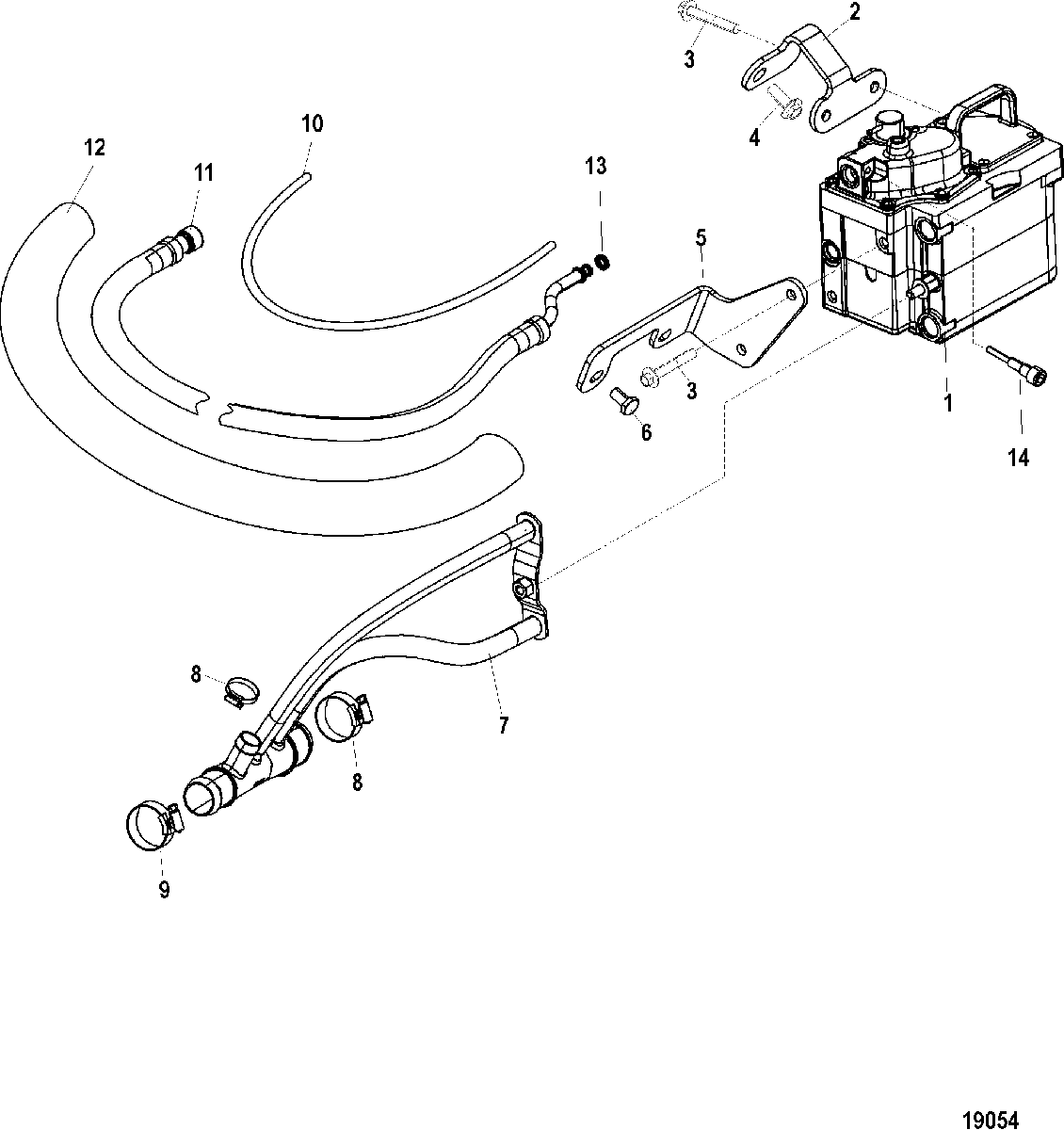

Cool Fuel System, SN 1A349419 & Below для Mercruiser - 496 MAG EC (Base Model) 1A066166 THRU 1A350440
-
№АртикулНазвание
-
1864650A05 MODULE KIT, Fuel PumpMODULE KIT, Fuel Pump
-
2864597T BRACKETBRACKET
-
310-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
410-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
5864468T BRACKETBRACKET
-
610-40001195 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
722-865208T01 HOSE ASSEMBLY, 3 Bib Orfice MeterHOSE ASSEMBLY, 3 Bib Orfice Meter
-
854-815504212 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
954-815504224 CLAMP, (32 - 50 mm)CLAMP, (32 - 50 mm)
-
1032-8M0063567 HOSE, (58.00 Inches Bulk)HOSE, (58.00 Inches Bulk)
-
1132-8M2005176 LINE, Fuel, Fuel Module to Fuel RailLINE, Fuel, Fuel Module to Fuel Rail
-
12NSS NOT SOLD SEPARATE, Insulator SleeveNOT SOLD SEPARATE, Insulator Sleeve
-
1326-863151 SEAL, Quad RingSEAL, Quad Ring
-
1410-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
