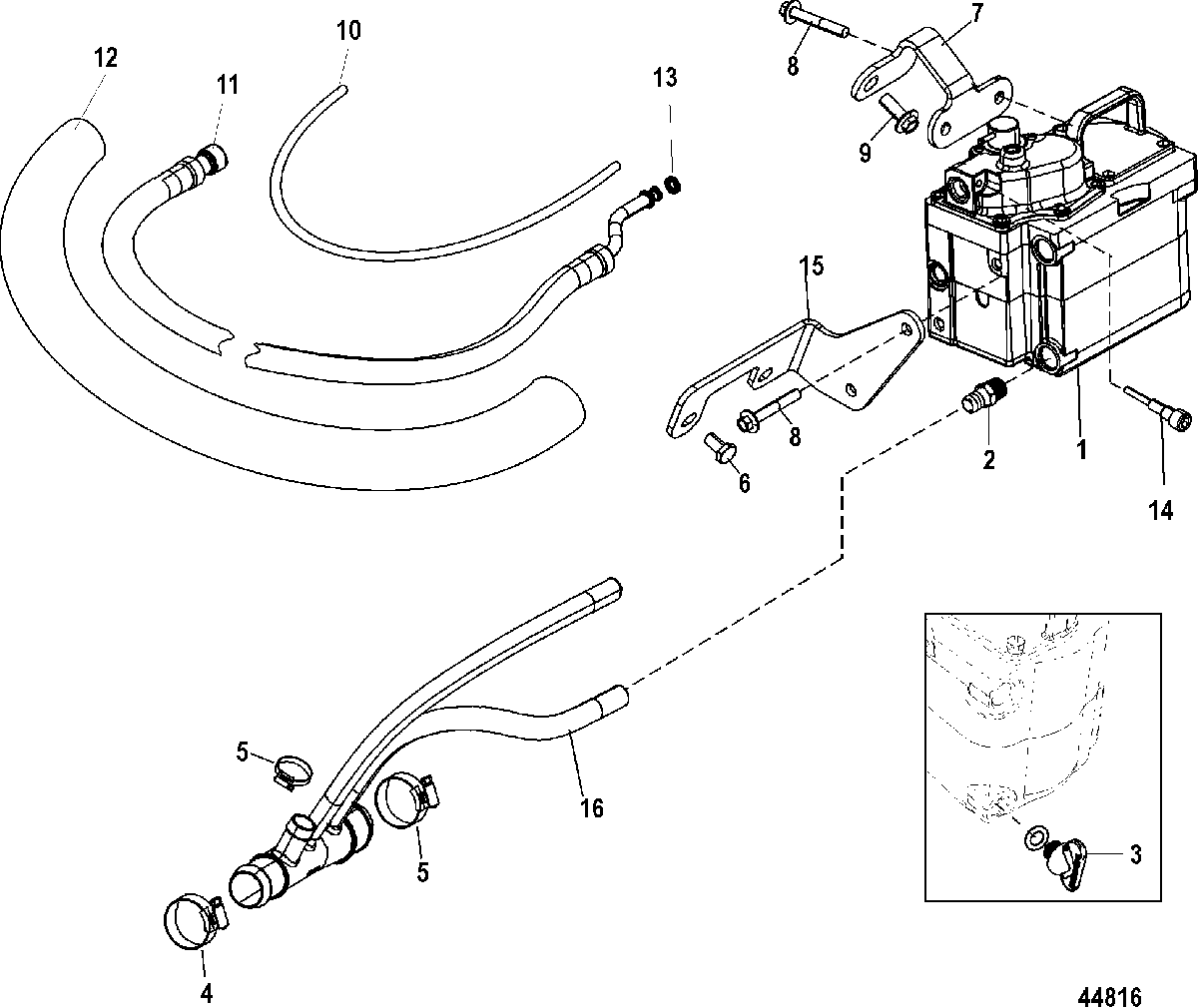

Cool Fuel System для Mercruiser - 496 MAG (Base Model) 1A350679 & Up
-
№АртикулНазвание
-
18M0047215 MODULE KIT, Fuel Pump, CompleteMODULE KIT, Fuel Pump, Complete
-
18M0047215 MODULE KIT, Fuel Pump, Complete, With Drain PortMODULE KIT, Fuel Pump, Complete, With Drain Port
-
222-8M2010476 FITTING, (3/8-18)FITTING, (3/8-18)
-
322-8M0119211 PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port OnlyPLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only
-
454-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
554-815504206 CLAMP, Worm GearCLAMP, Worm Gear
-
610-40001195 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
7864597T BRACKETBRACKET
-
810-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
910-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
1032-8M0063567 HOSE, (58.00 Inches Bulk)HOSE, (58.00 Inches Bulk)
-
1132-8M2005176 LINE, Fuel, Fuel Module to Fuel RailLINE, Fuel, Fuel Module to Fuel Rail
-
12NSS NOT SOLD SEPARATE, Insulator SleeveNOT SOLD SEPARATE, Insulator Sleeve
-
1326-863151 SEAL, Quad RingSEAL, Quad Ring
-
1410-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
-
15864468T BRACKETBRACKET
-
1622-865208T02 HOSE ASSEMBLY, 3 Bib Orifice MeterHOSE ASSEMBLY, 3 Bib Orifice Meter
