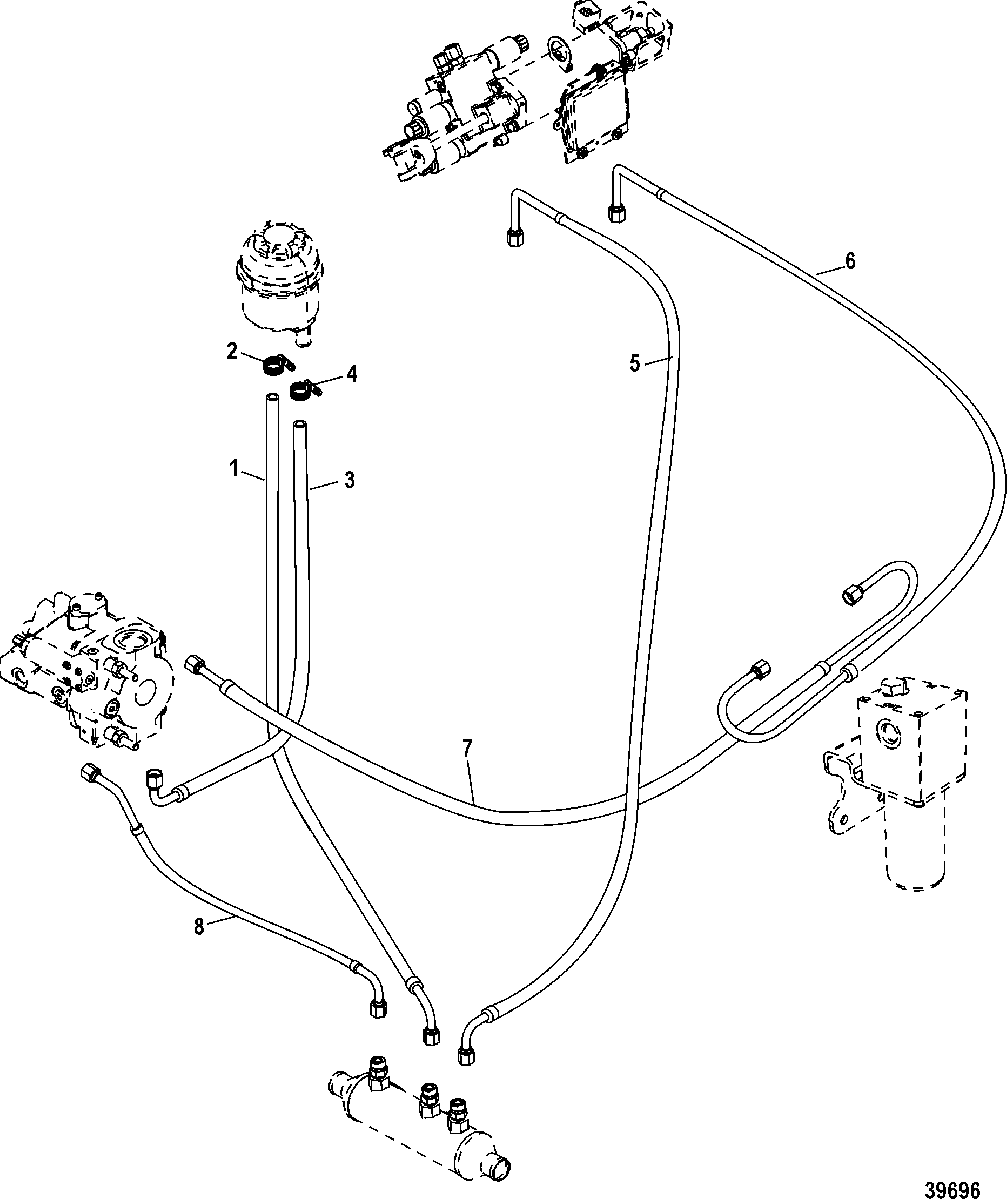

AXIUS Steering, Hoses (High Pressure), Gen I для Mercruiser - 496 MAG (Base Model) 1A350679 & Up

  • №
    Артикул
    Название
  • 1
    32-8M2006304 HOSE, Reservoir to Cooler
    HOSE, Reservoir to Cooler
  • 2
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 3
    32-8M2012143 HOSE, Reservoir to Pump
    HOSE, Reservoir to Pump
  • 4
    54-815504210 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 5
    32-8M2016700 HOSE, Cylinder to Cooler
    (Refer to Service Bulletin SMC-09-06)
    HOSE, Cylinder to Cooler
    (Refer to Service Bulletin SMC-09-06)
  • 6
    32-8M2016704 HOSE, Cylinder to Filter
    (Refer to Service Bulletin SMC-09-06)
    HOSE, Cylinder to Filter
    (Refer to Service Bulletin SMC-09-06)
  • 7
    32-8M2016702 HOSE, Pump to Filter
    HOSE, Pump to Filter
  • 8
    32-8M2006303 HOSE, Pump to Cooler
    HOSE, Pump to Cooler
  • -
    879172A19 DUST CAP KIT
    (Refer to Service Bulletin SMC-09-06)
    DUST CAP KIT
    (Refer to Service Bulletin SMC-09-06)
