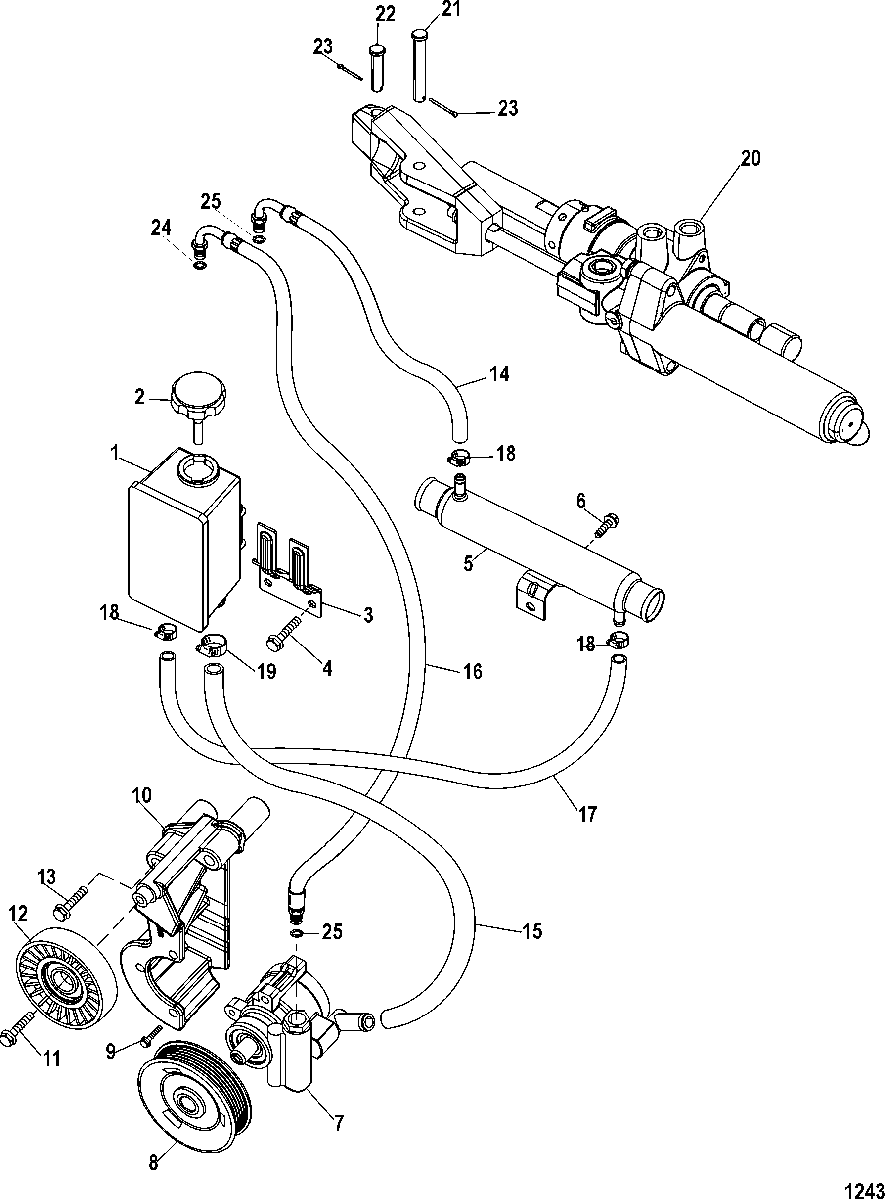

POWER STEERING для Mercruiser - 496 MAG (Base Model) 0M025000 THRU 0M687082

  • №
    Артикул
    Название
  • 1
    865264A06 RESERVOIR ASSEMBLY, Power Steering
    RESERVOIR ASSEMBLY, Power Steering
  • 2
    806216 CAP, Power Steering Reservoir Assembly
    CAP, Power Steering Reservoir Assembly
  • 3
    863119 BRACKET, Power Steering Reservoir
    BRACKET, Power Steering Reservoir
  • 4
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 5
    8M0125855 COOLER, Power Steering
    COOLER, Power Steering
  • 6
    10-816585 SCREW, (.375-18 x .875)
    Metal Cooler
    SCREW, (.375-18 x .875)
    Metal Cooler
  • 6
    10-8M2016106 SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
    SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
  • 7
    806230T PUMP, Power Steering
    PUMP, Power Steering
  • 8
    862751 PULLEY, Power Steering
    PULLEY, Power Steering
  • 9
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 10
    863856T BRACKET, Power Steering Pump
    BRACKET, Power Steering Pump
  • 11
    10-4010816 SCREW, (M10 x 16) Hex Flange - Stainless Steel
    SCREW, (M10 x 16) Hex Flange - Stainless Steel
  • 12
    8M6500024 PULLEY
    PULLEY
  • 13
    10-8M0012503 SCREW, (M10 x 100) Hex Flange - Stainless Steel
    SCREW, (M10 x 100) Hex Flange - Stainless Steel
  • 14
    32-8062215 HOSE (Cylinder to Cooler)
    HOSE (Cylinder to Cooler)
  • 15
    32-864229 HOSE (Pump to Reservoir)
    HOSE (Pump to Reservoir)
  • 16
    32-86131720 HOSE (Pump to Cylinder)
    HOSE (Pump to Cylinder)
  • 17
    32-8M0062341 HOSE, (53.00 Inches Bulk) (Reservoir to Cooler)
    (Cut to 48 In.)
    HOSE, (53.00 Inches Bulk) (Reservoir to Cooler)
    (Cut to 48 In.)
  • 18
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
  • 19
    54-815504210 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 20
    8M0063382 ACTUATOR ASSEMBLY, Power Steering
    ACTUATOR ASSEMBLY, Power Steering
  • 21
    17-15878 PIN, Clevis
    (Long)
    PIN, Clevis
    (Long)
  • 22
    17-16419 PIN, Clevis
    (Short)
    PIN, Clevis
    (Short)
  • 23
    18-46950 COTTER PIN, Cotter
    COTTER PIN, Cotter
  • 24
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 25
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • NS
    19-8M0074363 COVER, Hose Clamp End
    COVER, Hose Clamp End
