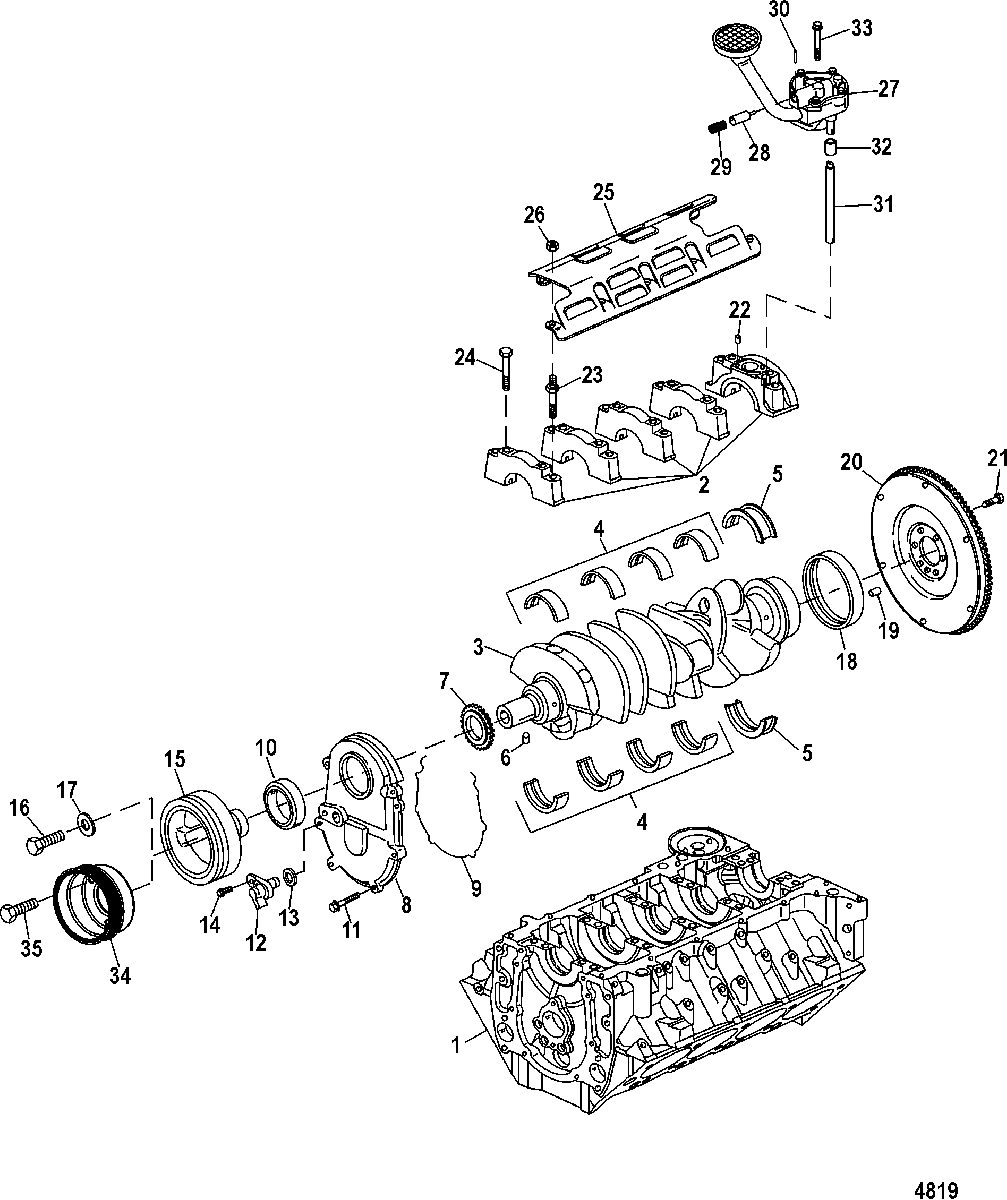

BLOCK-CRANKSHAFT, OIL PUMP, AND FRONT COVER для Mercruiser - 496 MAG (Base Model) 0M025000 THRU 0M687082

№

Артикул

Название
-

8M0086000 LONG BLOCK
(Base) SN# 0M376087 & Below

LONG BLOCK
(Base) SN# 0M376087 & Below
-

8M0086000 LONG BLOCK
(Base) SN# 0M376088 THRU 0M672040

LONG BLOCK
(Base) SN# 0M376088 THRU 0M672040
-

8M0086000 LONG BLOCK
(Base)(GM Code 4XW) SN# 0M672041 & Up

LONG BLOCK
(Base)(GM Code 4XW) SN# 0M672041 & Up
-

8M0086001 LONG BLOCK
(H.O.) SN# 0M376090 & Below

LONG BLOCK
(H.O.) SN# 0M376090 & Below
-

8M0086001 LONG BLOCK
(H.O.) SN# 0M376091 THRU 0M667237

LONG BLOCK
(H.O.) SN# 0M376091 THRU 0M667237
-

8M0086001 LONG BLOCK
(H.O.)(GM Code 4XA) SN# 0M667238 & Up

LONG BLOCK
(H.O.)(GM Code 4XA) SN# 0M667238 & Up
1

NSS NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly)

NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly)
2

NSS NOT SOLD SEPARATE, CAP-Crankshaft Bearing

NOT SOLD SEPARATE, CAP-Crankshaft Bearing
3

400-8M0084521 CRANKSHAFT
(Base)

CRANKSHAFT
(Base)
3

400-8M0084521 CRANKSHAFT
(H.O.)(GM Block Code T10156XA )

CRANKSHAFT
(H.O.)(GM Block Code T10156XA )
3

400-8M0084521 CRANKSHAFT
(H.O.)(GM Block Code T10163XA)

CRANKSHAFT
(H.O.)(GM Block Code T10163XA)
4

23-884702 BEARING KIT, Crankshaft

BEARING KIT, Crankshaft
5

23-881607001 BEARING KIT, Crankshaft Main Thrust

BEARING KIT, Crankshaft Main Thrust
6

17-881605 PIN, Balancer Locating

PIN, Balancer Locating
7

43-881655 SPROCKET, Crankshaft

SPROCKET, Crankshaft
8

881656 COVER, Front
SN# 0M667237 & Below

COVER, Front
SN# 0M667237 & Below
8

892616001 COVER, Front
(Base)(Engine Block Code 4XW) SN# 0M672041 & Up

COVER, Front
(Base)(Engine Block Code 4XW) SN# 0M672041 & Up
8

892616001 COVER, Front
(H.O.)(Engine Block Code 4XA) SN# 0M667238 & Up

COVER, Front
(H.O.)(Engine Block Code 4XA) SN# 0M667238 & Up
9

27-881604 GASKET, Front Cover

GASKET, Front Cover
10

26-881613001 SEAL, Crankshaft front Oil

SEAL, Crankshaft front Oil
11

10-8M0069806 SCREW, (M6 x 30)

SCREW, (M6 x 30)
12

881666 SENSOR, Camshaft Position
(Engine Block Code 1XA, 1XW)

SENSOR, Camshaft Position
(Engine Block Code 1XA, 1XW)
12

881666 SENSOR, Camshaft Position
(Engine Block Code 2XA, 2XW, 3XA, 3XW)

SENSOR, Camshaft Position
(Engine Block Code 2XA, 2XW, 3XA, 3XW)
12

892615002 SENSOR, Camshaft Position
(Base)(Engine Block Code 4XW) SN# 0M672041 & Up

SENSOR, Camshaft Position
(Base)(Engine Block Code 4XW) SN# 0M672041 & Up
12

892615002 SENSOR, Camshaft Position
(H.O.)(Engine Block Code 4XA) SN# 0M667238 & Up

SENSOR, Camshaft Position
(H.O.)(Engine Block Code 4XA) SN# 0M667238 & Up
13

NSS NOT SOLD SEPARATE, SEAL-Camshaft Position Sensor

NOT SOLD SEPARATE, SEAL-Camshaft Position Sensor
14

10-883923 SCREW, (M6 x 20)

SCREW, (M6 x 20)
15

891769 BALANCER, Crankshaft
(Base)

BALANCER, Crankshaft
(Base)
15

891769 BALANCER, Crankshaft
(H.O.)

BALANCER, Crankshaft
(H.O.)
16

10-881587 SCREW, (M16 x 1.5)

SCREW, (M16 x 1.5)
17

12-881614 WASHER

WASHER
18

26-881608001 SEAL, Crankshaft Rear Oil

SEAL, Crankshaft Rear Oil
19

17-881609 PIN, Flywheel Locating

PIN, Flywheel Locating
20

222-881640T01 FLYWHEEL
(Base and H.O.)

FLYWHEEL
(Base and H.O.)
21

10-881578 BOLT

BOLT
22

17-843378 PIN, Dowel (1/4 In. Diameter), Oil Pump Locating

PIN, Dowel (1/4 In. Diameter), Oil Pump Locating
23

16-881615 STUD, Crankshaft Bearing Cap

STUD, Crankshaft Bearing Cap
24

10-881580 SCREW, (M12 x 89)

SCREW, (M12 x 89)
25

883236001 DEFLECTOR, Oil

DEFLECTOR, Oil
26

11-881579001 NUT

NUT
27

8M0069808 PUMP, With Screen, Oil

PUMP, With Screen, Oil
28

17-881611 PIN, Oil Pump

PIN, Oil Pump
29

24-881610 SPRING, Oil Pump

SPRING, Oil Pump
30

8M0069808 VALVE, Pressure Relief

VALVE, Pressure Relief
31

8M0046892 SHAFT AND RETAINER, Oil Pump Drive

SHAFT AND RETAINER, Oil Pump Drive
32

23-36183 RETAINER, Oil Pump Drive

RETAINER, Oil Pump Drive
33

10-881585 SCREW, (M10 x 60)

SCREW, (M10 x 60)
34

862349 PULLEY, Crankshaft

PULLEY, Crankshaft
35

10-4009025 SCREW, (M10 x 25) Stainless Steel

SCREW, (M10 x 25) Stainless Steel
