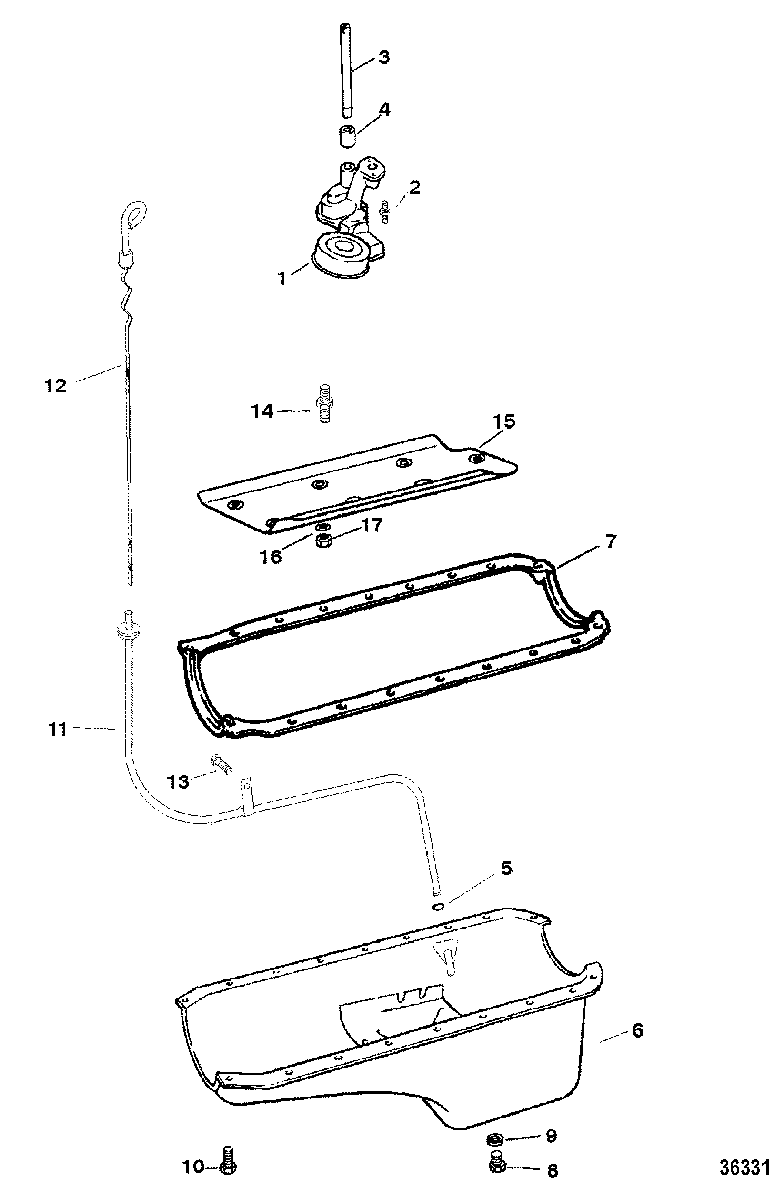

OIL PAN AND OIL PUMP для Mercruiser - 454 MAG MPI BRAVO (GEN VI) GM 454 V-8 1998 0L010029 THRU 0L058399

  • №
    Артикул
    Название
  • 1
    827643 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    16-845599 STUD
    STUD
  • 3
    8M0046892 SHAFT AND RETAINER
    SHAFT AND RETAINER
  • 4
    23-36183 RETAINER
    RETAINER
  • 5
    25-62704 O-RING, (.362 x .103)
    O-RING, (.362 x .103)
  • 6
    845668T PAN ASSEMBLY, Oil
    PAN ASSEMBLY, Oil
  • 7
    27-845628 GASKET
    GASKET
  • 8
    10-809911001 SCREW, Oil Drain (M12 x 1.75)
    SCREW, Oil Drain (M12 x 1.75)
  • 9
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 10
    10-841389 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 11
    818631A6 TUBE ASSEMBLY, Dipstick
    TUBE ASSEMBLY, Dipstick
  • 12
    861942T9 DIPSTICK, Oil Level
    DIPSTICK, Oil Level
  • 13
    10-8M0040582 SCREW
    SCREW
  • 14
    16-843375 STUD, (.375-16/.500-12 x 5.500)
    STUD, (.375-16/.500-12 x 5.500)
  • 15
    843945T BAFFLE, Oil Deflector
    BAFFLE, Oil Deflector
  • 16
    12-49112 WASHER
    WASHER
  • 17
    11-845602 NUT, (.375-16)
    NUT, (.375-16)
  • -
    27-811572A94 GASKET SET, Overhaul
    (454)
    GASKET SET, Overhaul
    (454)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502)
    GASKET SET, Overhaul
    (502)
