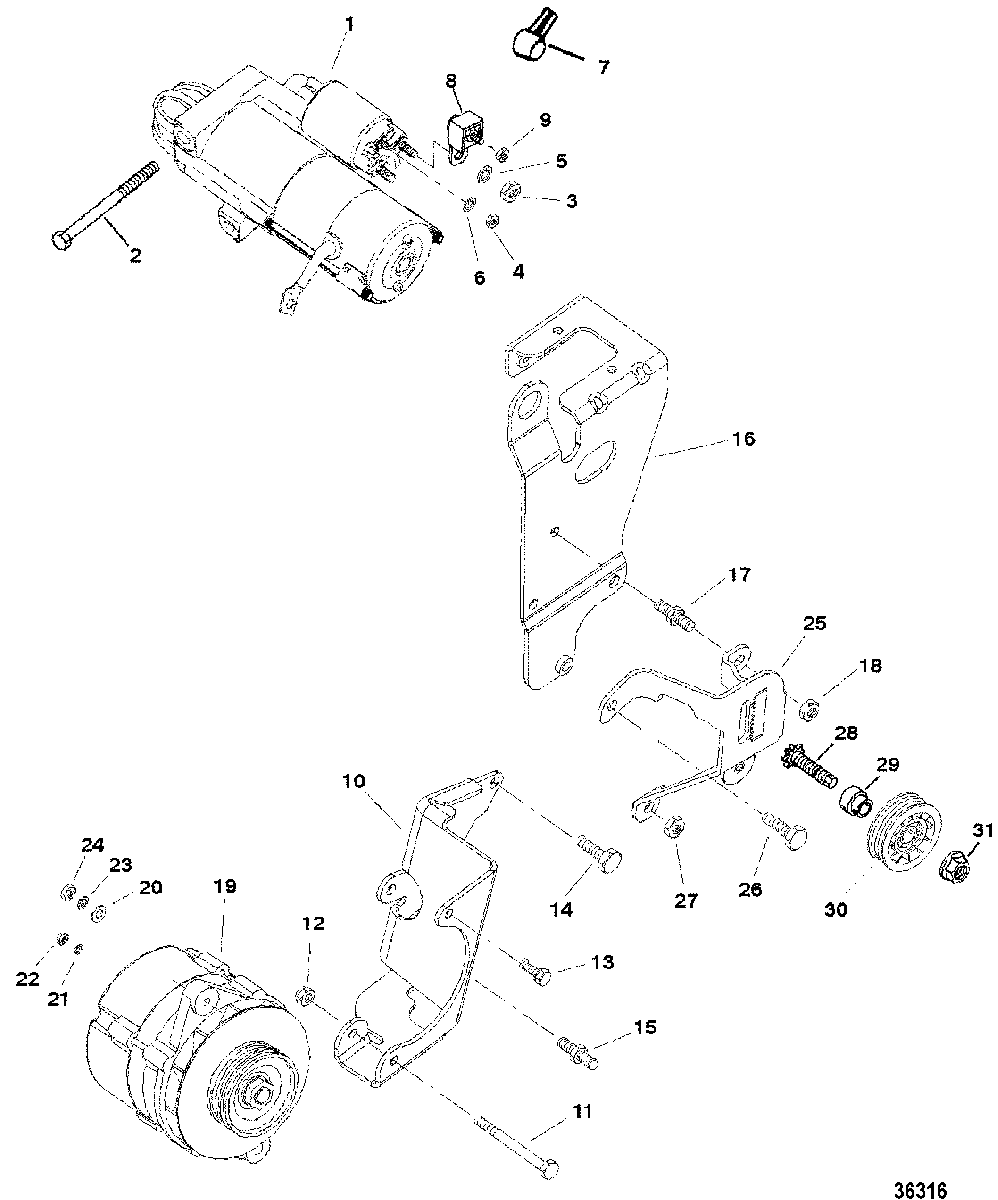

ALTERNATOR AND STARTER(MANDO) для Mercruiser - 454 MAG MPI BRAVO (GEN VI) GM 454 V-8 1998 0L010029 THRU 0L058399

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR (PG260)" FOR BREAKDOWN)
    STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR (PG260)" FOR BREAKDOWN)
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 3
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 4
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 5
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 7
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 8
    88-79023A91 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 9
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 10
    861047 BRACKET
    BRACKET
  • 11
    10-56743 SCREW, (.375-24 x 3.125)
    SCREW, (.375-24 x 3.125)
  • 12
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 13
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 14
    10-17965 SCREW, (.437-14 x .70)
    SCREW, (.437-14 x .70)
  • 15
    16-806591 STUD, (7/16-14)
    STUD, (7/16-14)
  • 16
    861046 BRACKET, Power Assisted Steering/Lifting Eye
    BRACKET, Power Assisted Steering/Lifting Eye
  • 17
    16-861174 STUD (7/16-14 X 1 IN.)
    STUD (7/16-14 X 1 IN.)
  • 18
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 19
    807653T ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
    ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
  • 20
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 21
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 22
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 23
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 24
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 25
    861045 BRACKET, Idler
    BRACKET, Idler
  • 26
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 27
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 28
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 29
    865193 BUSHING
    BUSHING
  • 30
    807757T PULLEY ASSEMBLY, Idler - Black
    PULLEY ASSEMBLY, Idler - Black
  • 31
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
